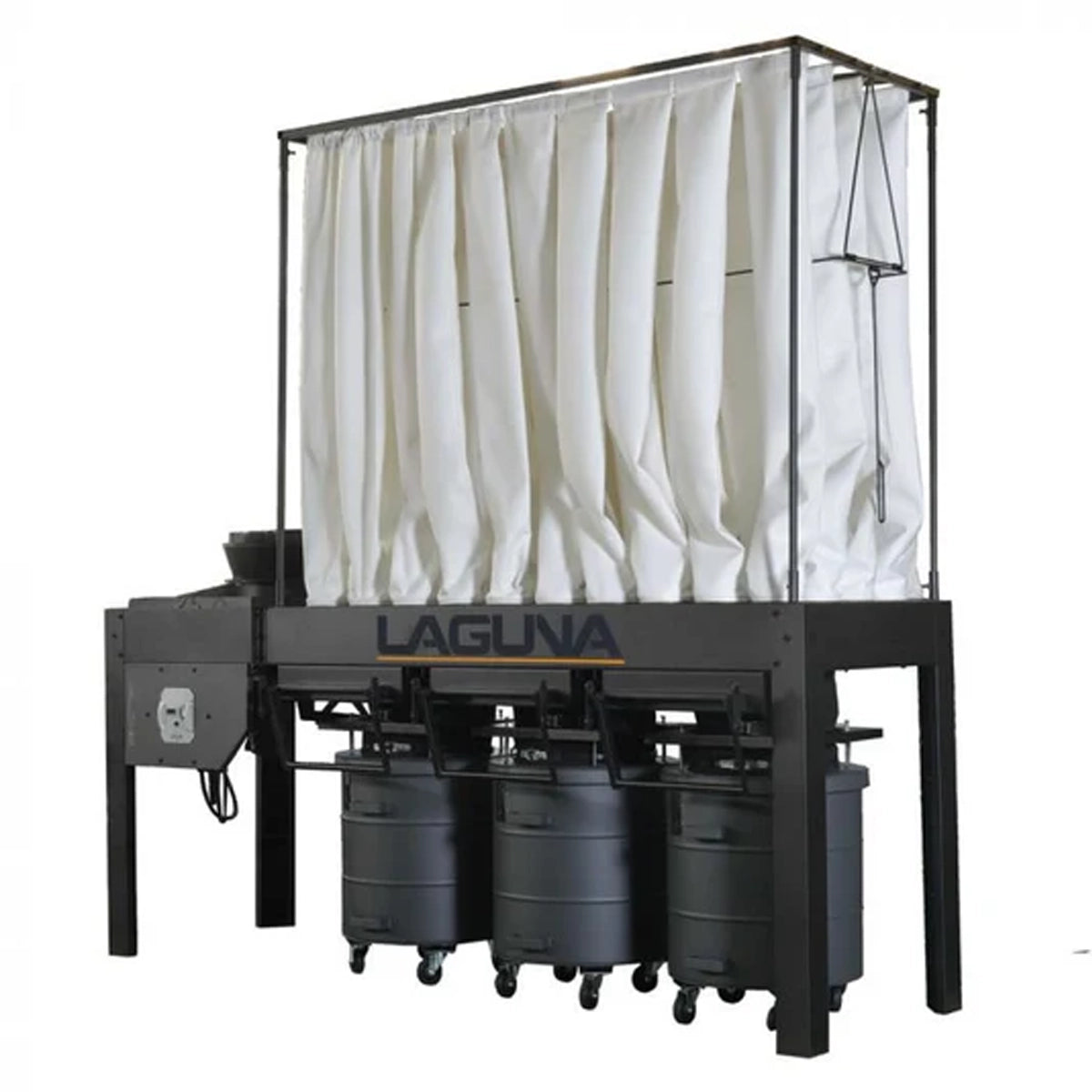

I|Flux 10 Elite Industrial Dust Collector
I|Flux 10 Elite Industrial Dust Collector
SKU: SKU:MDCIF102203
Overview: The I|Flux:10 Elite has solved this issue by using an appropriate filter arrangement with 409 square feet of surface area – double that of a typical 10HP collector. To...Full description below
Special Order Item
Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
Share
- Overview:
- Specifications
The I|Flux:10 Elite has solved this issue by using an appropriate filter arrangement with 409 square feet of surface area – double that of a typical 10HP collector. To do this, we used a smaller diameter bag and a lot more of them. This arrangement maximizes the amount of surface area possible which is vital to adequate airflow through the collector. Keeping these filters clean was addressed in the design. The positive pressure chamber pushes the air through the filters as the dust falls into the EZ Lift waste bins. As the dust cakes on, it will fall into the bin. A shaking mechanism has been added to help release the caked dust. The I|Flux Elite series has been tested in the assembly line, and it is ready for all fine dust applications.
Features:
- Phase: 3
- Motor HP: 10 HP
- Amps: 24.8 Amps
- Voltage: 220V
- RPM: 1720
- Hertz: 60
| Motor: | 10HP, 220V, 60Hz, 24.8A 3-Phase |
|---|---|
| R.P.M. | 1720 |
| Air Volume | 5000 CFM @ 6″wc |
| Waste Bin | EZ-Lift Metal Bin 64 Gal. x 3 |
| Filter Area | 409 ft² |
| Inlet Diameters | 15" |
| Filter Bag (L x D x H) | 40 x 168 x 1800mm |
| Filter Type | Polyester |
| Filter Cleaning | Manual Shaker |
| Machine Weight | 1069 lbs (485 kgs) |
| Shipping Weight | 1113 lbs |
| Shipping Dimensions (L x W x H) | 75″ x 39″ x 80″ |
