I|Flux 5 Elite Industrial Dust Collector
I|Flux 5 Elite Industrial Dust Collector
SKU: SKU:MDCIF52203
Overview: The I|Flux: 5 Elite uses an appropriate filter arrangement with 286 square feet of surface area – double that of a typical 5HP collector. To do this, we used...Full description below
Special Order Item
Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
Share
- Overview:
- Specifications

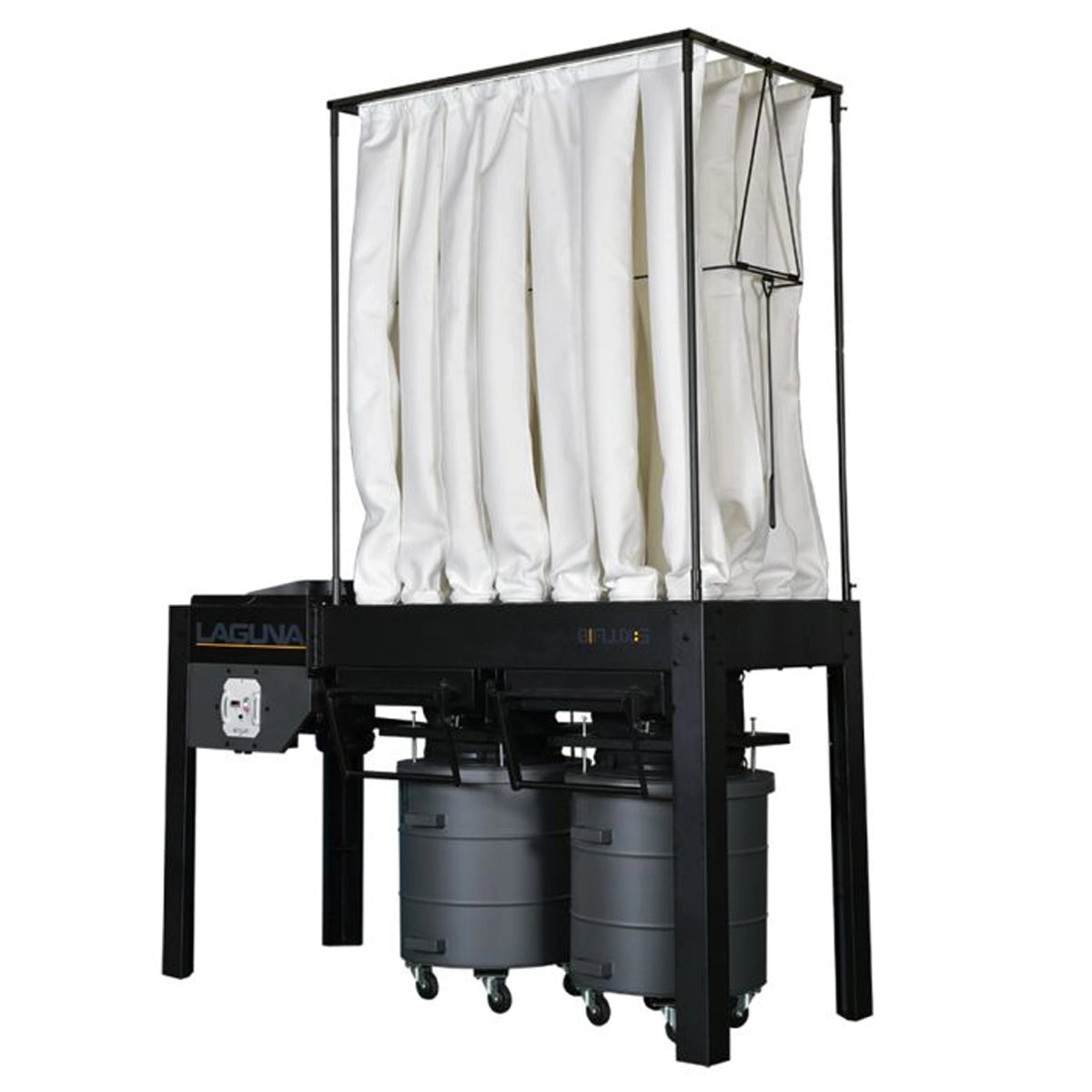

The I|Flux: 5 Elite uses an appropriate filter arrangement with 286 square feet of surface area – double that of a typical 5HP collector. To do this, we used a smaller diameter bag and a lot more of them. This arrangement maximizes the amount of surface area possible which is vital to adequate airflow through the collector. Keeping these filters clean was addressed in the design.
Features:
- Phase: 3
- Motor HP: 5 HP
- Amps: 14.4 Amps
- Voltage: 220V
- RPM: 1720
- Hertz: 60
| Motor: | 10HP, 220V, 60Hz, 24.8A 3-Phase |
|---|---|
| R.P.M. | 1720 |
| Air Volume | 3991CFM @ 5″wc |
| Waste Bin | EZ Lift Metal Bin 64gal x 2 |
| Filter Area | 286.3 ft2 |
| Inlet Diameters | 12" |
| Filter Bag (L x D x H) | 28 x D168mm x H1800mm |
| Filter Type | Polyester |
| Filter Cleaning | Manual Shaker |
| Machine Weight | 606.3 lbs (275 kgs) |
| Shipping Weight | 723 lbs (328 kgs) |
| Shipping Dimensions (L x W x H) | 75″ x 39″ x 80″″ |
