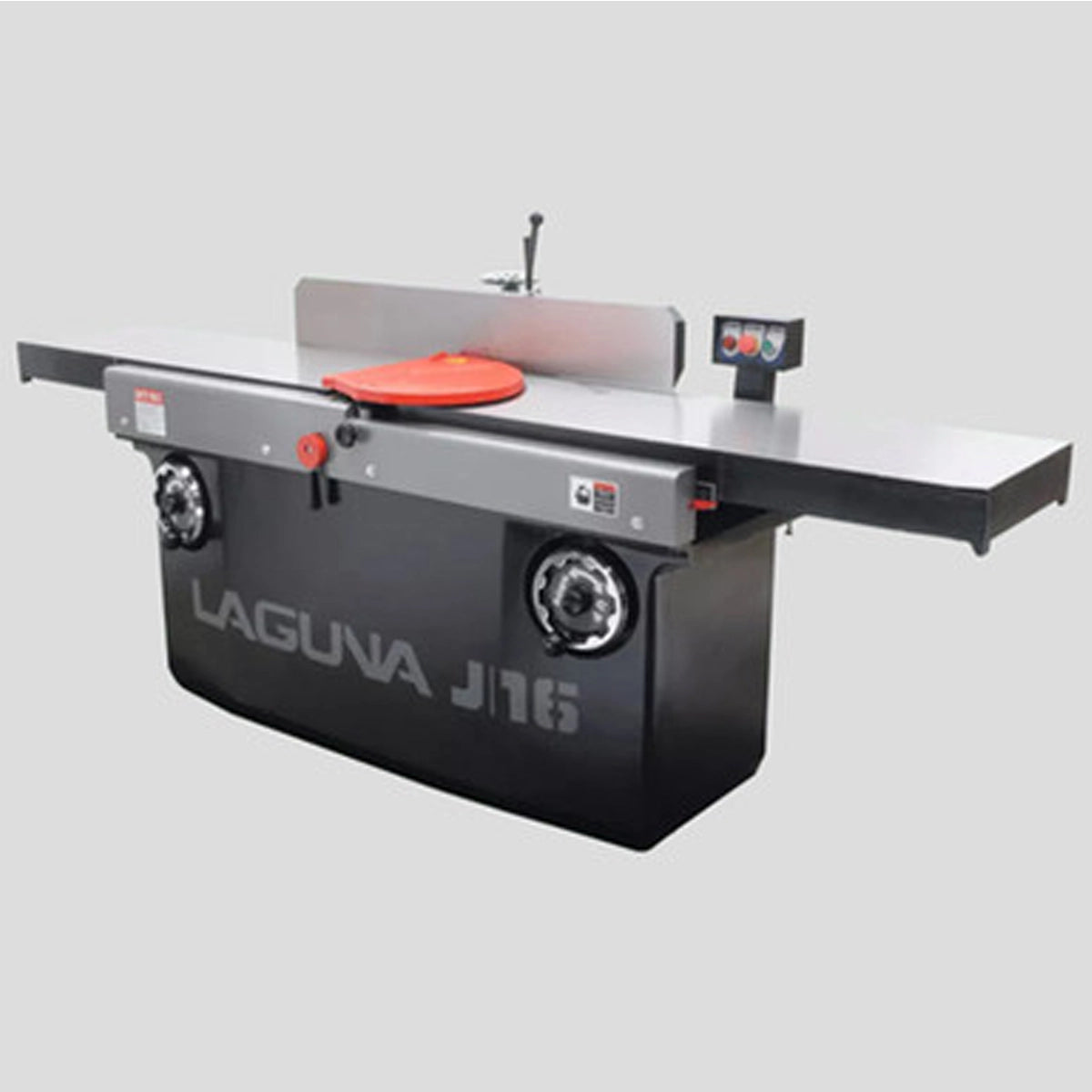

J|16 Industrial Jointer
J|16 Industrial Jointer
SKU: SKU:MJO6405-5HP-1PH-0800
Overview: The J|16 Jointer is the true heavyweight of jointers. Our 16″ version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters...Full description below
Special Order Item
Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
Share
- Overview:
- Specifications
The J|16 Jointer is the true heavyweight of jointers. Our 16″ version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements.
Features:
- Motor HP: 5 HP
- Phase: 1, 3
- 98″ Table Length
- 16″ Jointer Width
- 31-1/2″ Table Height
| Motor | 5HP: 1 Phase, 3 Phase |
|---|---|
| Table Area (L x W) | 112″ x 16″ |
| Table Height | 31-½” |
| Fence Angle | 0-45° |
| Cutterhead | 6 Row |
| Knives | 144 qty |
| Cutterhead Speed | 5000 RPM |
| Machine Weight | 1606 lbs. |
| Shipping Weight | 1760 lbs. |
MJO6405-5HP-1PH-0800, MJO64055HP1PH0800, MJO6405-5HP-3PH-0800, MJO64055HP3PH0800
