King Industrial 17" Long Stroke Drill Press

King Industrial

17" Long Stroke Drill Press


Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.



Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

King Industrial© 17" Long Stroke Drill Press


  • Powerful 1 HP TEFC motor
  • Long 6? stroke allows this drill press to drill deeper than most

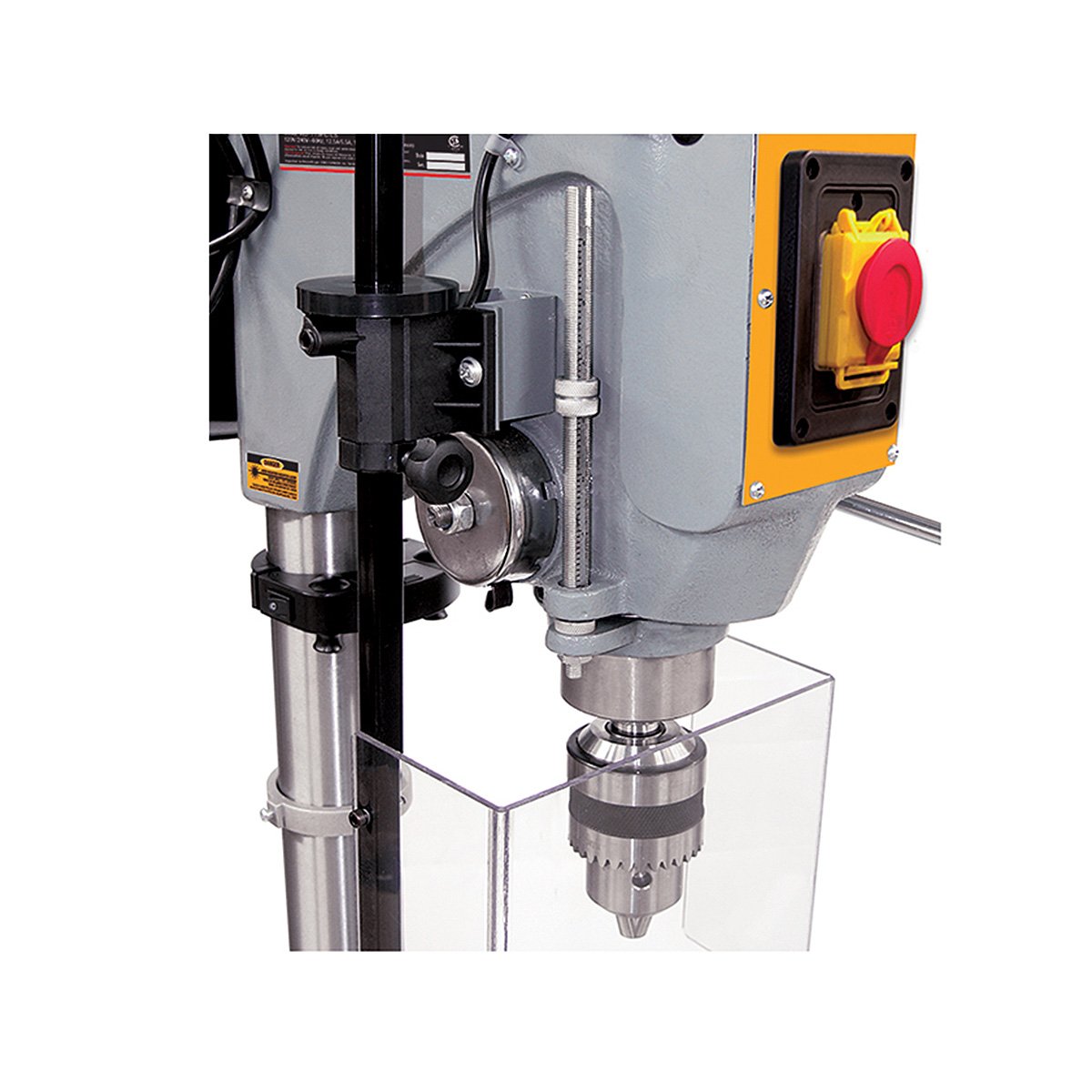

  • Safety guard with limit switch protection

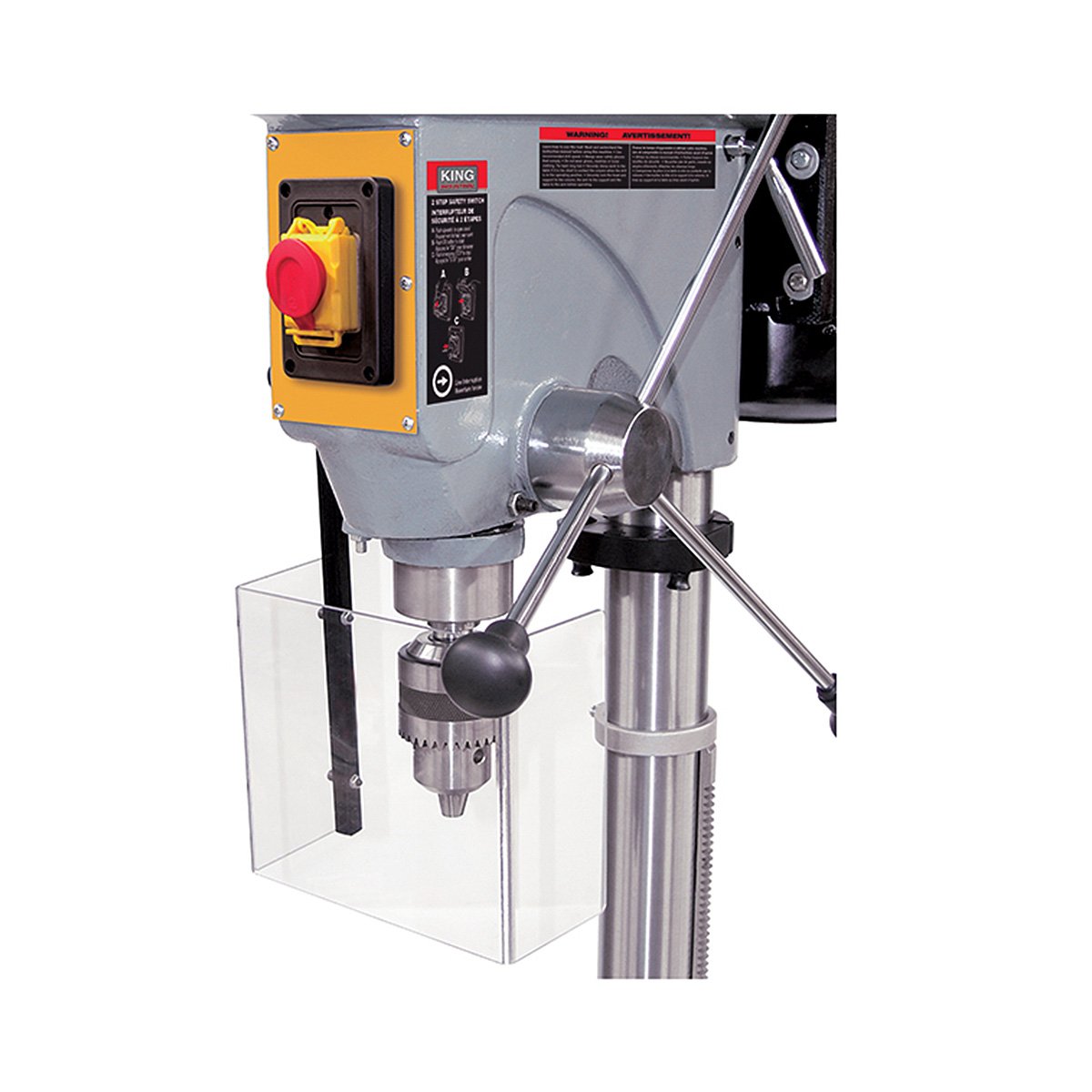

  • 2 Step activation safety switch with line voltage interruption in case of power failure

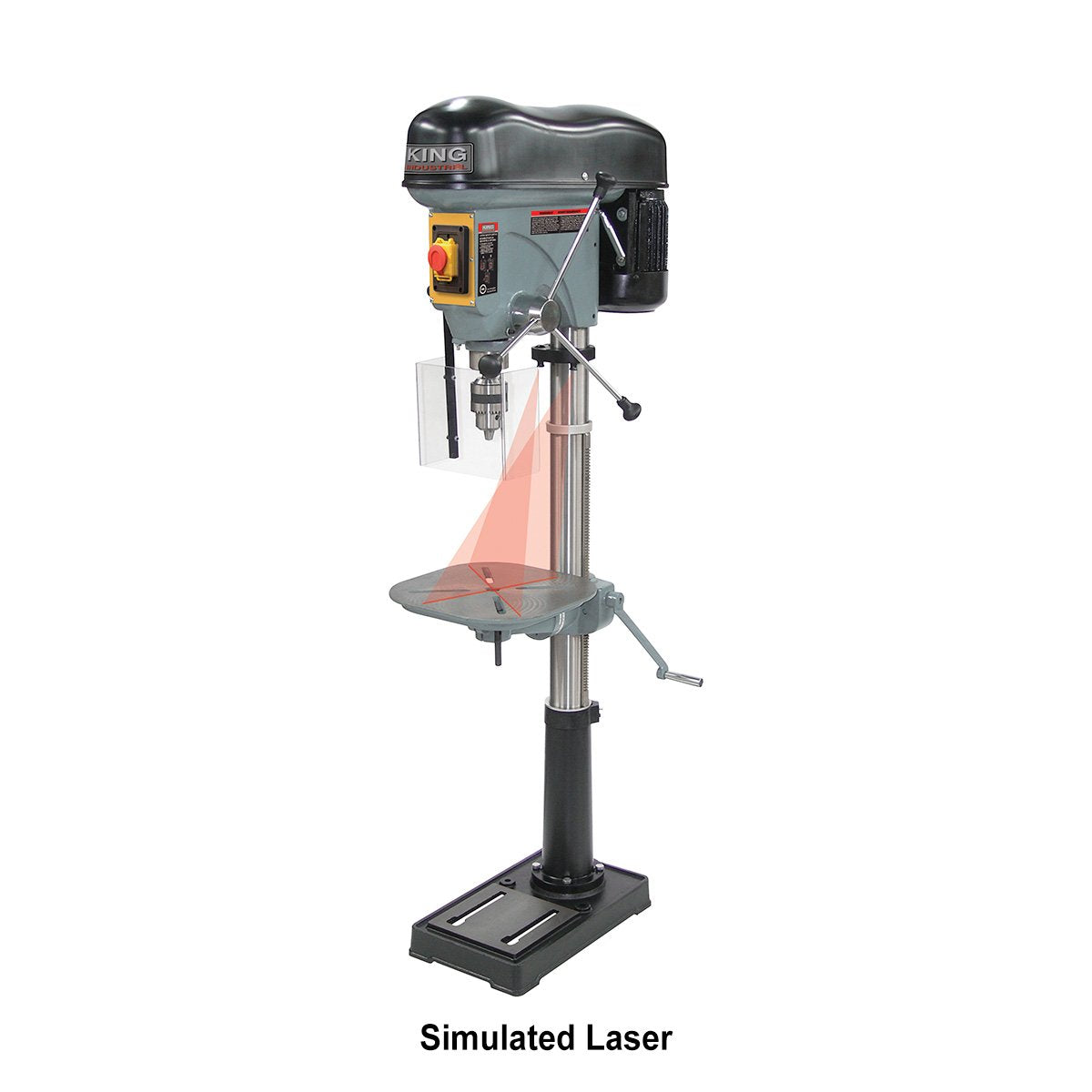

  • Dual intersecting adjustable laser guides

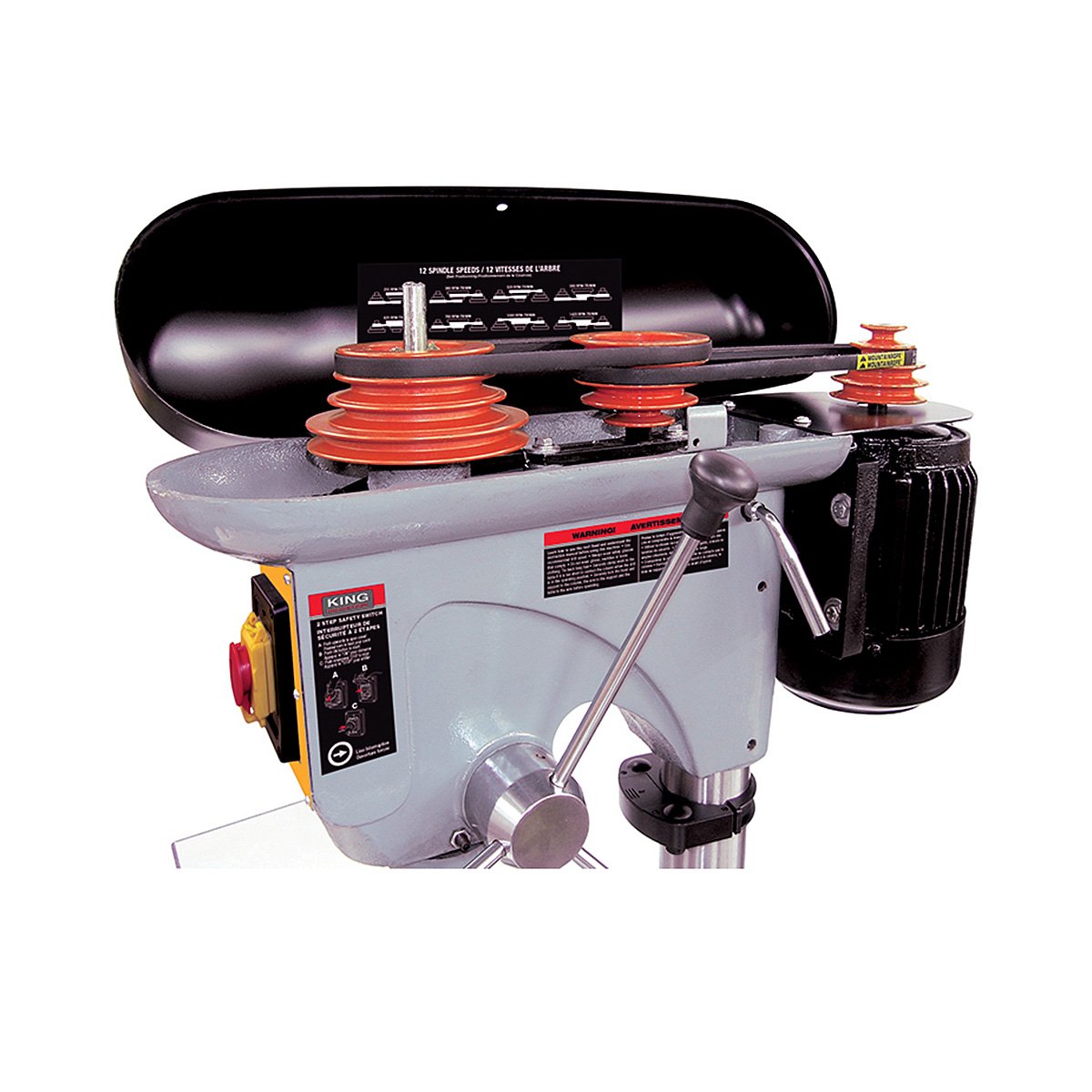

  • Cast-iron pulleys reduce vibration
  • 45ø tilting table for angular drilling
  • 12 speed (255-2750 spindle RPM)
  • Rack pivot collar allows the table to easily be swung out of the way without catching or twisting
  • Comes with 3/4? drill chuck, spring-loaded chuck key, knock-out wedge and adjustment hex. keys
Swing (In.) 17"
Chuck Size (In.) 3/4"
Maximum distance chuck to column (In.) 17"
Maximum distance chuck to table (In.) 23-3/4"
Stroke (In.) 6"
Spindle taper MT-3
Quill diameter 75mm
Speeds 12 (255-2750) RPM/tr/min
Motor 1HP, 1-Phase, 110/220V,12.5/6.25A, 60Hz
Pre-wired 110V
Assembled dimensions (L x W x H)/weight 14” x 29” x 67-1/4” / 230 lbs
Shipping dimensions (L x W x H)/weight 55-1/2” x 27-1/2” x 11” / 241 lbs
