King Industrial
12" Jointer/Planer w/Spiral Cutterhead
12" Jointer/Planer w/Spiral Cutterhead
SKU: SKU:KC-12HJPC
Regular price
$3,999.00
Regular price
Sale price
$3,999.00
Unit price
/
per
Currently Out of stock
Order Now and we will contact you with availability date
Your Credit Card will not be charged until the availability date is accepted
Couldn't load pickup availability
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

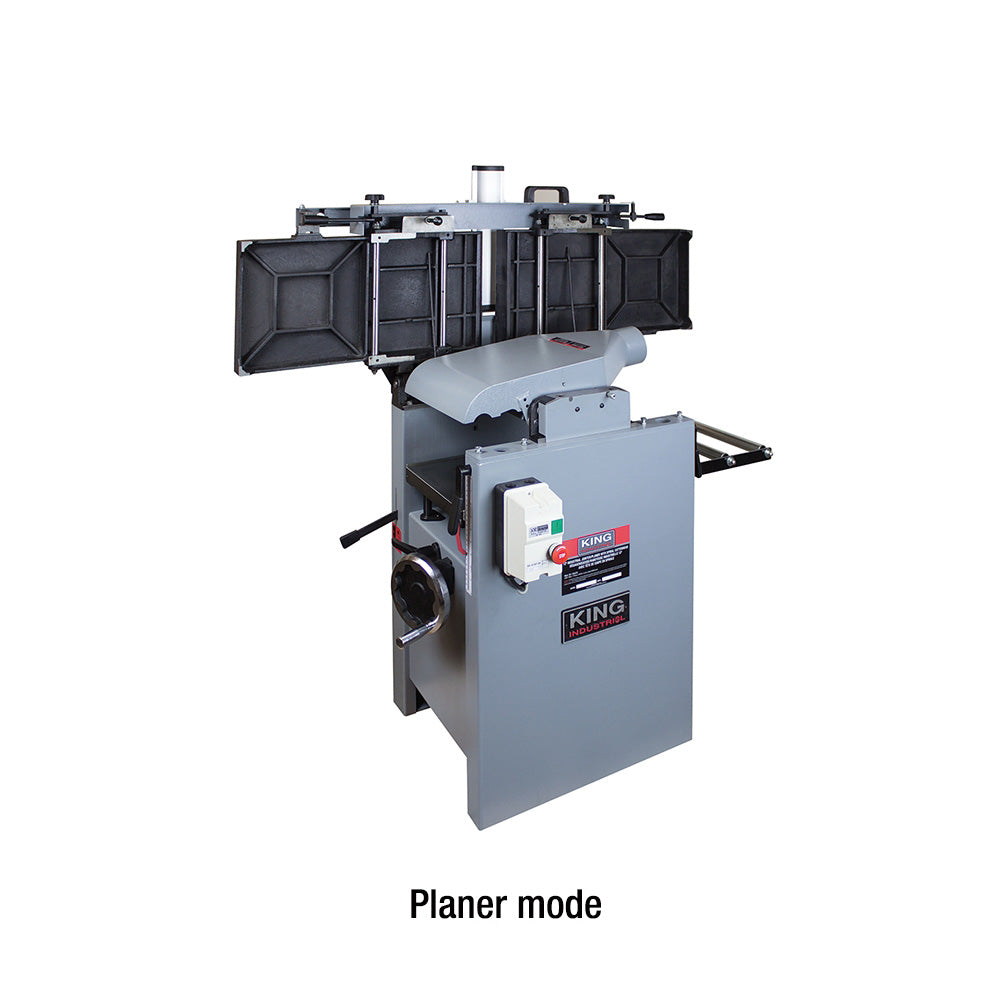

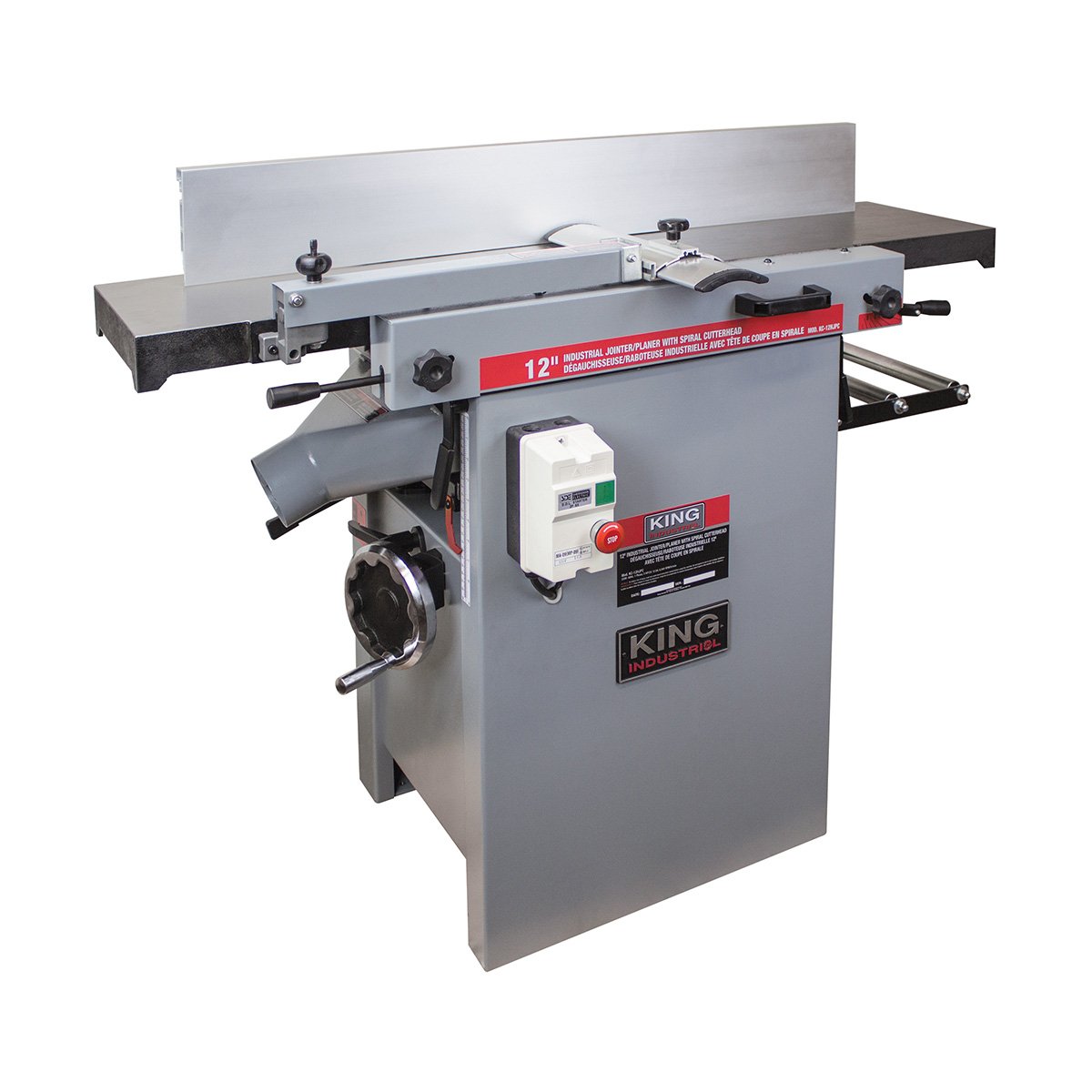

King Industrial® 12" Jointer/Planer w/Spiral Cutterhead
SKU: KC-12HJPC
- Overview
- Specifications
Overview
Features:
- Dual jointer/planer combination machine offers the capabilities of both machines without compromising your workspace
- Powerful 3 HP motor
- A spiral cutter head is 50% quieter than a conventional cutter head
- Heavy-duty design with precision cast-iron tables
- Parallelogram table adjustment system keeps the table close to cutter head for improved finish and precise depth of cut adjustments
- Large 43" x 6" aluminum extruded fence pivots 0 - 45?
- European Bridge-style cutter head guard
- 4" dust chute rotates to be used for both jointing and planing operations
- Magnetic safety switch
- Comes with 2 push blocks, 5 replacement cutter inserts, 2 T25 Torx screwdrivers, and adjustment hex keys
Specifications
Maximum Jointing/Planing Width: | 12" |
---|---|
Maximum Depth of Cut: | 1/8" |
Cutterhead Speed: | 6,500 RPM |
Cutterhead Diameter: | 2-3/4" |
Number of Cutterhead Inserts (4-sided): | 60 (15 mm x 15 mm x 2.5 mm) |
Maximum Planing Thickness: | 8-3/4" |
Planing Feed Rate: | 22 FPM |
Jointer Table Size (L x W): | 51" x 12-1/4" |
Planer Table Size: | 21-3/4" x 12-1/4" |
Motor: | 3HP, 10A, 220V, 60Hz, 1-Phase |
Assembled Dimensions: (L x W x H) | 51" x 32" x 39-1/2" |
Assembled Weight: | 465 lbs. |
Shipping Dimensions (L x W x H): | 52" x 22-1/2" x 38-1/2" |
Shipping Weight: | 540 lbs. |
