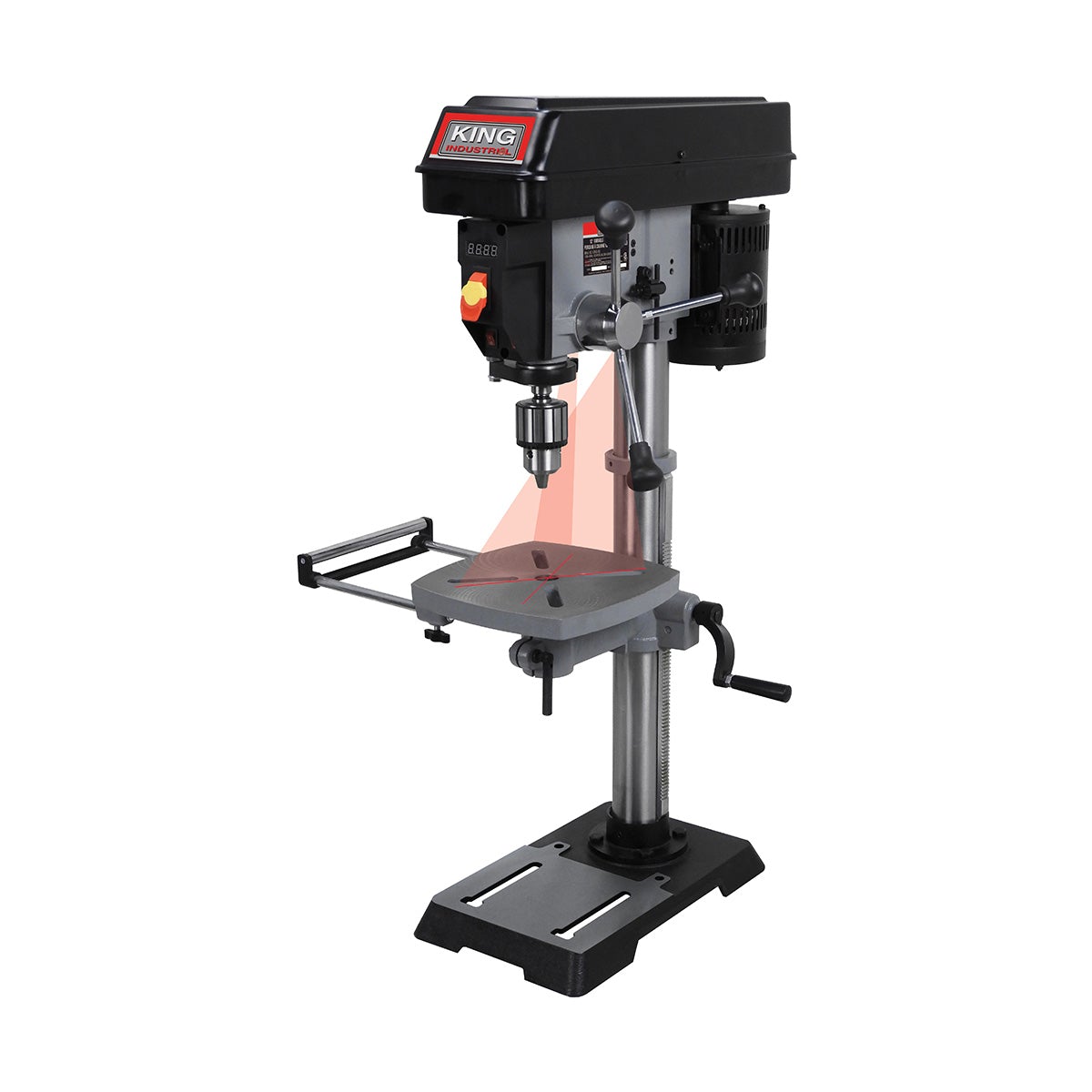

King Industrial KC-12HS-VS 12" Variable Speed Drill Press

King Industrial

12" Variable Speed Drill Press


order today only 1 left in stock


Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

King Industrial® 12" Variable Speed Drill Press



  • Powerful 1/2 HP, 5 Amp. motor
  • Mechanical variable speed system from 580 - 3,200 RPM
  • Digital readout for precise spindle speed
  • Dual intersecting adjustable laser guides
  • Accepts up to 5/8" shanked drill bits
  • Positive depth stop for quick and easy adjustment of the spindle travel
  • Worklight incorporated into head illuminates the work area for maximum visibility (LED bulb included)
  • Comes with 5/8" drill chuck, chuck key, on-board chuck key storage and adjustment hex. keys
Capacity: 5/8"
Chuck Size: 5/8"
Swing: 12"
Maximum Distance Chuck To Column: 6"
Maximum Distance Chuck To Table: 13"
Stroke: 3"
Table Size With Extension: 16-1/4" x 9-1/2"
Spindle Taper: MT #2
Variable Speeds: 580 - 3,200 RPM
Table T-Slots: 9/16"
Motor: 1/2HP, 120V, 5A, 60Hz, 1-Phase
Assembled Dimensions: 19-1/2"L x 21"W x 37-1/2"H / 82 lbs
Shipping Dimensions: 29-1/4"L x 19-3/4"W x 11-1/2"H / 87 lbs
