King Industrial
15" Planer w/ Spiral Cutterhead
15" Planer w/ Spiral Cutterhead
SKU: SKU:KC-390FX
Regular price
$3,399.00
Regular price
Sale price
$3,399.00
Unit price
/
per
Order today only 2 left
Couldn't load pickup availability
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
King Industrial® 15" Planer w/ Spiral Cutterhead
SKU: KC-390FX
- Overview
- Specifications
Overview
Features:
- Powerful 3 HP motor
- Table raises and lowers on four precision ground columns for extra stability
- A spiral cutter head is 50% quieter than a conventional cutter head
- Anti-kickback fingers in front of the infeed roller to prevent wood kickback
- Magnetic safety switch
- Stock return rollers on top of planer for multiple passes
- Extension tables provide support for longer material
- Mobile base system built into the cabinet

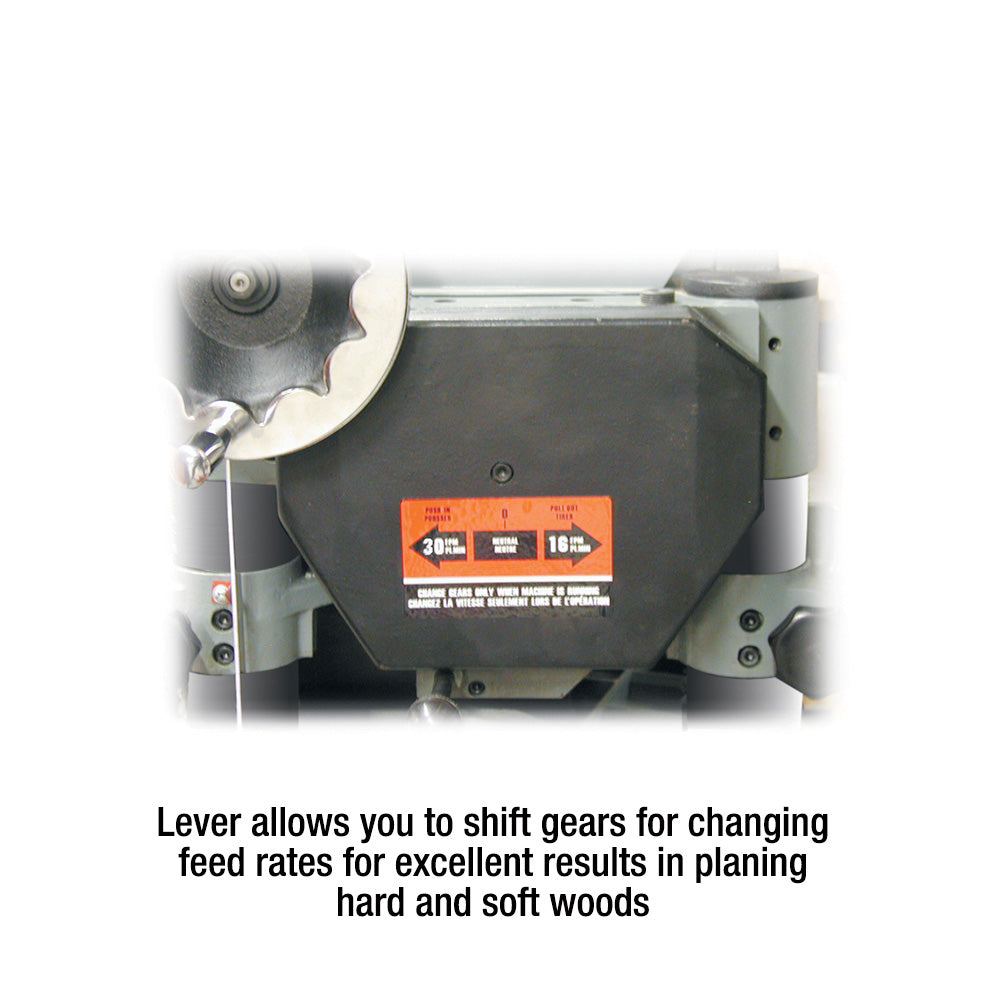

- Lever allows you to shift gears for changing feed rates for excellent results in planing hard and softwoods
- Comes complete with cabinet stand and 4" dust collector outlet
Specifications
| Maximum Planing Width: | 15" |
|---|---|
| Maximum Planing Thickness: | 8" |
| Maximum Depth of Cut: | 1/8" |
| Cutterhead Speed: | 5,000 RPM |
| Cutterhead Diameter" | 2-7/8" |
| Number of Cutterhead Inserts (4-sided): | 64 (14 mm x 14 mm x 2 mm) |
| Feed Rate: | 2 (16 and 30) FPM |
| Cuts Per Inch: | 78 and 63 (depending on feed rate) |
| Motor: | 3HP, 1A, 220V, 60Hz, 1-Phase |
| Assembled Dimensions: (L x W x H) | 32-1/2" x 42" x 45" |
| Assembled Weight: | 625 lbs. |
| Shipping Dimensions (L x W x H): | 31-1/8" x 29-1/4" x 47-1/2" |
| Shipping Weight: | 630 lbs. |
