King Industrial
48" x 16 Gauge Box and Pan Brake
48" x 16 Gauge Box and Pan Brake
SKU: SKU:KC-BP4816
King Industrial® 48" x 16 Gauge Box and Pan Brake SKU: KC-BP4816 Overview Features: Incorporates all the features of our standard handbrakes, but with greater range of applications Sectioned fingers are...Full description below
Regular price
$1,199.00
Regular price
Sale price
$1,199.00
Unit price
/
per
Currently Out of stock
Order Now and we will contact you with availability date
Your Credit Card will not be charged until the availability date is accepted
This is your custom message.
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
Share

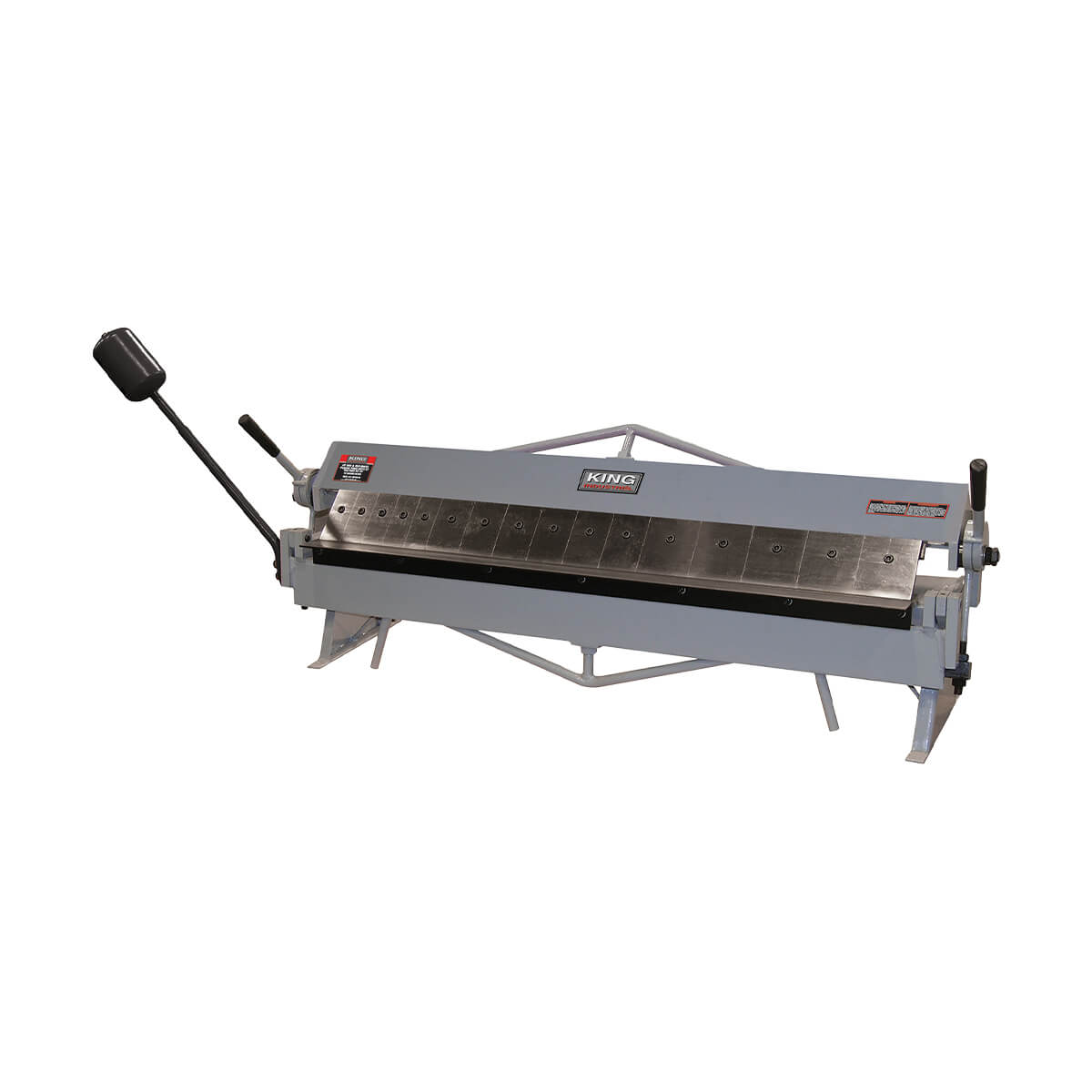

King Industrial® 48" x 16 Gauge Box and Pan Brake
SKU: KC-BP4816
- Overview
- Specifications
Overview
Features:
- Incorporates all the features of our standard handbrakes, but with greater range of applications
- Sectioned fingers are easily removed for box bending and special forming operations
- Wide assortment of finger widths allow greater versatility in the shop
Specifications
| Bending Length: | 48" |
|---|---|
| Capacity (Mild Steel): | 16 Gauge |
| Maximum Lift of Beam: | 1-1/2" |
| Minimum Reverse Bend: | 1/2" |
| Minimum Flange (Mild Steel): | 5/16" |
| Maximum Depth of Box: | 3" |
| Finger Widths: | 4 x 3", 3 x 4", 5 x 5" |
| Assembled Dimensions: | 72" x 15" x 28-3/4" |
| Assembled Weight: | 315 lbs. |
| Shipping Dimensions: | 72" x 15" x 28-3/4" |
| Shipping Weight: | 355 lbs. |
