10" x 16" Wood Lathe
10" x 16" Wood Lathe
SKU: SKU:KWL-1016C
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
/
per
Order today only 1 left
Couldn't load pickup availability
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

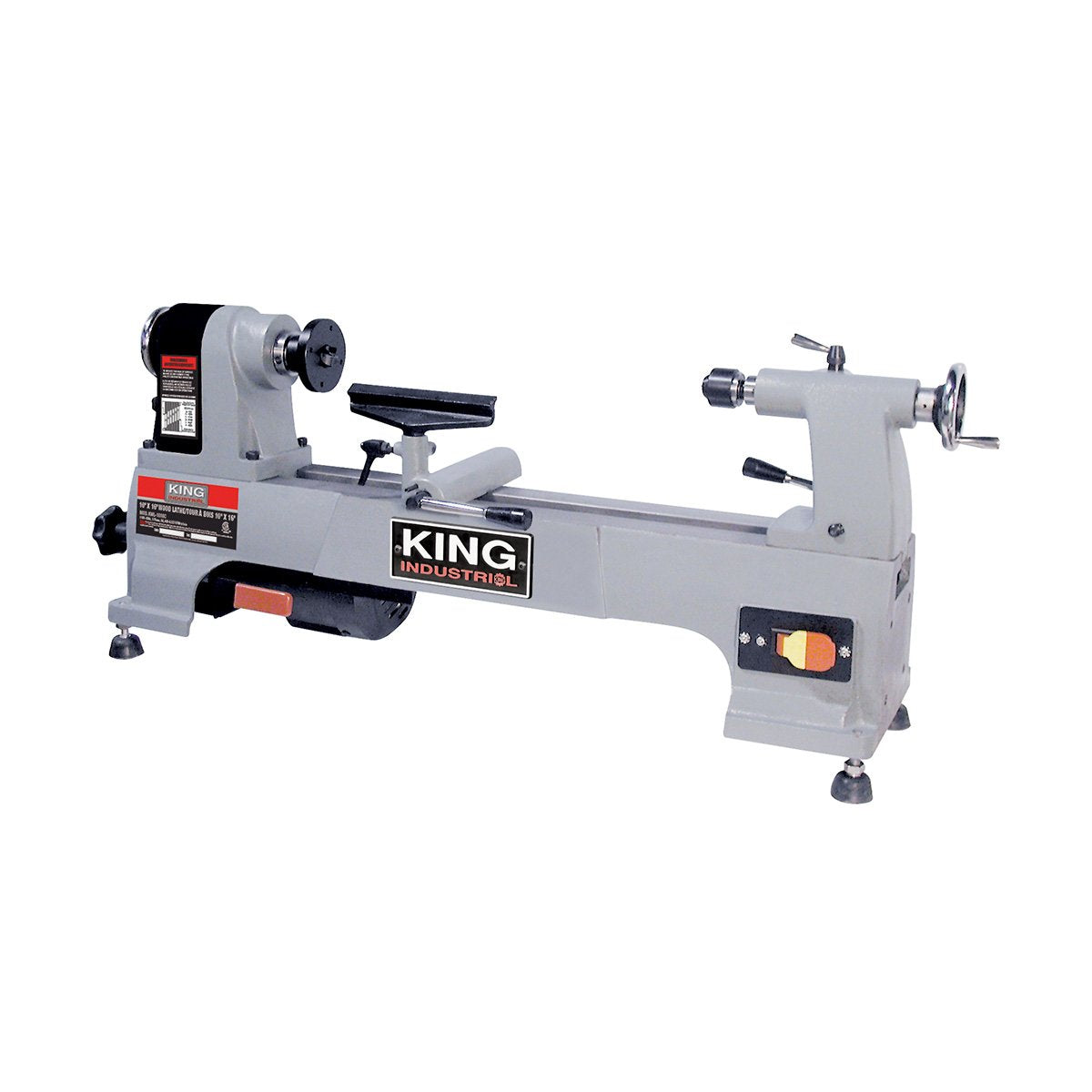

King Industrial® 10" x 16" Wood Lathe
SKU: KWL-1016C
- Overview
- Specifications
Overview
Features:
- All precision-machined cast-iron bedway, headstock, and tailstock construction ensures stability and minimizes vibration for smoother turning
- 10" inboard swing for bowl turning
- Maximum turning capacity of 16” between centers
- Easy access 6-speed step pulley matches speed with specific turning operation
- Large 6" toolrest for flexibility in turning positions
- Toolrest post clamp can be positioned on either side
- Complete with MT#2 live center, MT#2 spur center, 3" faceplate, steel knock-out bar, hex. keys and safety glasses
Specifications
Swing Over Bed: | 10" |
---|---|
Swing Over Toolrest Base: | 7-1/2" |
Distance Between Centers: | 16" |
Spindle Size (Rh Thread) : | 1" x 8 TPI |
Headstock, Tailstock Taper : | MT #2 |
Self-Ejecting Tailstock Travel : | 3-1/2" |
Motor: | 1/2HP, 110V, 60Hz, 1-Phase |
Motor Speed: | 1,720 RPM |
Assembled Dimensions: | 34"L x 10"W x 15"H / 106 lbs |
Shipping Dimensions: | 37L" x 12"W x 17-1/4"H / 110 lbs |
