Revo 15|24 Wood Lathe

Revo 15|24 Wood Lathe

SKU: 415241

$2,999.00
$2,999.00
Sale Sold out

Order today only 2 left

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

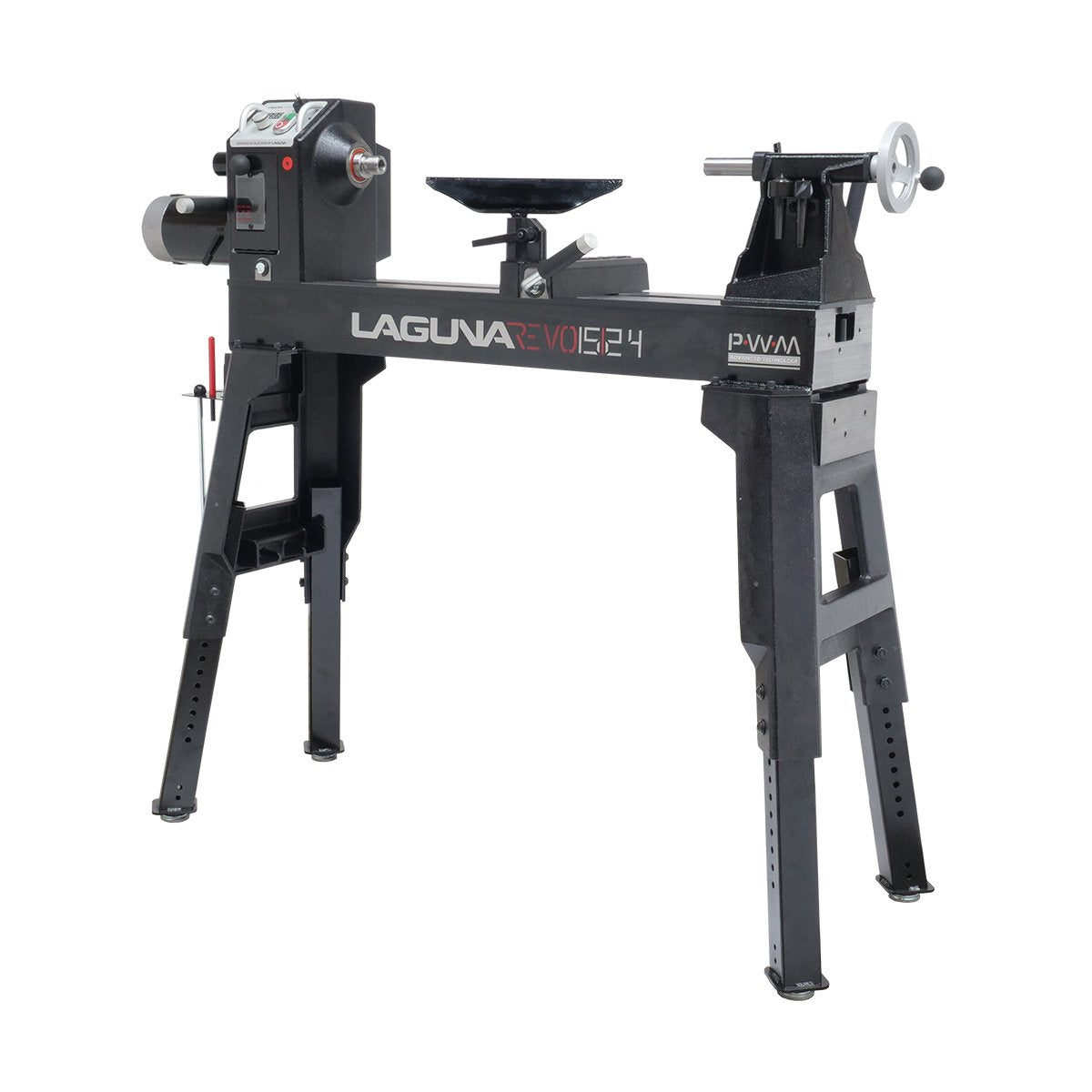

Laguna Revo 15|24 Wood Lathe

SKU: 415241

With the launch of the Revo 15|24, Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space-constrained users with more power and capacity.

  • World-class fit and finish Laguna is known for

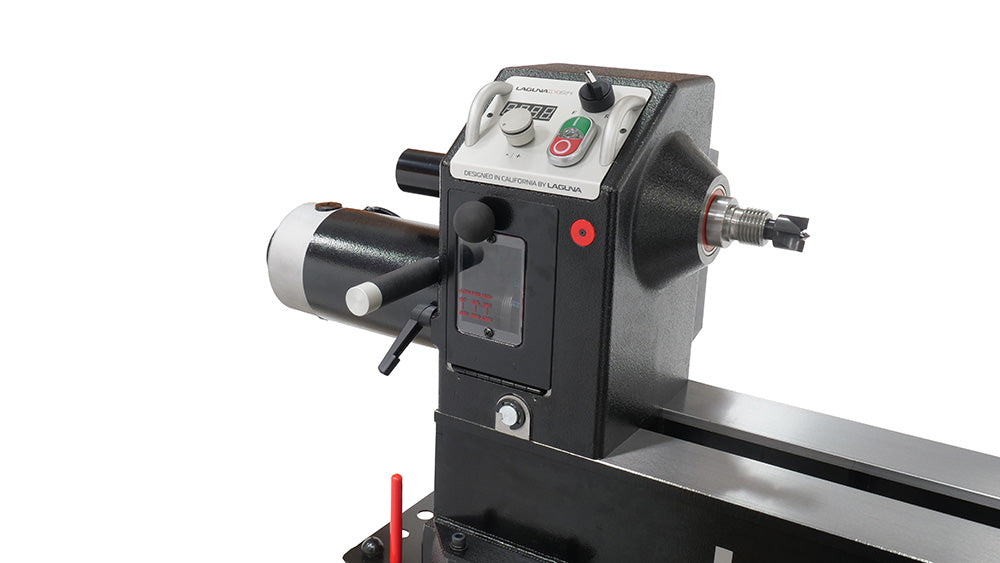

  • Sliding headstock

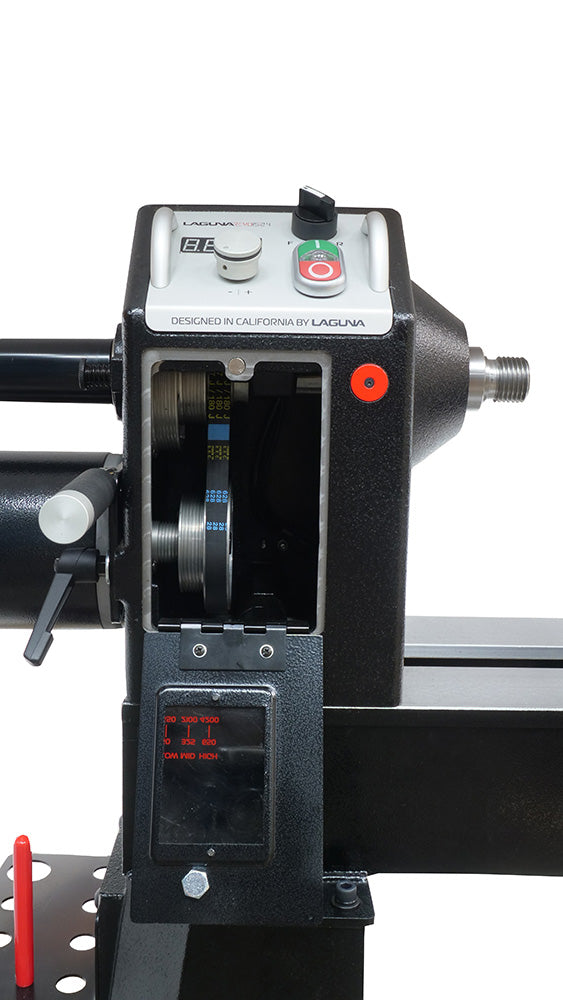

  • Infinite electronic variable speed from 50 - 4200 RPM with a 3 step pulley
  • Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
  • Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
  • Steel bed provides strength, stability, and a surface that the banjo will glide across smoothly

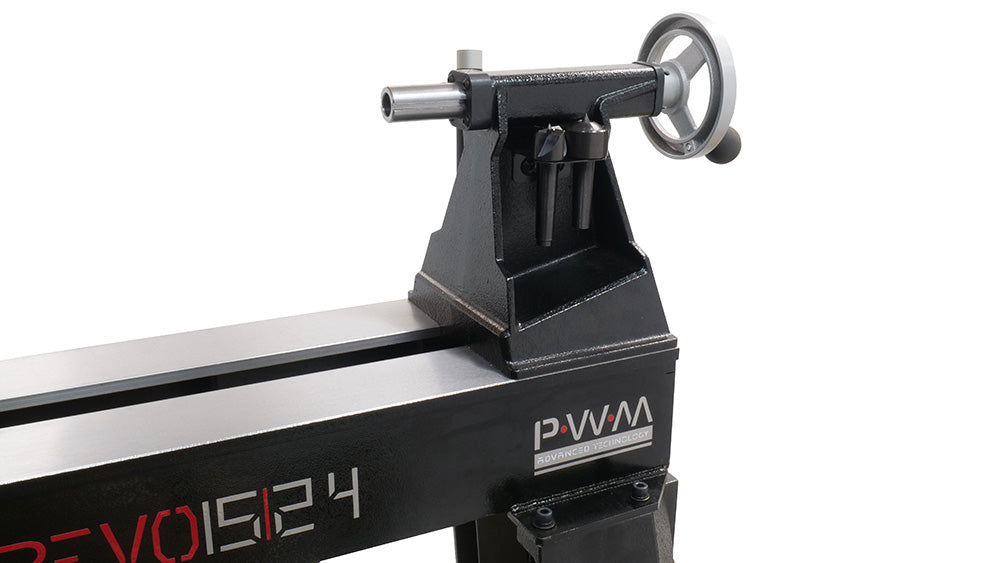

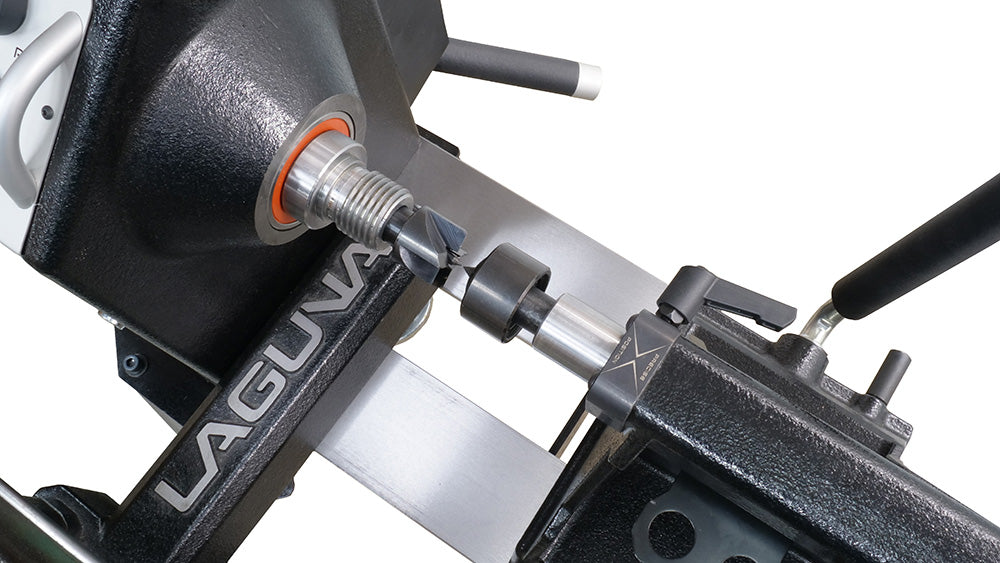

  • A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
Electrical: 1.5HP, 110 Volt, 8 Amp, 60 Hz.
Motor: Permanent Magnet DC, 2150 RPM
PWM: Pulse Width Module Speed Control
Swing over Bed: 15-1/2”
Swing over Banjo: 11-3/32"
*Outboard Swing: *25"
Tool-Rest Post Size: 1"
Tool-Rest Length: 12"
Spindle Taper: MT#2
RPM High Range: 650-4200
RPM Mid Range: 325-2100
RPM Low Range: 50-650
Tailstock Quill: 4 1/2", Self-Ejecting
Floor to Spindle Center Low: 36.4"
Floor to Spindle Center High: 51.4"
Floor to Bed Minimum: 28.6"
Floor to Bed Maximum: 43."
Front Bearing: TPI Taiwan 6206LLU
Rear Bearing: TPI Taiwan 6205LLU
Spindle Index #: 24 w/ Lock
Distance between Centers: 24"
Headstock/Tailstock Through-Bore: 3/8"
Headstock Travel: Full Length
Spindle Size: 1 1/4" X 8TPI RH
Floor Space: W 60" D 22" H 56"
Shipping Dimensions: L 52" W 22" H 22"
Shipping Weight: 302 lbs.

* Requires optional bed extension.

 
