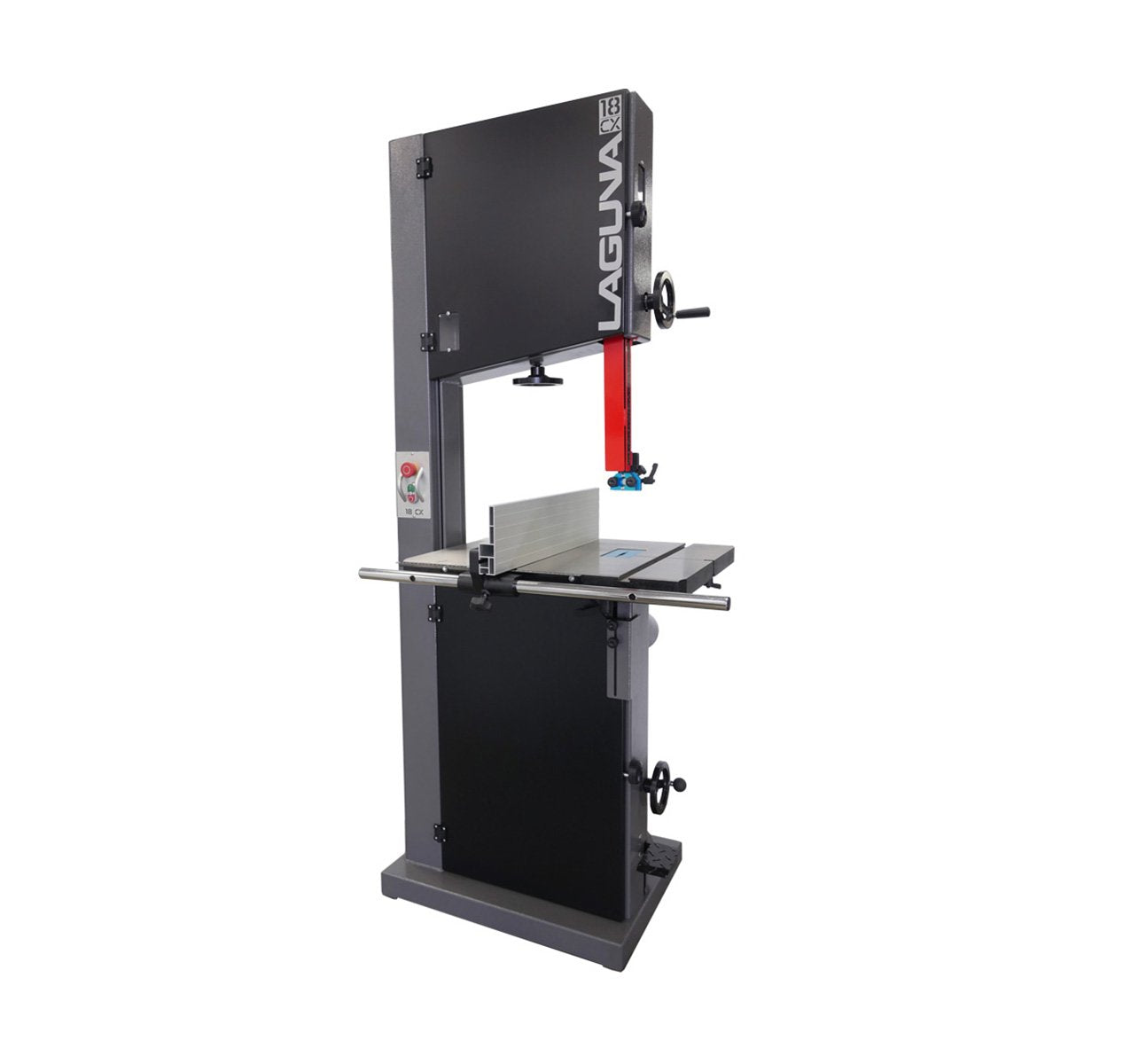

Laguna 18|CX Wood/Metal Cutting Bandsaw
SKU: MBAND18CX110175
- Overview
- Specifications
Overview
The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut through metals and wood with ease.
Features:
- Magnetic Starter

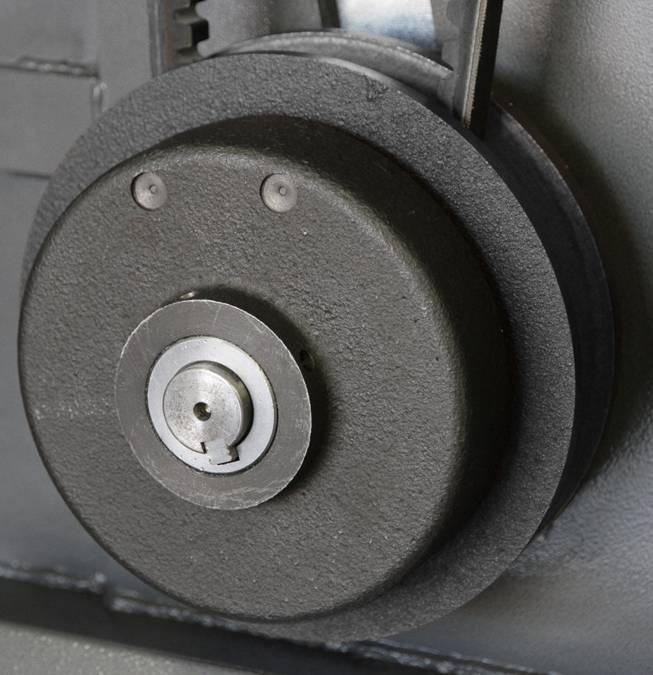

- Disc-Brake with Micro Switch
- 110V Outlet on Back for Light
- Window for Tension:
- Window for Tracking
- Magnetic Blade Tension Guide
- Worm Gear & Pinion Upper Guide
- 10 Point Laguna Ceramic Guides

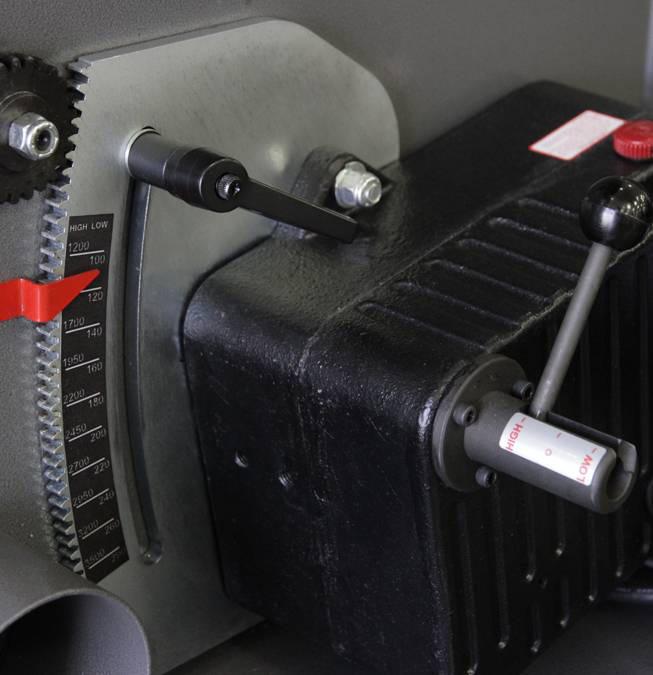

- Mechanical Variable Speed Drive
- Low Blade Speed: 100-290 FPM
- High Blade Speed: 1200-3500 FPM
- Anodized Insert w/Micro Adjustment

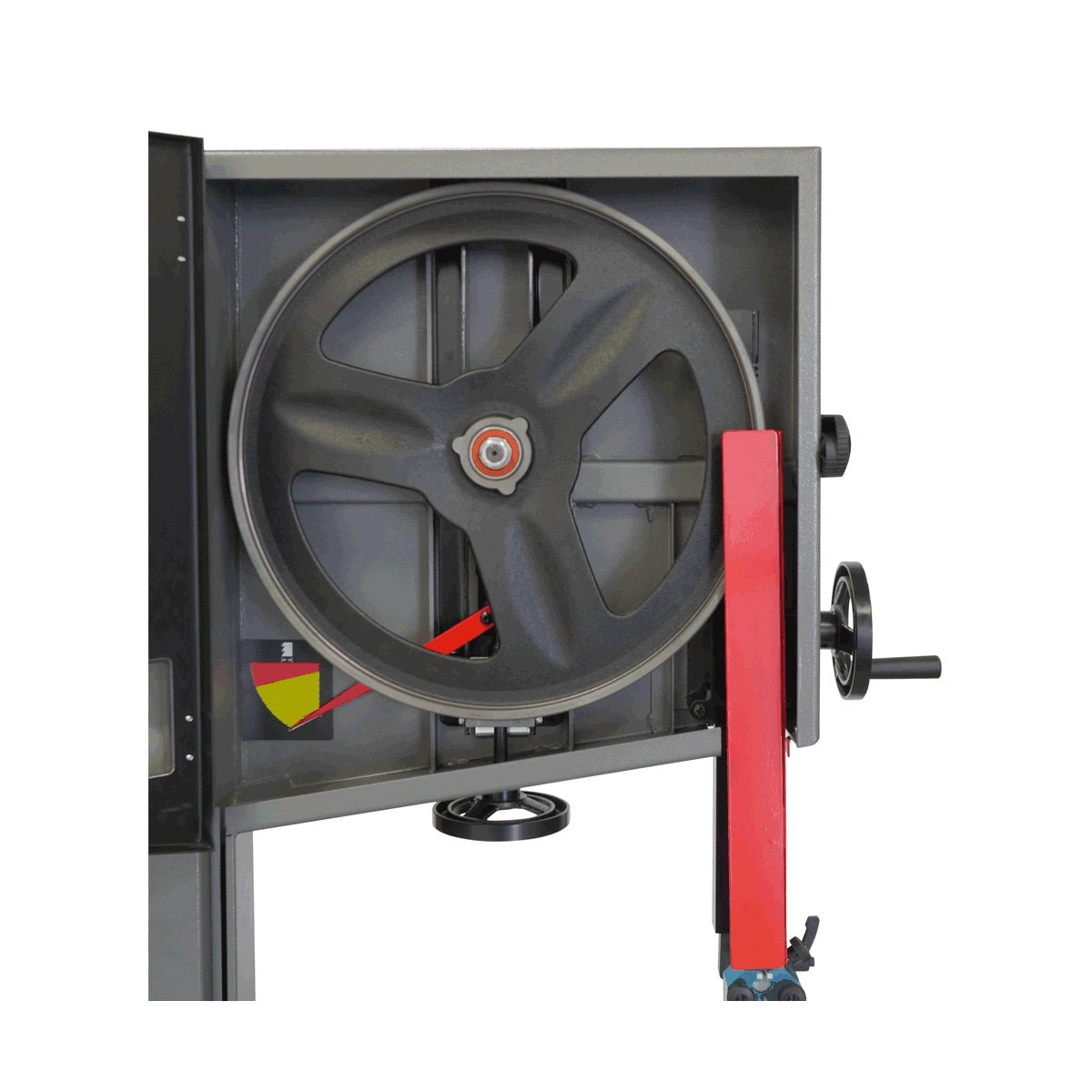

- Dynamically Balanced Cast Iron Wheels
- Urethane Single Piece Snap-on Tire
- Quick-Release Tension
- Hi/Low Anodized Aluminum Fence
- Dust Ports: 2 x 4"
Laguna Bandsaws do not ship with blades from the factory
Order your 145" blades here
Specifications
| Specifications | |
|---|---|
| Motor: | 1.75HP, 110V, 60Hz, 14.7A, 1-Phase |
| Low-Speed Range: | 100-290 FPM |
| High-Speed Range: | 1200-3500 FPM |
| Minimum Blade Width: | 1/8" |
| Maximum Blade Width: | 1-1/4" |
| Resaw Capacity: | 16" |
| Throat: | 18-7/32" |
| Blade Length: | 145" |
| Cast Table Size: | 20" x 26" |
| Table Tilt: | -6°, +45° |
| Hi/Low Anodized Aluminum Fence: | 22-3/4 x 7-1/4 x 11/16" |
| Table Height: | 38" |
| Dust Ports: | 2 x 4" |
| Overall Height: | 77-3/4" |
| Base Dimensions: | 27" x 20" |
| Overall Dimensions: | 36" x 30" |
| Net Weight: | 480 lbs. |
| Shipping Dimensions: | 82" x 34" x 36" |
| Shipping Weight: | 545 lbs. |
