Revo 18|36 Lathe 110 Volt

Laguna Tools

Revo 18|36 Lathe 110 Volt

SKU: MLAREVO 1836-110-150

order today only 2 left in stock
$3,999.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

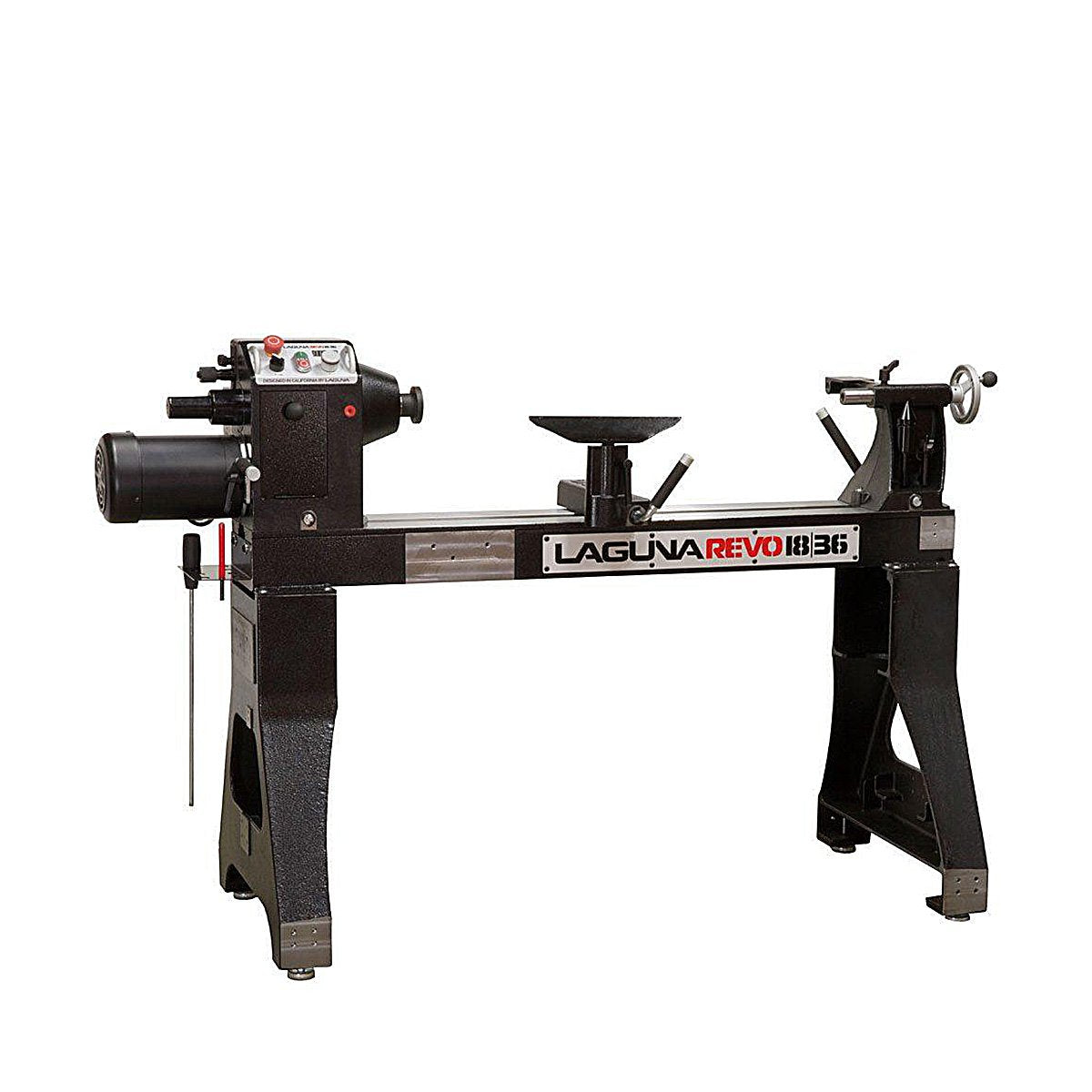

Laguna Revo 18|36 Lathe 110 Volt

SKU: MLAREVO 1836-110-150

The first feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe. The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well-known longevity and strength. Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings, you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle. The headstock and tailstock lock handles are situated on the back to eliminate any interruptions to your workflow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.

Features

  • 1725 RPM TEFC Induction Motor
  • Poly-Groove Drive Belt w EZ Access
  • Spring Loaded Spindle Lock
  • Engraved, Self-Ejecting Tailstock Quill
  • Spindle Index # 14/36/48 w Lock
  • Full-Length Headstock Travel
Motor: 1.5HP, 110 Volt, 60 Hz
Recommended Breaker Size: 20 Amp
Maximum Outboard Swing: 32"
Swing over Banjo: 13 1/2"
Steel Bed: ASTM A36
Spindle Taper: MT#2
Swing over Bed: 18"
RPM Range High: 135-3500
RPM Range Low: 50-1300
Tailstock Quill: 4 1/2"
Floor to Spindle Center: 41 1/2" w Pads
Spindle Index #: 14/36/48 w Lock
Distance Between Centers: 36"
Headstock Through-Bore: 3/8"
Headstock Travel: Full Length
Tailstock Through-Bore: 3/8"
Spindle Size: 1 1/4" X8 TPI RH
Floor to Bed: 32 1/2" w Pads
Floor Space: W 60" D 26" H 47"
Weight (Net/Ship): 427/480 Lbs.
