Laguna Revo 12|16 Lathe


Revolutionary New Control Produces Superior Torque

Pulse Width Modulation efficiently delivers more torque at low- to mid-range speeds, minimizing RPM loss.
PWM delivers power to a DC motor through a succession of voltage pulses rather than adjusting voltage or current.
PWM vastly improves efficiency at low- to mid-range speeds and substantially decreases the loss of torque under load.

How Does Pulse Width Modulation Differ From Standard Controllers?

Typically a controller limits voltage or current to adjust the speed.
This limitation results in less torque being available especially at low to mid-range speeds.
The voltage not being used is converted to heat that can damage electrical components after prolonged use.

Upgraded Bearings - The front bearing is a double-sealed 6006 LLU Ball Bearing. The basic dynamic load rating is 31% higher than a typical 6005 ball-bearing & the basic static load rating is 42% higher than a typical 6005 ball bearing.

The rear bearing is fitted with a 6005 LLU Ball Bearing. The basic dynamic load rating is 8% higher than a 6004, & the basic static load rating is 16% higher than a 6004.

Standard Features:

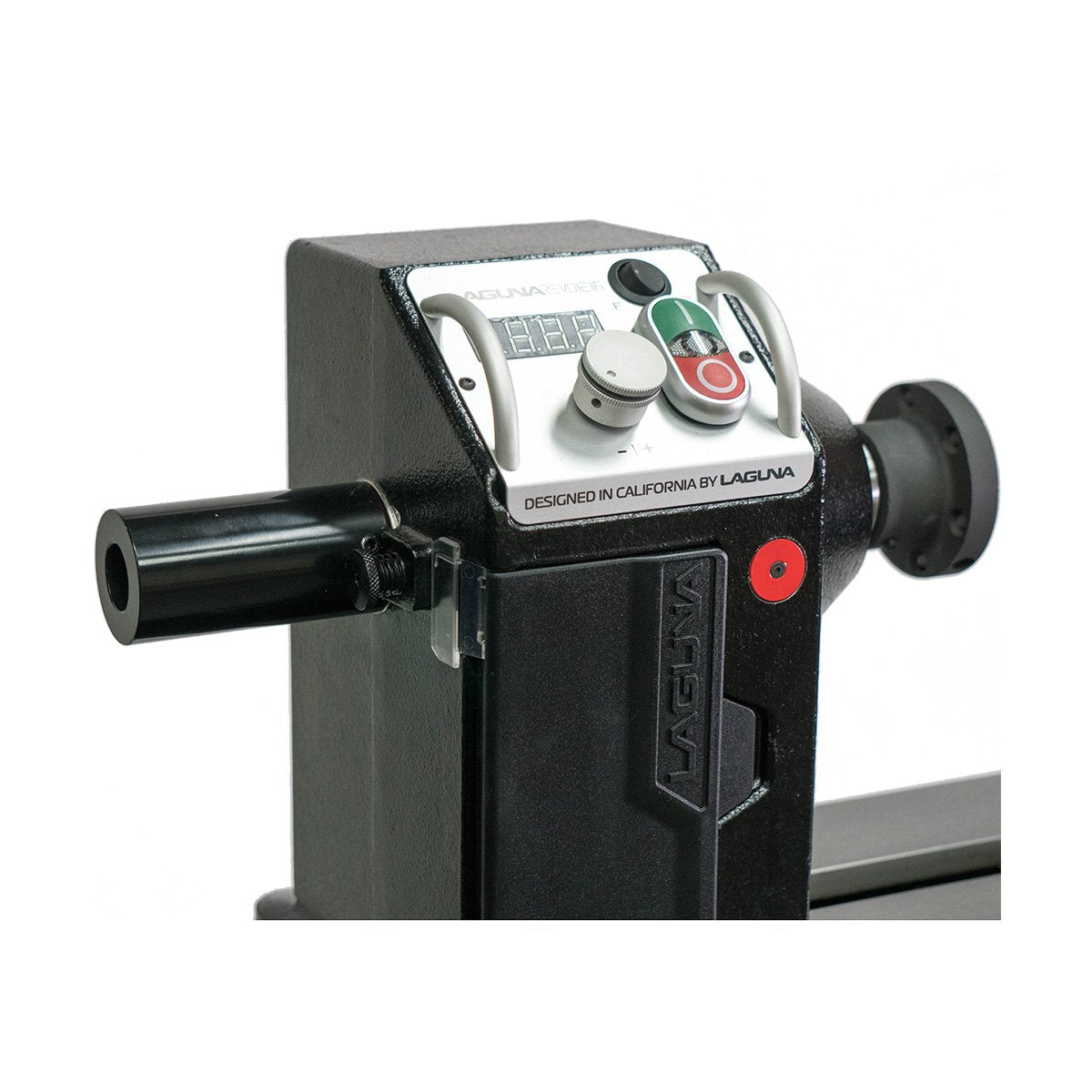

  • 24 Position Index System with Lock & Transparent Window

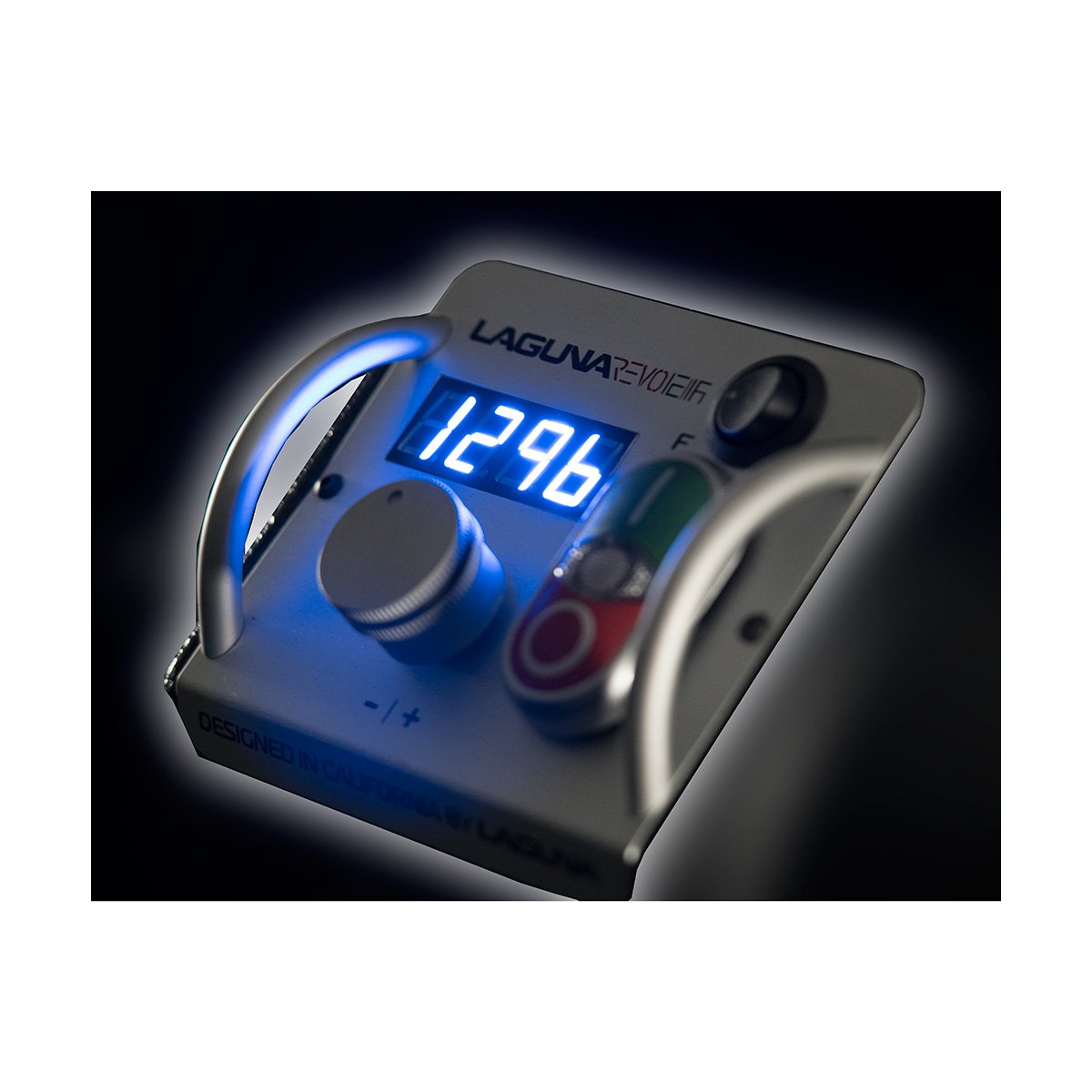

  • Electronic Variable Speed & RPM Digital Read Out (DRO)
  • Pulse Width Modulation (PWM) Motor Control
  • Hardened 1045 Steel Tool Rest Leading Edge
  • Luxury Banjo with 45° Chamfered Edge
  • Live & Drive Center On-Board Storage
  • Forward & Reverse Spindle Rotation
  • Premium Banjo & Tailstock handles
  • 1” REVO Compatible Tool Rest Post
  • 3-1/2” Solid Polished Handwheel
  • ACME Lead Screw in Tailstock
  • Drive Center Knock-out Rod
  • Live Center & Drive Center
  • Magnetic Door Latches
  • Tool-less Belt Change
  • Faceplate Wrench
  • 3” Faceplate

Optional Accessories:

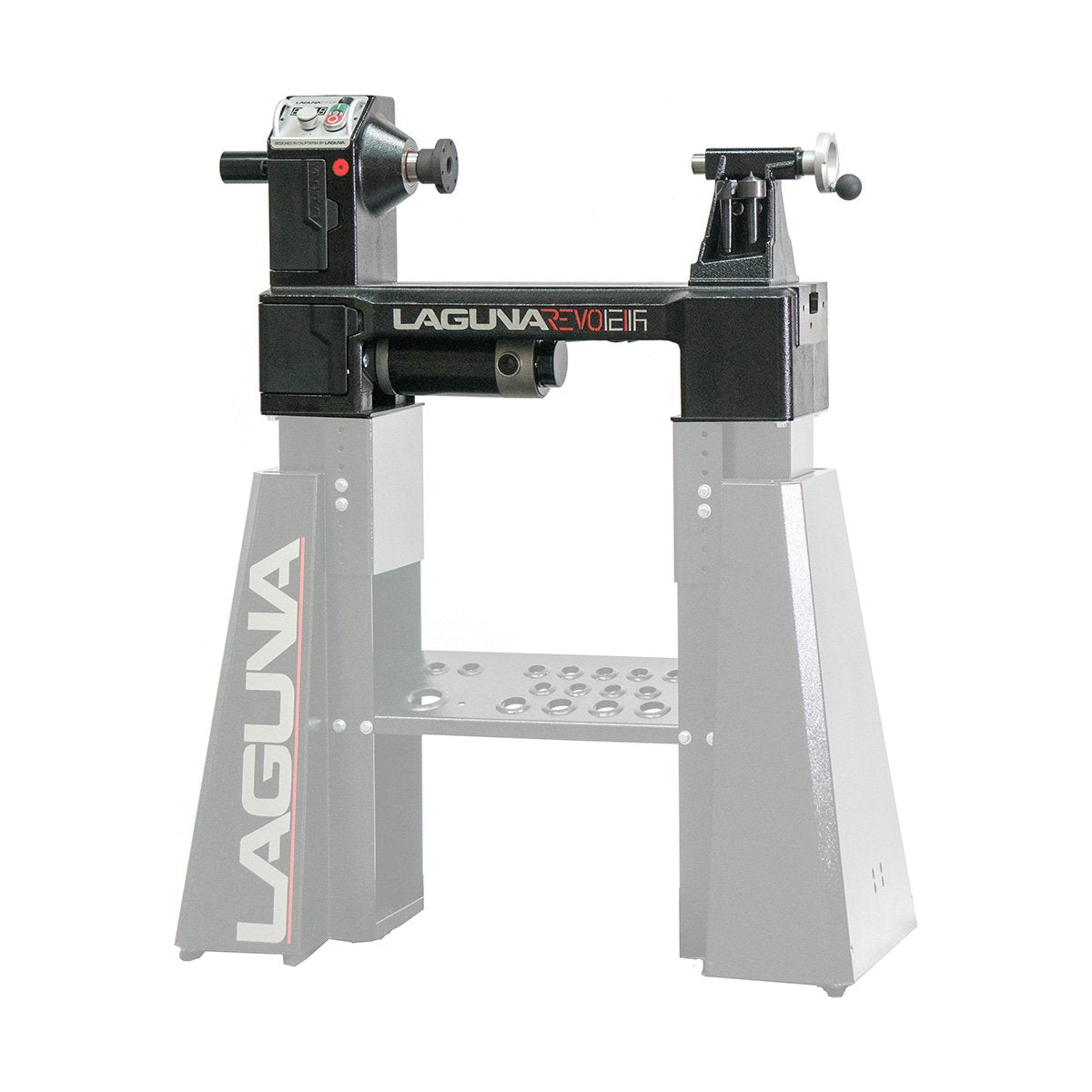

Premium Stand - Adjustable from 39”– 45” at spindle center & featuring ergonomic multi tool shelving. Net Weight is 81 lbs. making the Revo 12|16 mounted on stand a combined 199 lbs.

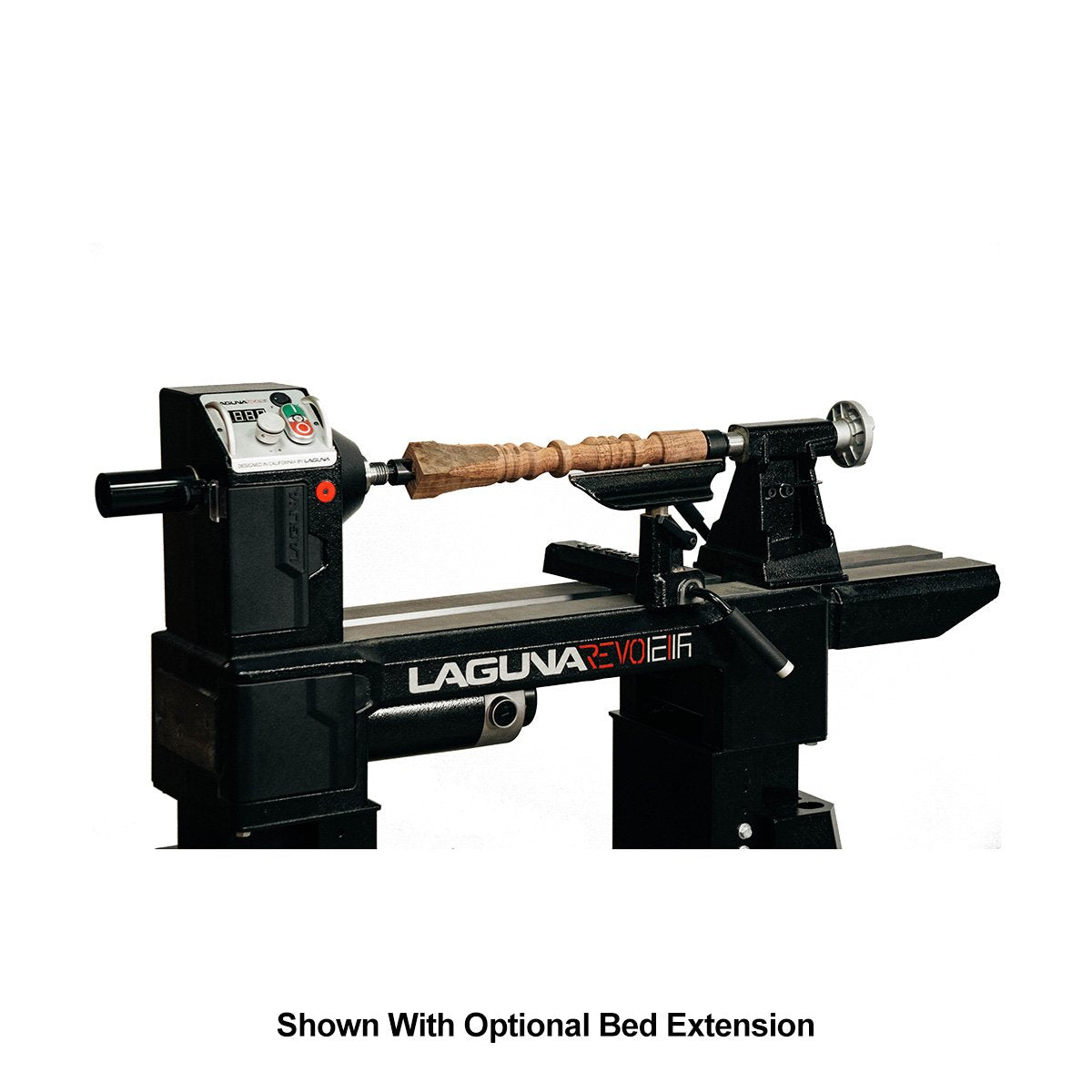

Bed Extension Set - 10” Cast Iron Extension, Tool Rest Extension, and Spindle Adapter LH | RH 1” X 8 TPI.

Industrial Flood Light - Dust-proof ribbed aluminum case swivels 320°, features bright glare-free floodlight & built-in transformer.

Deluxe Wheel System - The Wheel System is designed for maximum stability & ease of use. Simply step on pedal to engage.

Motor: 1 HP DC Permanent Magnet Motor
Controller: Pulse Width Modulation (PWM)
Electrical Requirements: 110V, 15A, 60Hz 1Phase
Speed Range High: 650 - 3500 RPM
Speed Range Mid: 325 - 1750 RPM
Speed Range Low: 50 - 525 RPM
Distance Between Centers: 15.5”
Swing Over Bed: 12-1/2”
Swing Over Banjo: 9-1/2”
Max. Outboard Swing: 16”
Spindle Bore: 3/8”
Spindle Taper: MT2
Spindle Thread: 1”x 8 TPI (both ends)
Bearings: 6006LLU Front - 6005LLU Rear
Indexing: 24 positions w/ Lock
Drive belt: Poly-V Belt 6 Grooves
Tailstock quill travel: 2-1/2”
Tailstock taper: MT2
Bed Length: 29.4"
Tool Rest Length" 6”
Tool Rest Post Diameter: 1”
Faceplate Diameter: 3”
Floor to bed height: 6.7” no pads
Floor to Spindle Center: 13” no pads
Overall Size: L29.4” W8.9” H17.4”
Shipping Dimensions: L35.8” W14.6” H20.5”
Net Weight: 118 LBS
Shipping Weight: 125 LBS
Certification: CSA C/US 256540
