Laguna Tools
18|CX Wood/Metal Cutting Bandsaw Package
18|CX Wood/Metal Cutting Bandsaw Package
SKU: SKU:MBAND18CX110175-P
Special Order Item
Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca
Regular price
$5,499.00
Regular price
$5,723.99
Sale price
$5,499.00
Unit price
/
per
Couldn't load pickup availability

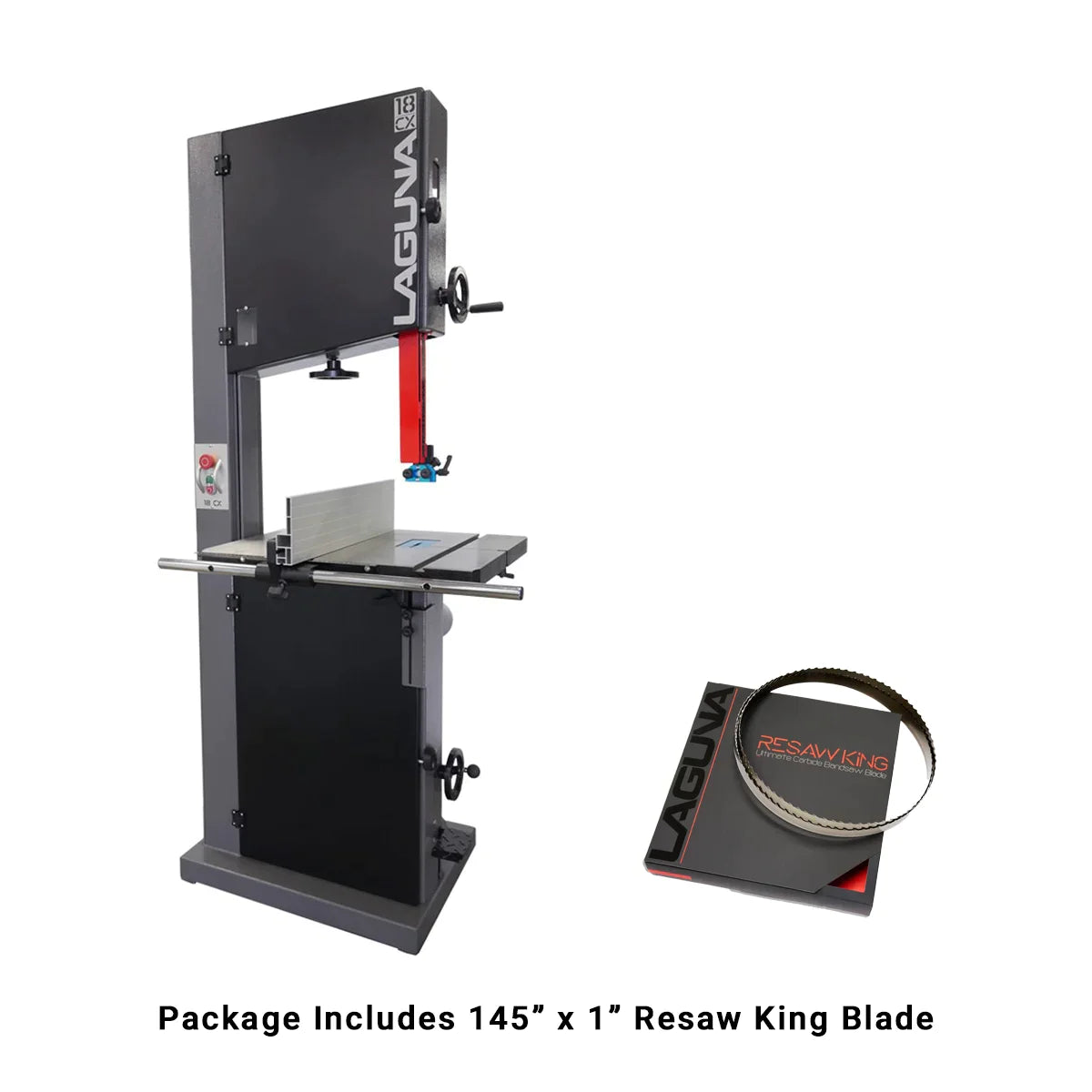

Laguna 18|CX Wood/Metal Cutting Bandsaw
SKU: MBAND18CX110175-P
- Overview
- Specifications
Overview
The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut through metals and wood with ease.
Features:
- Magnetic Starter
- Disc-Brake with Micro Switch
- 110V Outlet on Back for Light
- Window for Tension:
- Window for Tracking
- Magnetic Blade Tension Guide
- Worm Gear & Pinion Upper Guide
- 10 Point Laguna Ceramic Guides
- Mechanical Variable Speed Drive
- Low Blade Speed: 100-290 FPM
- High Blade Speed: 1200-3500 FPM
- Anodized Insert w/Micro Adjustment
- Dynamically Balanced Cast Iron Wheels
- Urethane Single Piece Snap-on Tire
- Quick-Release Tension
- Hi/Low Anodized Aluminum Fence
- Dust Ports: 2 x 4"
Laguna Resaw King Bandsaw Blade 145" x 1"
SKU: BBRK-1-145
Features:
- C4 Carbide Tipped
- Resharpenable
- Backing: .024" / .6mm
- Variable Pitch: 12mm, 14mm, 16mm
- T.P.I. 2-3 Variable
- Kerf: .041" / 1.0mm
Specifications
| Specifications | |
|---|---|
| Motor: | 1.75HP, 110V, 60Hz, 14.7A, 1-Phase |
| Low-Speed Range: | 100-290 FPM |
| High-Speed Range: | 1200-3500 FPM |
| Minimum Blade Width: | 1/8" |
| Maximum Blade Width: | 1-1/4" |
| Resaw Capacity: | 16" |
| Throat: | 18-7/32" |
| Blade Length: | 145" |
| Cast Table Size: | 20" x 26" |
| Table Tilt: | -6°, +45° |
| Hi/Low Anodized Aluminum Fence: | 22-3/4 x 7-1/4 x 11/16" |
| Table Height: | 38" |
| Dust Ports: | 2 x 4" |
| Overall Height: | 77-3/4" |
| Base Dimensions: | 27" x 20" |
| Overall Dimensions: | 36" x 30" |
| Net Weight: | 480 lbs. |
| Shipping Dimensions: | 82" x 34" x 36" |
| Shipping Weight: | 545 lbs. |
