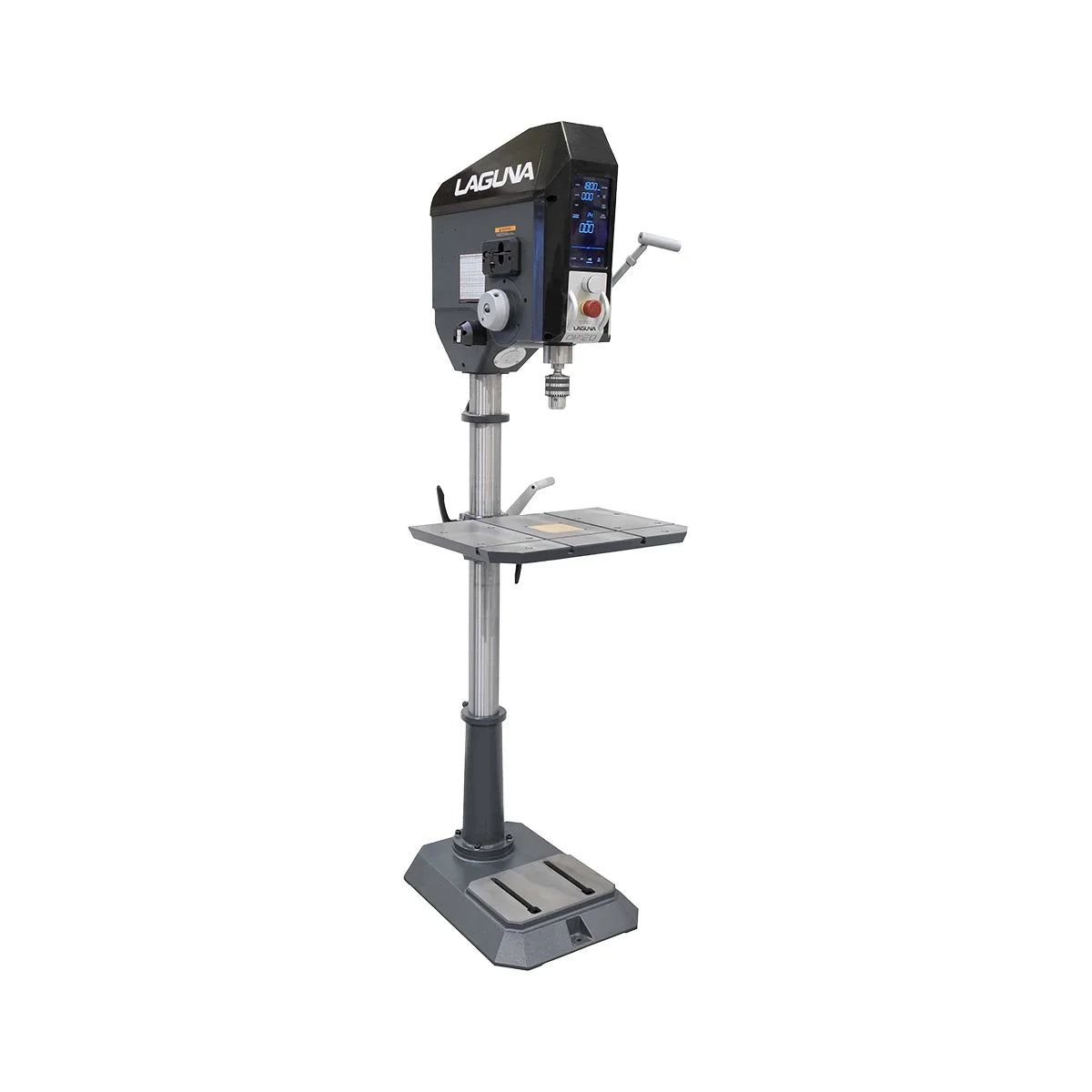

DP:20 Drill Press

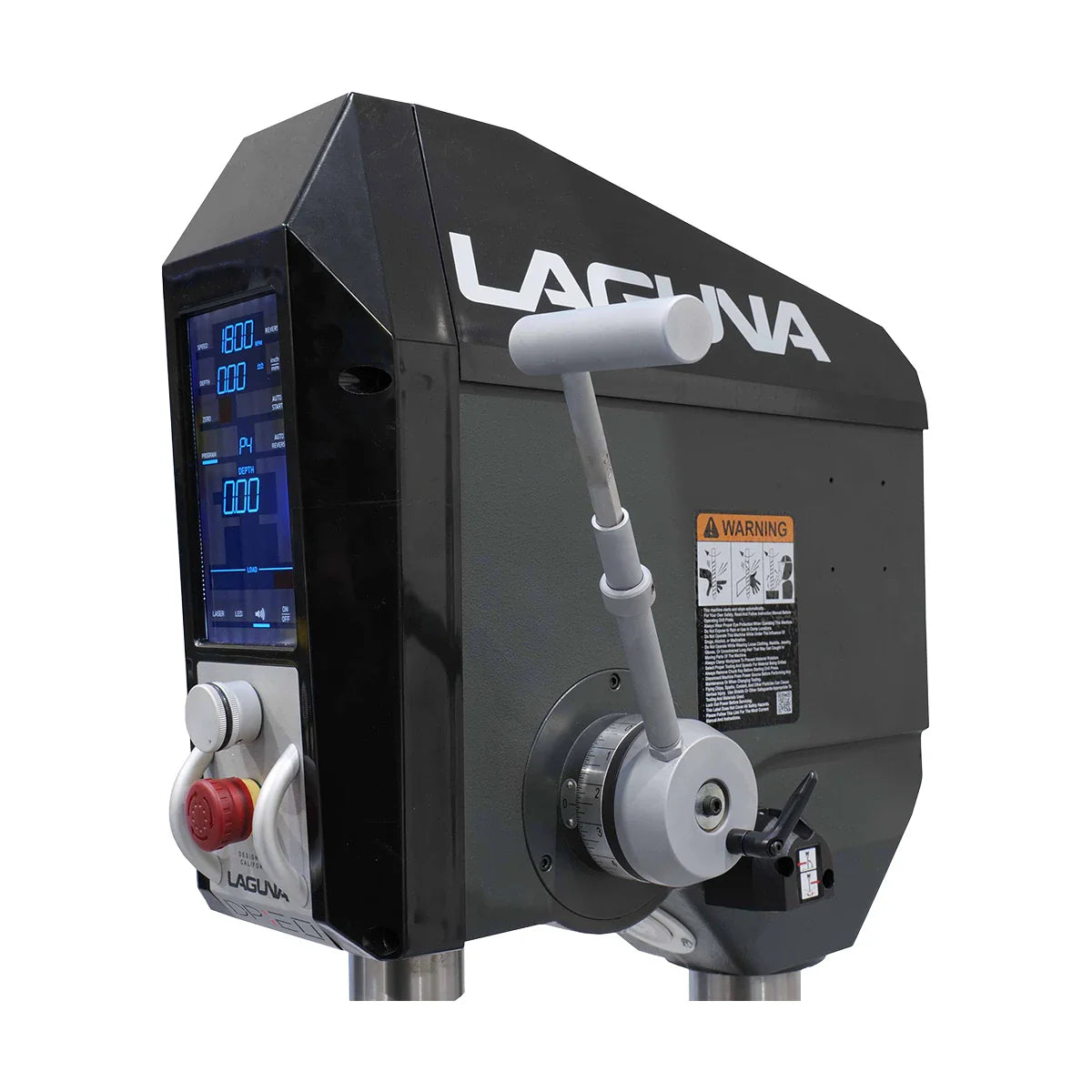

Introducing the new DP20: Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4" x 6-7/8" touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.

Experience unparalleled efficiency with the Auto-Start function, which activates the drill press when the quill is lowered and stops it when raised. Achieve perfect, repeatable drilling depth with the electronic depth setting or mechanical depth stop. Safety is paramount with a chuck key holder with a sensor that locks out the Auto-Start function during bit changes. The Auto Reverse function is also a standout feature, exclusively used for tapping to automatically reverse the tap when it reaches the preset depth.

The extra-large 15” x 22” cast iron worktable tilts left and right up to 90 degrees and rotates 360 degrees, offering versatile support for various workpieces and multiple clamping options. Onboard high-output 5W LED work light and crosshair lasers ensure precise material positioning and optimal visibility. Elevate your craftsmanship with the DP20: the pinnacle of performance and modern design for drill presses.

Experience the pinnacle of performance and modern design with the DP20 Drill Press, designed to meet the needs of the most demanding applications

Features:

• Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
• 1.5 HP PWM Motor: Constant torque with forward and reverse functions.
• Auto-Start Function: Starts and stops with the movement of the quill.

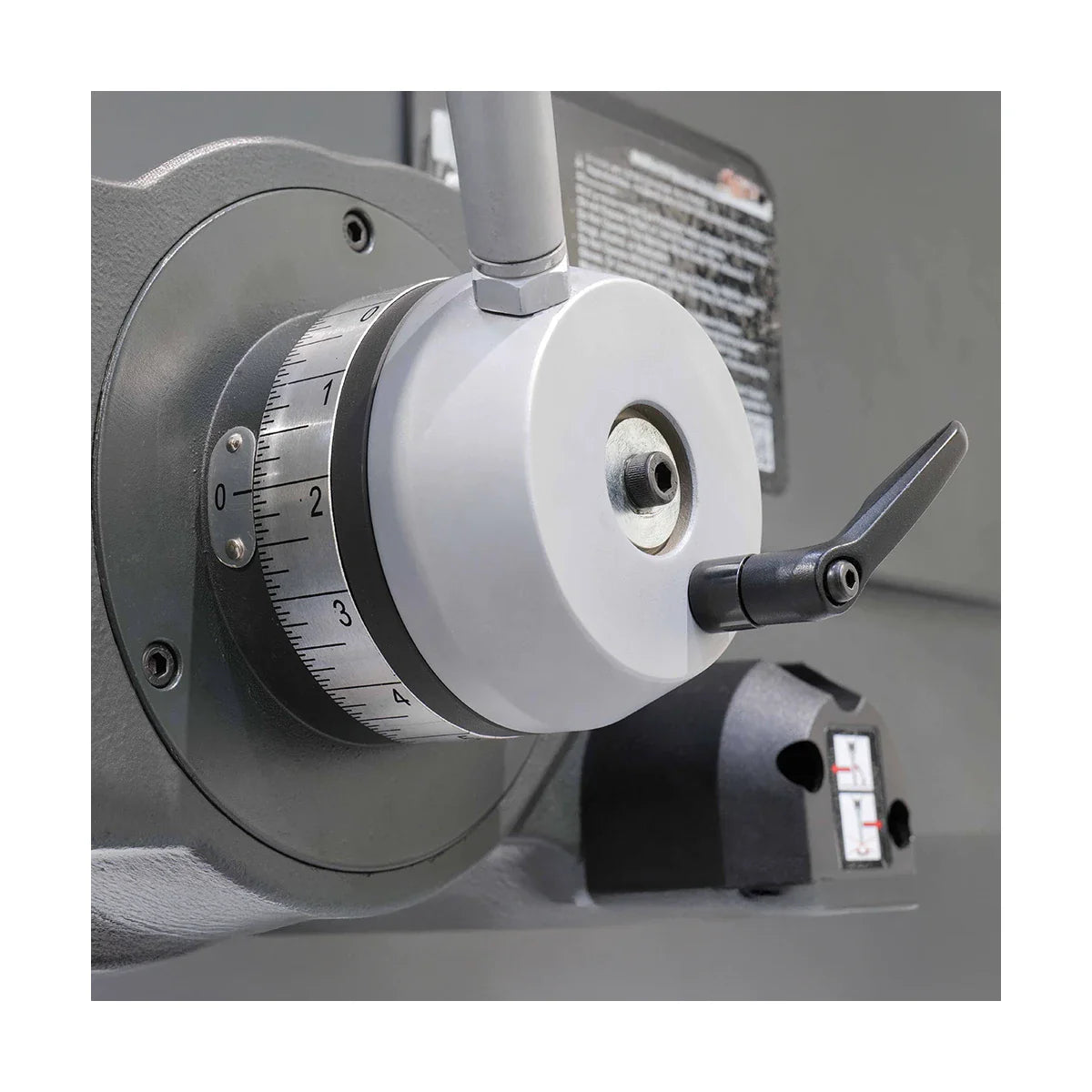

• Precision Depth Control: Electronic depth setting.

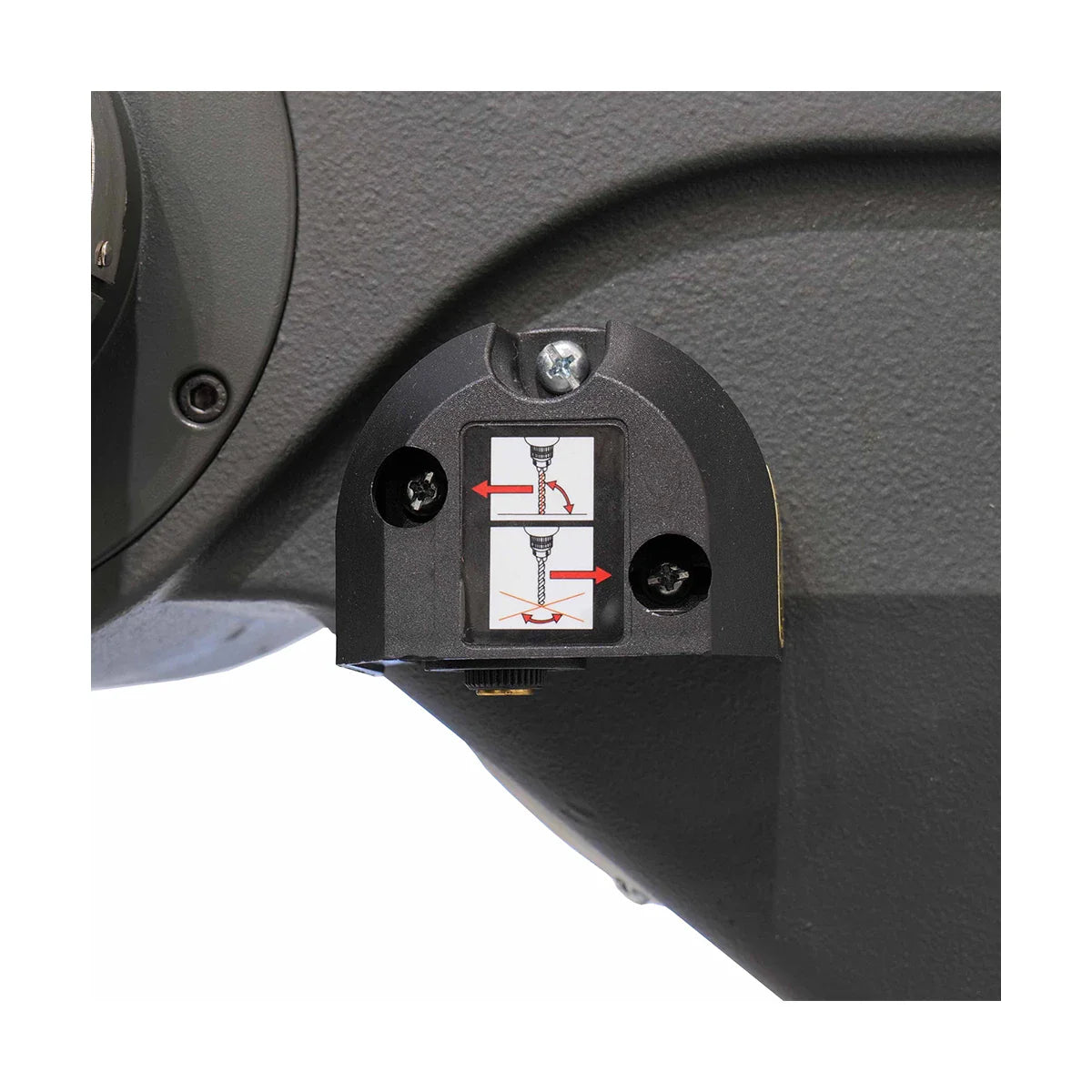

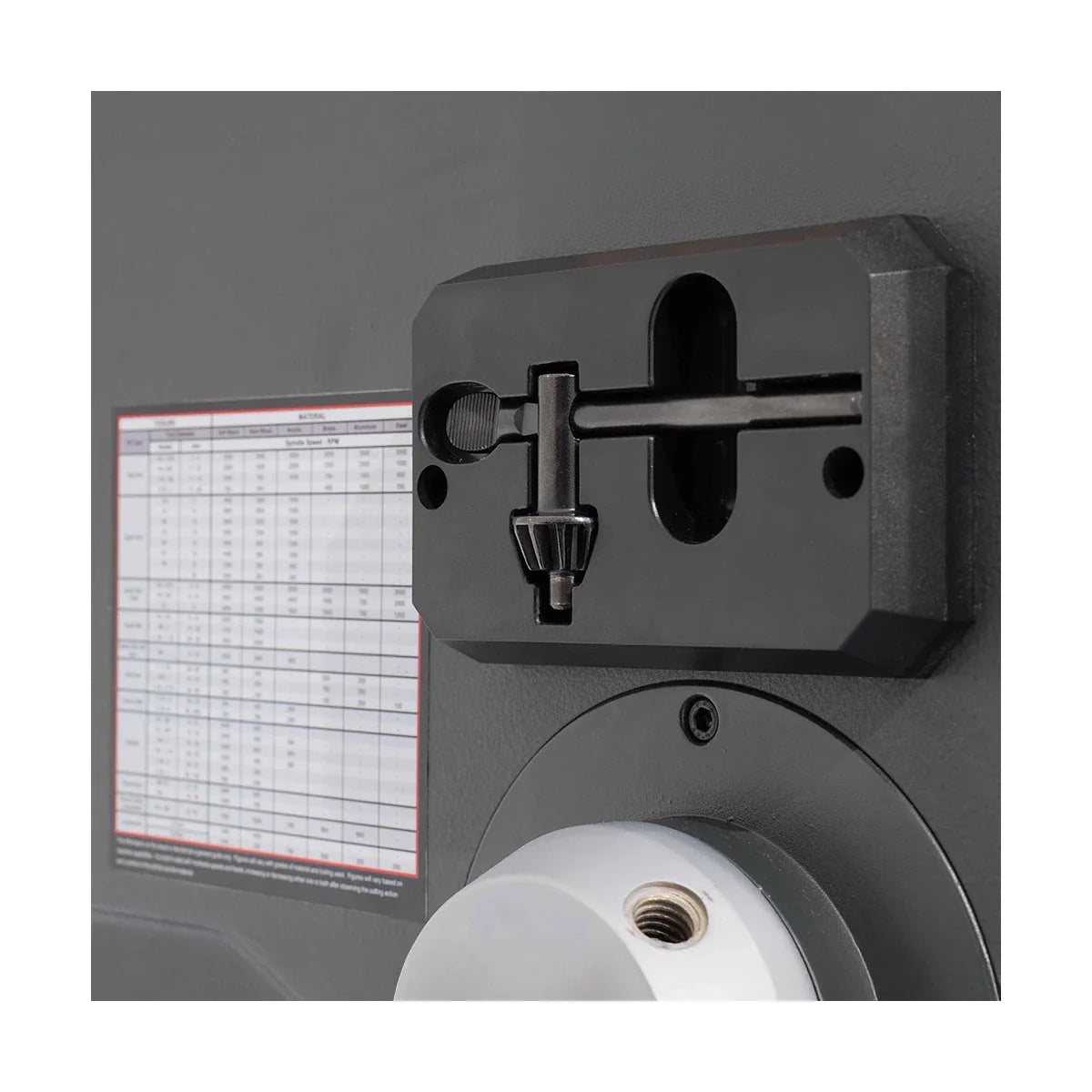

• Advanced Safety Features: Chuck key holder with a sensor that locks out Auto-Start function during bit changes.
• Customizable Memory Settings: Five programmable speed and depth settings.
• Extended Quill Travel: 6 inches of precise drilling capacity.

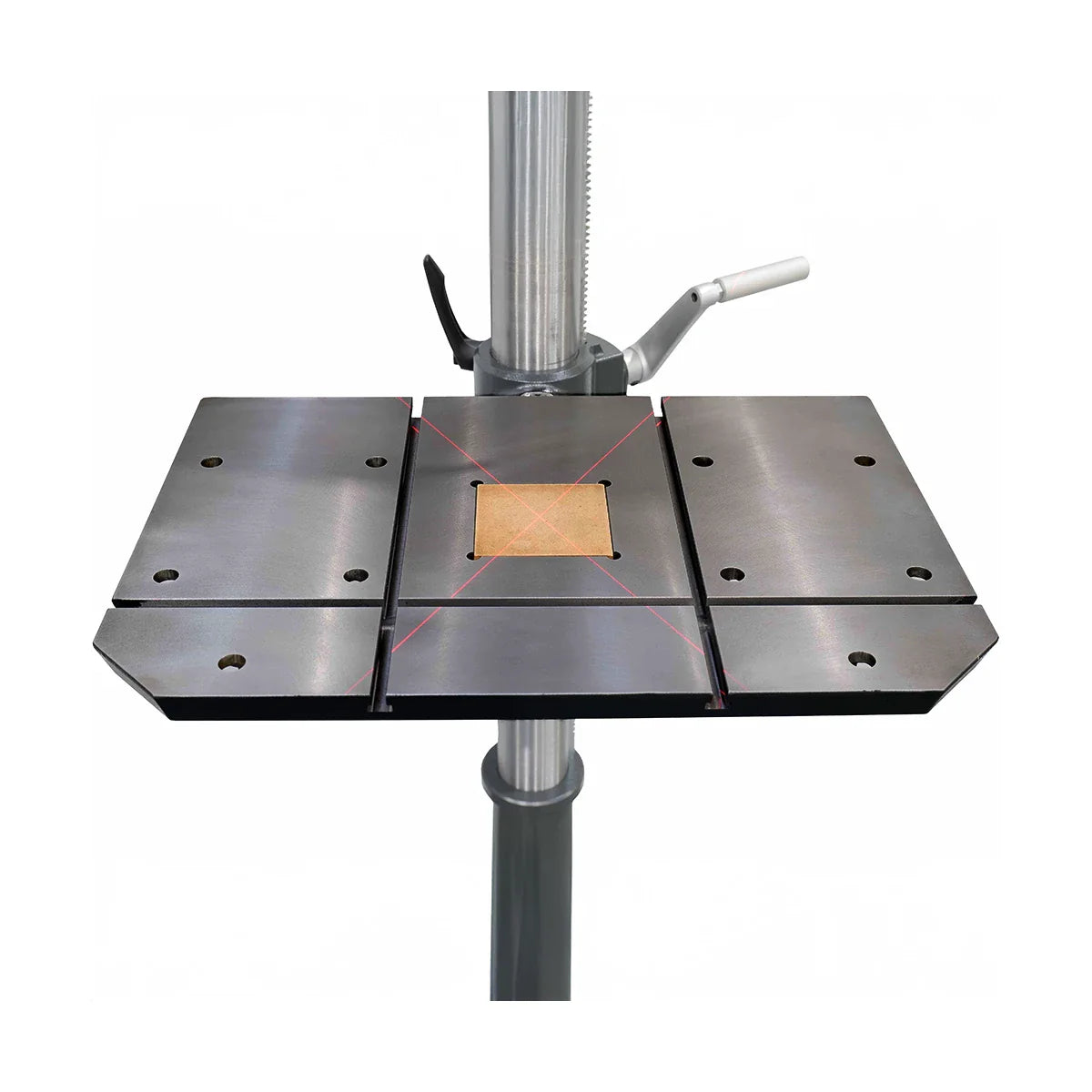

• Versatile Worktable: Large 15” x 22” cast iron table tilts up to 90 degrees left and right, rotates 360 degrees, with T-slots and 10 clamping holes.

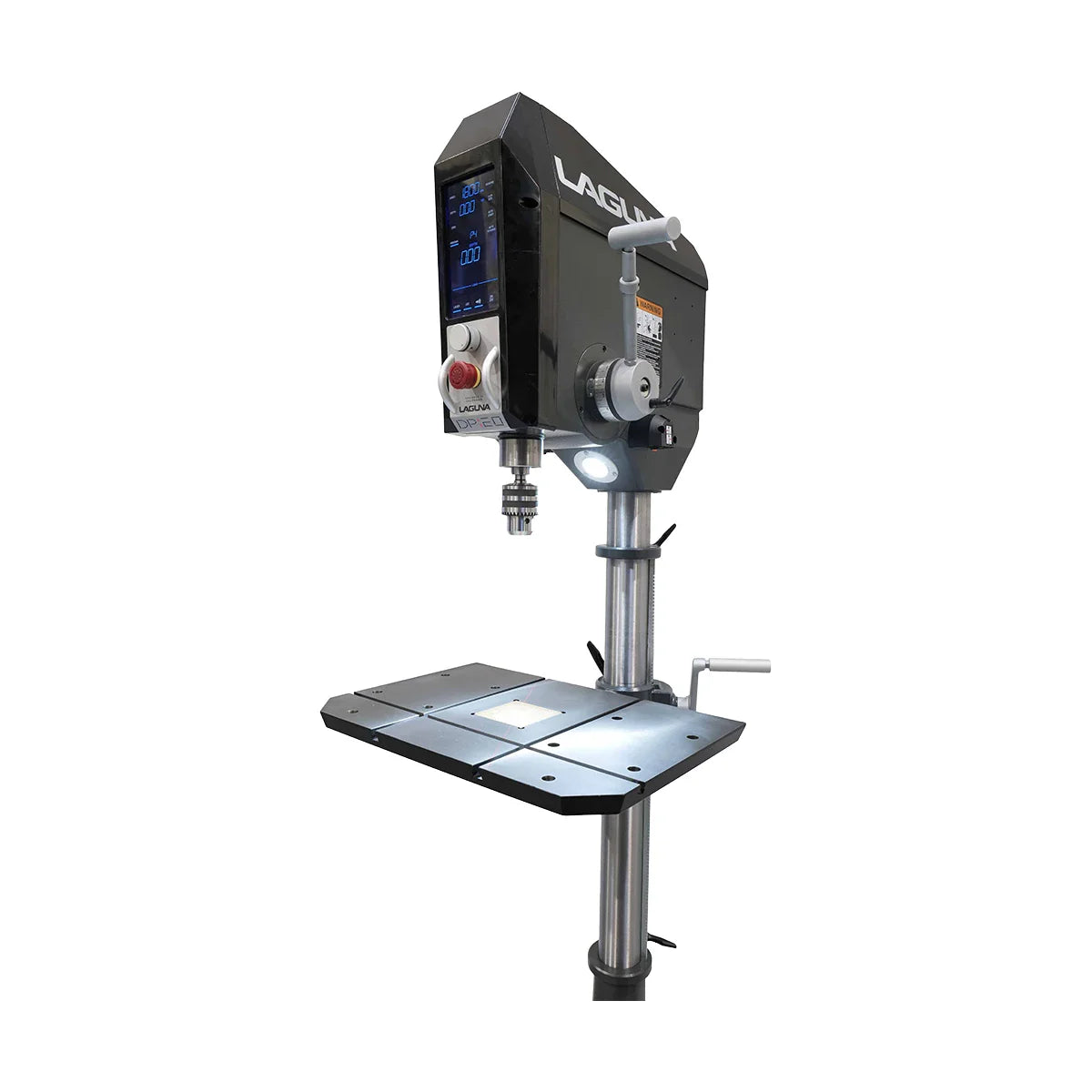

• High-Output LED Work Light: Onboard 5W LED for optimal visibility.
• Crosshair Lasers: Ensures precise material positioning.
• User-Selectable Screen Increments: Displays in Fractional Inch, Decimal Inch, or Decimal Millimeter.
• Modern Design: Sleek aesthetic from headstock to table control handles.

MDP201
