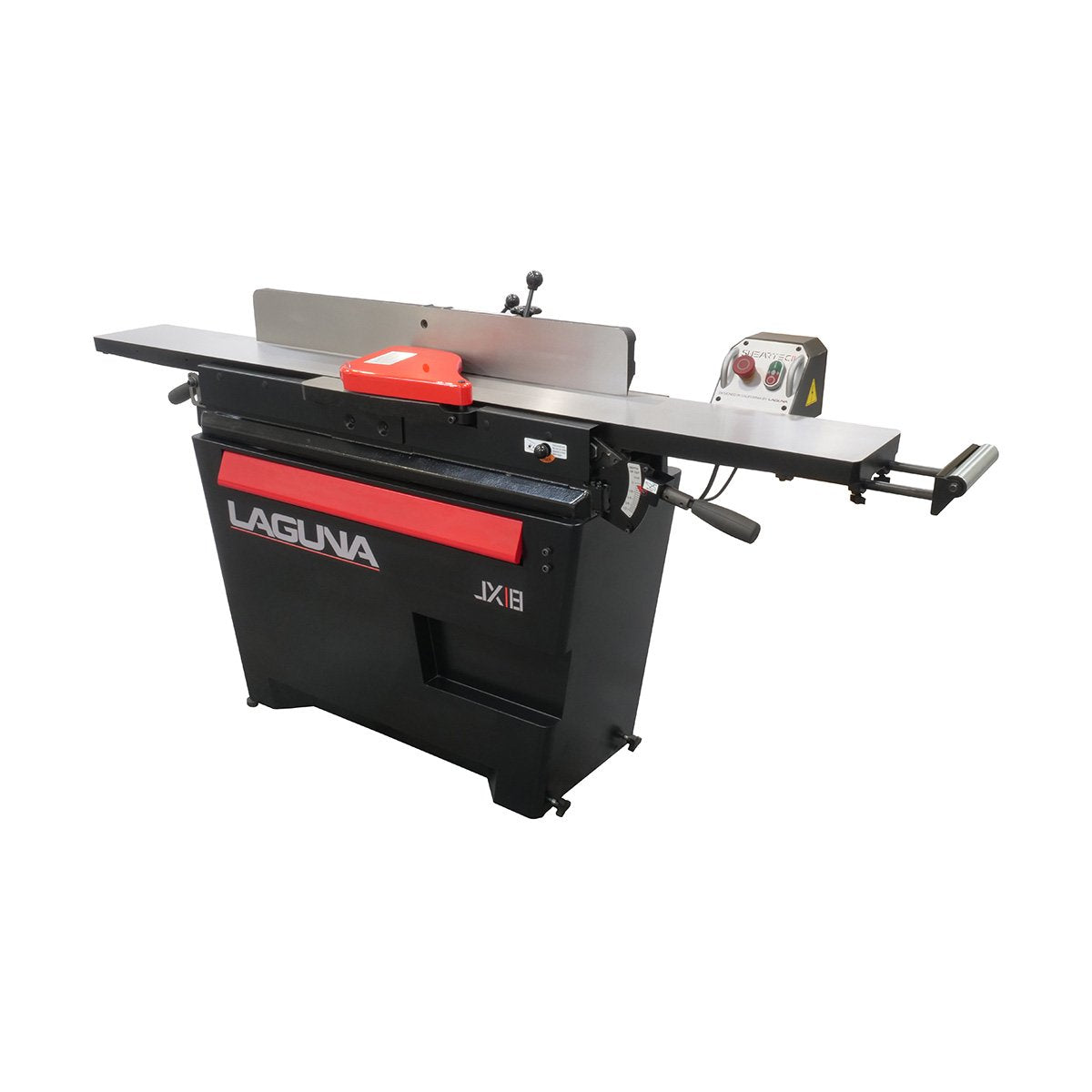

Laguna Tools JX|8 ShearTec II 8" Jointer

Laguna Tools

JX|8 ShearTec II 8" Jointer

SKU: MJ8x72P-0130

order today only 3 left in stock
$3,779.10 $4,199.00


Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

Laguna JX|8 ShearTec II 8" Jointer

SKU: MJ8x72P-0130

All-new for 2021, the Laguna JX|8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 220 volt 3 HP version.

The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife-setting jig.


  • Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
  • Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the
  • New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the
  • In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer
  • ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer.
  • Built-In Wheels – No need to purchase a separate mobility
  • Cast-Iron Tables and Fence
Motor: 3HP, 220V, 12A, 60Hz, 1-Phase
Bed Size: 8" x 72"
Rabbetting Capacity: 1/2"
Fence Size: 38" x 4-3/4" Cast Iron
Fence Tilt: ±45/90°
Maximum Depth Of Cut: 1/8"
Table Height From Floor: 31"
Dust Port Diameter: 4"
Cutterhead RPM: 5500
Cutterhead Diameter: 3-1/8"
Cutterhead Inserts: 54 in 6 Rows
Bed Adjustment: Parallelogram
Net Weight: 380 lbs.
Shipping Weight: 495 lbs
Shipping Dimensions(L x W x H): 76" x 25" x 41"
