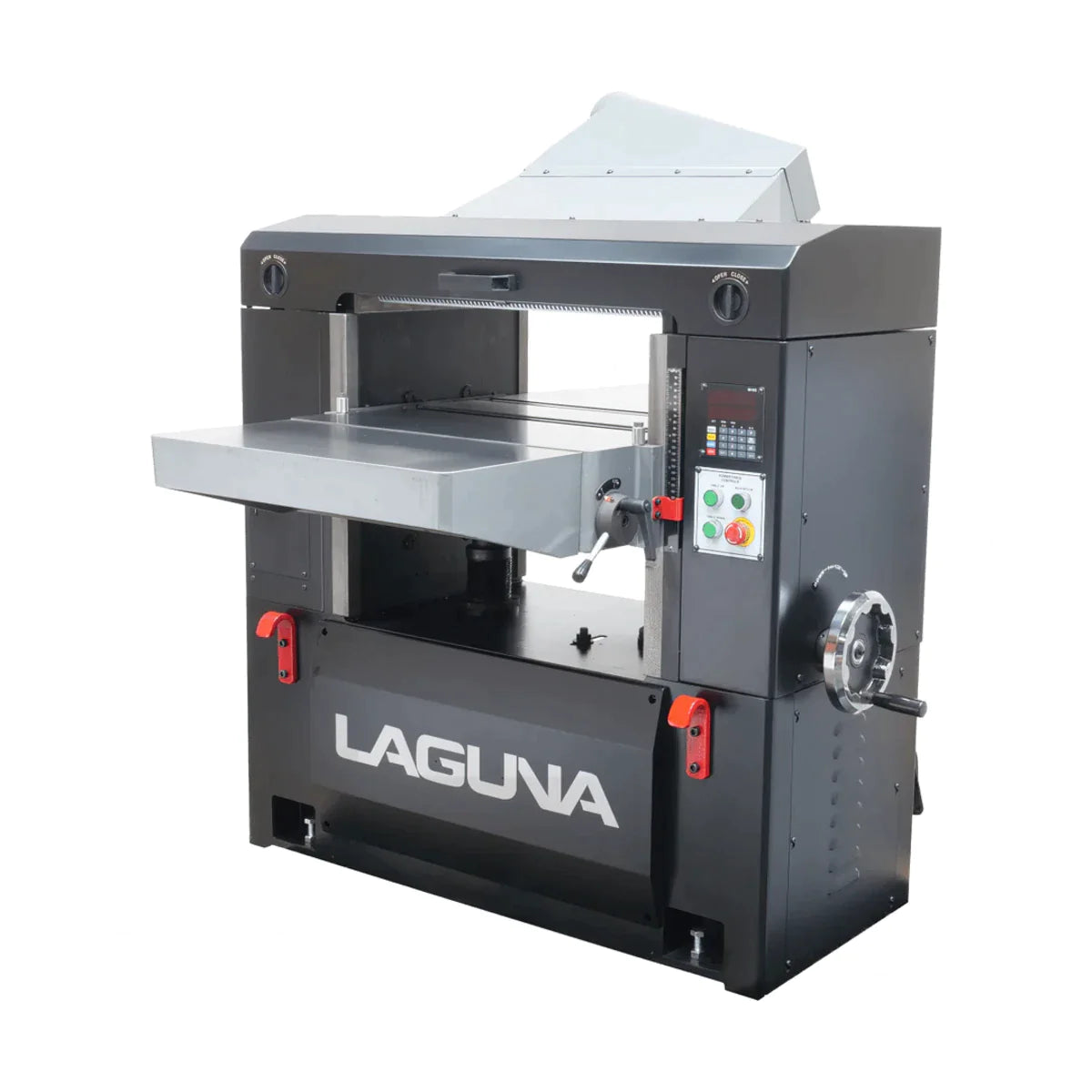

Laguna P|25 Industrial 25″ Planer

SKU: MPLAN25-15-3-0130

The P|25 Planer brings a whole new standard for Heavy Duty thickness planers. The 15HP 3 Phase motor makes sure you never run out of power even when planing full 25" boards.

Oversized bearing housings ensure ultra-smooth, quiet performance and long life. Most thickness- planers in this class have only 2 or 4 speeds and it seems they never have the right speed for the job. The Laguna 25” comes standard with Electronic Variable Speed meaning you will ALWAYS have the exact speed required.

Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You’ll never want to go back to turning a hand wheel to find your thickness (or even holding down a button for that matter!). The PLC in the Laguna Industrial 25″ planer also has automatic backlash compensation ensuring exact thicknesses.

Of course no world class planer would be complete without our incredible ShearTec II Cutterhead, which boasts 6 rows of 4 sided German carbide inserts for a total of 174 knives!


  • 15HP, 220v, 60Hz 3-Phase Main Motor
  • Digital Read Out (DRO)
  • PLC Programmable Height Setting
  • Electronic Variable Speed 10-30FPM
  • In/Out Feed Cast Extensions
  • 3" Segmented In Feed Roller
  • 2 - 3" Polished Out Feed Rollers
  • Segmented Pressure Bar
  • Adjustable Retractable Table Rollers
  • 3-1/2" ShearTec II Cutterhead
  • 4,800 RPM Cutterhead Speed
  • 5" Dust Port
  • CSA Components
Main Motor: 15HP, 220v, 37A, 60Hz 3-Phase
Feed Motor: 3/4 HP, DC Electronically Variable speed 10-30FPM
Table Lift Motor: 3/4 HP, AC
Maximum Stock Width: 25"
Maximum Stock Thickness: 9"
Minimum Stock Thickness: 1/8"
Maximum Stock Removal 1-12" Wide: 6mm (1/4")
Maximum Stock Removal 12-25″ Wide: 3mm (1/8")
Table Size (L x W): 52″ x 26″ (Including Extensions)
ShearTec II Cutterhead: 6 Row 174 Insert Knives
Cutterhead Diameter: 3-1/2"
Cutterhead Speed: 4,800 RPM
Segmented In Feed Roller: 3"
Polished Out Feed Rollers: 3"
Retractable Table Rollers: Adjustable
Dust Port: 5"
Net Weight: 1500 lbs.
Shipping Dimensions (L x W x H): 35" x 53" x 60"
