Laguna Tools PX|22 22" Planer 10HP 3-Phase

Laguna Tools

PX|22 22" Planer 10HP 3-Phase

SKU: MPLANPX2210-0130

order today only 2 left in stock
$10,499.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

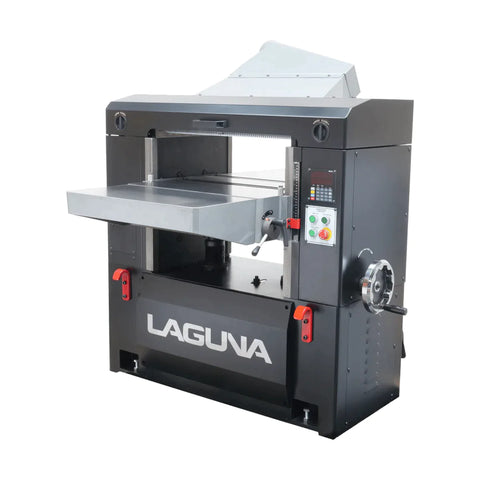

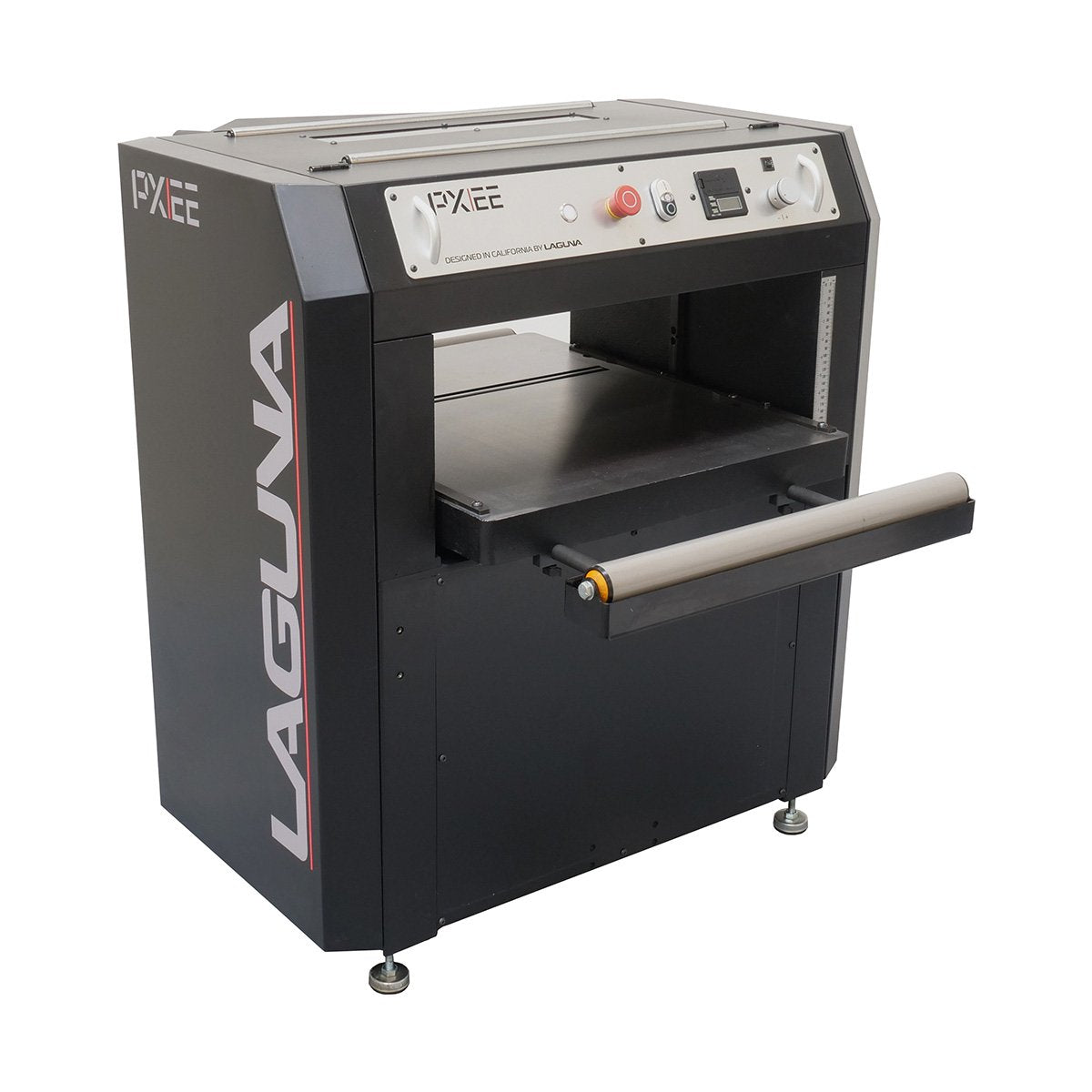

Laguna PX|22 22" Planer 10HP 3-Phase

SKU: MPLANPX2210-0130

The all-new PX|22 planers are an innovative new design for Laguna planers. The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable.

The ShearTec II cuttherhead comes as standard equipment on PX|22 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife-setting jig.

Features:

  • Motor – 10 HP 3 Phase motor
  • Segmented Infeed Roller – Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
  • Electronic Variable Speed – Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per This feature is something that is normally found on much more expensive models
  • Infeed and Outfeed Rollers – The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact
  • Digital Readout – The DRO makes setting precise thickness easier
  • Ergonomic Control Panel – Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility
  • Improved Dust Collection – The 5" diameter dust chute offers the option to point to right or left to optimize dust collection system layout
  • 4-Post Bed Support – Provides precise and consistent performance with every cut
  • ShearTec II Cutterhead – The ShearTec II is standard on the PX|22 Planer
Motor: 7.5HP, 220V, 32A, 60Hz, 1-Phase
Bed Size: 22" x 28"
Maximum Depth Of Cut: 1/4"
Maximum Stock Thickness: 8"
Minimum Stock Thickness: 1/2"
Minimum Stock Length: 9"
Maximum Stock Width: 22"
Feed Speeds: 10 – 30 FPM Variable Speed
Dust Port Diameter: 5"
Cutterhead RPM: 5000
Cutterhead Diameter: 3-1/2"
Cutterhead Inserts: 150 in 6 Rows
Net Weight: 867 lbs.
Shipping Weight: 955 lbs
Shipping Dimensions (L x W x H): 44" x 38" x 48-1/2"
