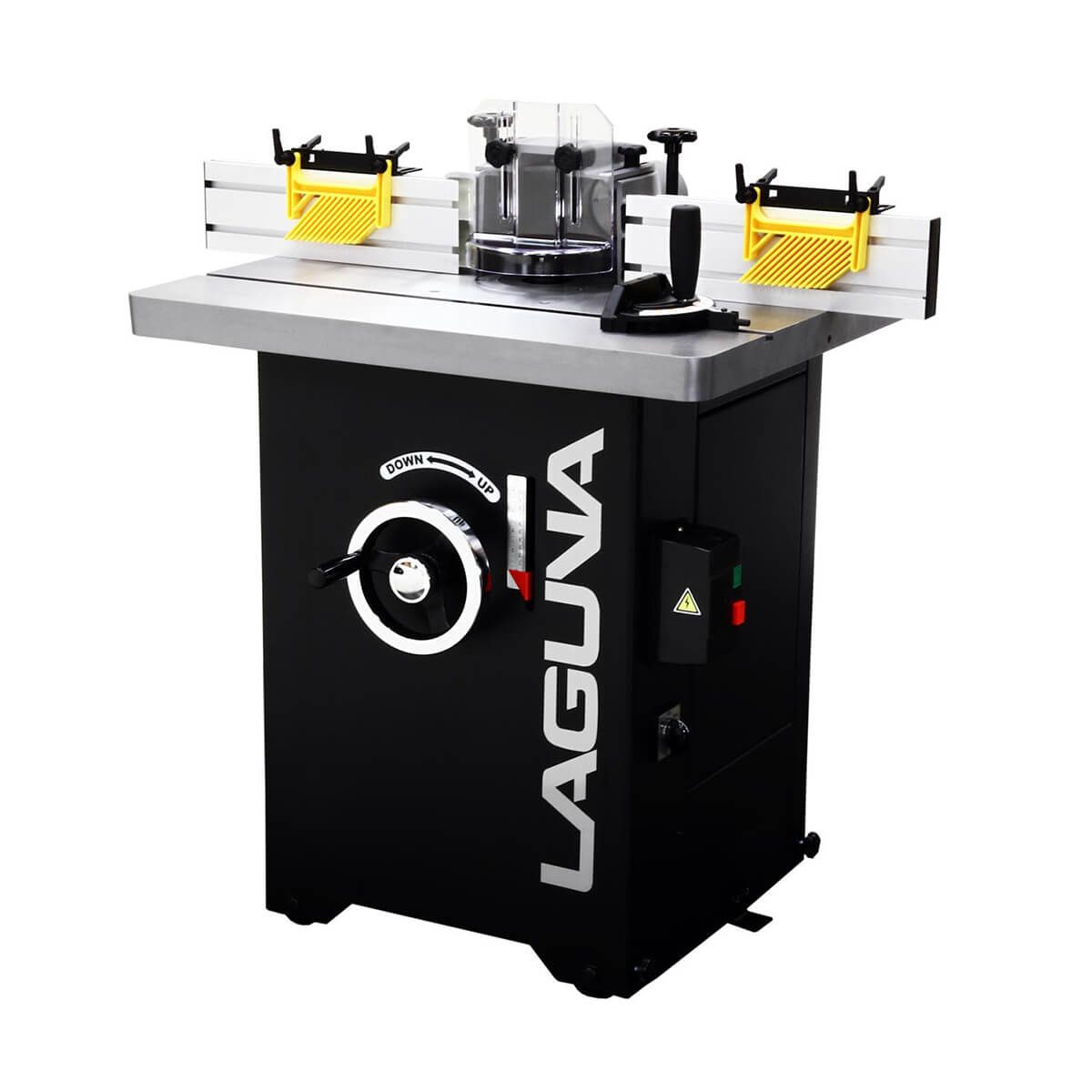

Laguna Tools MSHAP4SPD-3-0130 Compact Shaper 4 Speed

Laguna Tools

Compact Shaper 4 Speed

SKU: MSHAP4SPD-3-0130

currently Out of stock
Order Now and we will contact you with availability date

Your Credit Card will not be charged until the availability date is accepted.

$3,999.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.


Laguna Compact Shaper 4 Speed

SKU: MSHAP4SPD-3-0130

The Compact Shaper from Laguna is already regarded as best in class. Impressive precision fence and wide-range RPM make it a versatile investment for any pro. The fit and finish on this world-class machine is incredible.

You will be hard-pressed to find a better value than the Compact Shaper: 4 speeds, generous sized table, wheels built right in. Easy spindle lock makes tool changes a snap. One of the most impressive features is the speed change. A simple pull of a handle compresses the distance from the spindle to the pulley, changing speeds along the way. Another outstanding detail is the flat poly-groove belt which transfers more power with less vibration; something you won’t find in this price range anywhere else.

Features:

  • 3HP, 220V, 60Hz, 1-Phase Motor
  • 32" x 26-1/2" Table Size
  • 4" Spindle Travel
  • Includes 3/4" and 1-1/4" Spindles
  • includes 1/4" and 1/2" Router Collets
Motor: 3HP, 220V, 60Hz, 1-Phase
Capacity Under Nut: 4″ (1-¼″ Spindle)
Spindle Speeds: 4000, 6000, 8000, and 10000 RPM
Forward/Reverse: Yes
Table Opening Diameter: 6-¼"
Table Insert Opening Diameter: 2-½″, 4-5/16"
Table T-Slot: Yes
Fence Size: 4-13/16″ x 16"
Drive Belt: Flat Poly-Groove
Table Height From Floor: 34"
Dust Port Diameter: 4"
Micro Adjustment On Fence: Yes
Wheel System: Built-In
Net Weight: 150 lbs.
Shipping Dimensions: 40"L x 30"W x 42"H
Shipping Weight: 500 lbs.
