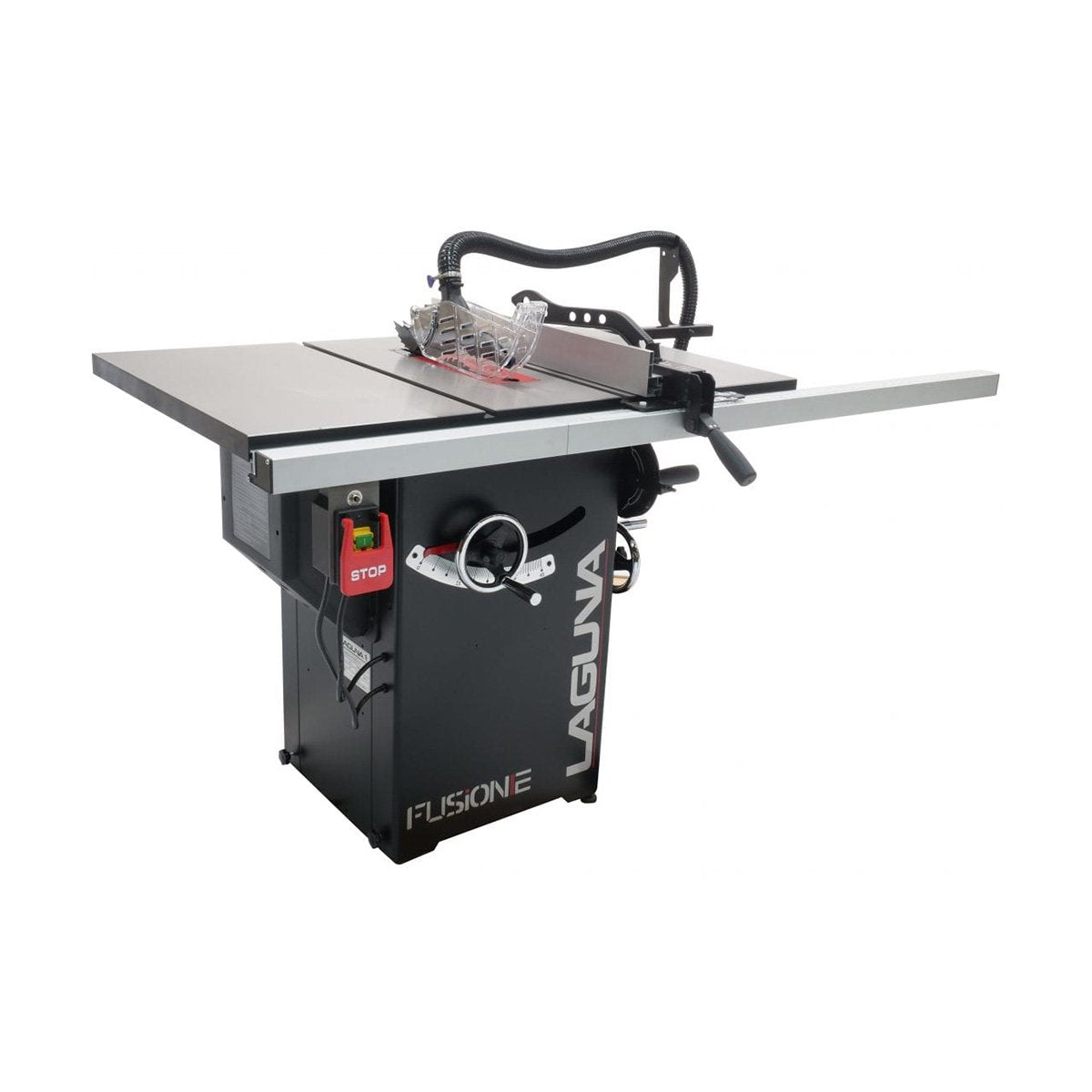

Laguna Tools F2 Fusion Table Saw 1.75HP - 37" RIP

Laguna Tools

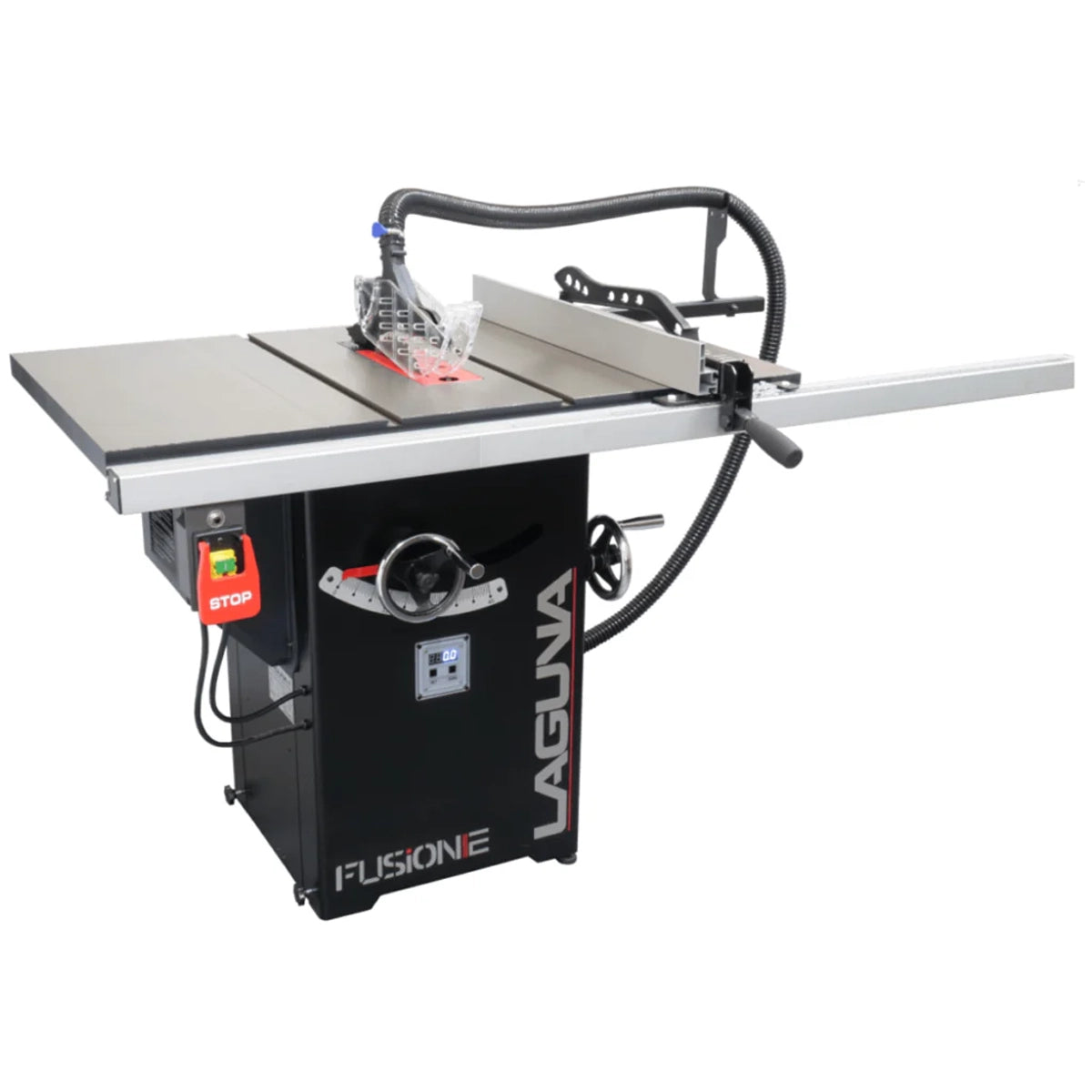

F2 Fusion Table Saw 1.75HP - 36" RIP

SKU: MTSF236110175-0130

order today only 4 left in stock
$2,299.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.


Laguna F2 Fusion Table Saw 1.75HP - 36" RIP

SKU: MTSF236110175-0130

The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.

Features:

  • 1.75HP 110V 1-Phase TEFC Motor
  • Full Cabinet Body
  • Cabinet Mounted Arbor
  • Cast Iron Table & Wings
  • European Hi-Lo Fence
  • Premium Zero Clearance Throat Plate
  • Fusion Hi-Low Dust Collection
  • Fusion Over-Under Trunnions
  • Reset Switch
  • Quick-Release Blade Guard & Splitter
  • Riving Knife Included
  • Push Stick Included
  • Miter Gauge Included
  • Blade Changing Tool Included
  • Integrated Tool Storage
  • Premium Handles
  • Included 10 x 60T
  • Premium Arbor & Motor Bearings

* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position adjustable.

Motor: 1.75HP. 110V, 60Hz, 1-Phase
Arbor Size: 5/8"
Arbor Speed: 4500 RPM
Blade Size: 10"
Blade Tilt Direction: Left
Maximum Blade Tilt: 45 Degrees
Maximum Depth of Cut At 90 Degrees: 3-1/8"
Maximum Depth of Cut At 45 Degrees: 2-1/8"
Maximum Rip Right of Blade w/Included Fence & Rails 37"
Floor to Table Height: 35"
Table Size with Extension Wings Width: 44"
Table Size with Extension Wings Depth: 27"
Distance Front of Table to Center of Blade: 13-3/8"
Distance Front of Table to Blade At Maximum Cut: 8-21/32"
Dust Port: 4"
Overall Width (side-to-side): 66-13/16"
Overall Depth (front-to-back): 39-3/8"
Shipping Weight: 368 lbs.
