Laguna Tools
LT24x17 Bandsaw
LT24x17 Bandsaw
SKU: SKU:MBAND245200
Laguna LT24x17 Bandsaw SKU: MBAND245200 Overview If you are working on jobs that require a large table and extra throat capacity, then this is the machine for you. Boasting a...Full description below
Special Order Item
Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
Share

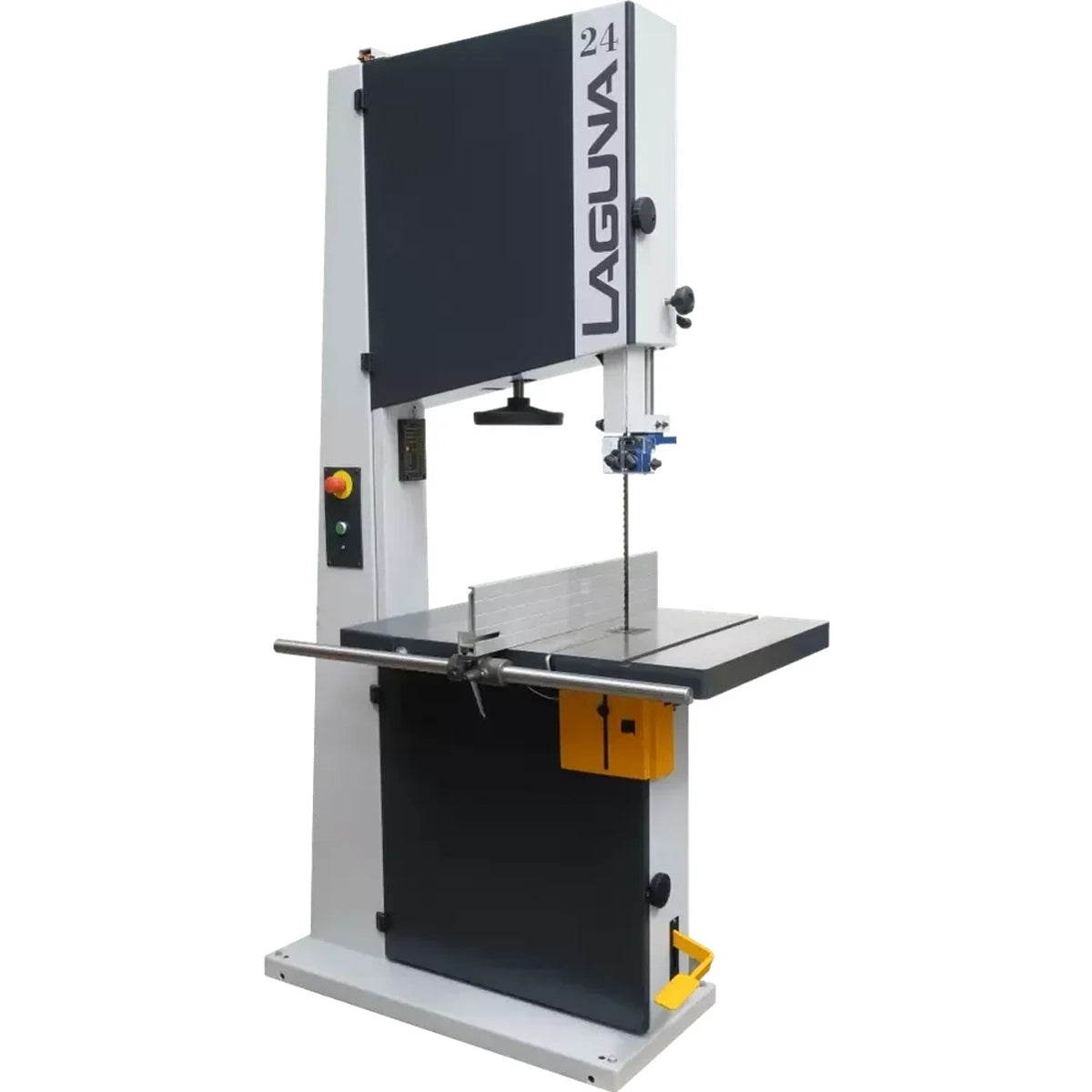

Laguna LT24x17 Bandsaw
SKU: MBAND245200
- Overview
- Specifications
If you are working on jobs that require a large table and extra throat capacity, then this is the machine for you. Boasting a 17-5/8″ resaw capacity that is driven by an American made 5 HP, single phase motor and all the trappings known in the Laguna Tools line of bandsaws. The LT24x17 HD Bandsaw features that include geared trunions, EZ Tension indicator, foot brake, high/low fence system and our award-winning Laguna Guide System with Space Age technology. Expect our renowned Laguna quality and built Laguna Tough with all the innovations!
Features:
- 17-5/8″ Resaw Capacity
- 5.0HP 220V Leeson Motor
- Amp Breaker: 30-40
- *Minimum Blade Width: 1/8″ – 1-1/4″
- Maximum Blade Width: 1-1/2″
*Optional cool blocks required for blades less than ¼”
*Blade NOT included
| Motor: | 5.0HP, 220V 60Hz, 1-Phase |
|---|---|
| Resaw Capacity: | 17-5/8″ |
| Throat Capacity: | 23-1/4" |
| Blade Length: | 183" |
| Minimum Blade Width: | 1/8″ (*with optional Cool Blocks) or 1/4″ standard |
| Maximum Blade Width: | 1-1/2" |
| Blade Guides: | Laguna Guides |
| Upper Guide: | Rack and Pinion |
| Table Size: | 24″ x 34-1/2″ |
| Table Height: | 35" |
| Fence: | High/Low Aluminum Standard |
| Overall Height: | 84-1/2" |
| Base Size: | 15″ x 41-3/8" |
| Dust Port: | One - 4" |
| Net Weight: | 725 lbs / 825 lbs |
| Shipping Dimensions (L x W x H): | 36″ x 40″ x 96″ |
