Next Wave CNC 10024 Shark HD520

Next Wave CNC

Shark HD520

SKU: 10024

currently Out of stock
Order Now and we will contact you with availability date

Your Credit Card will not be charged until the availability date is accepted.

$6,950.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

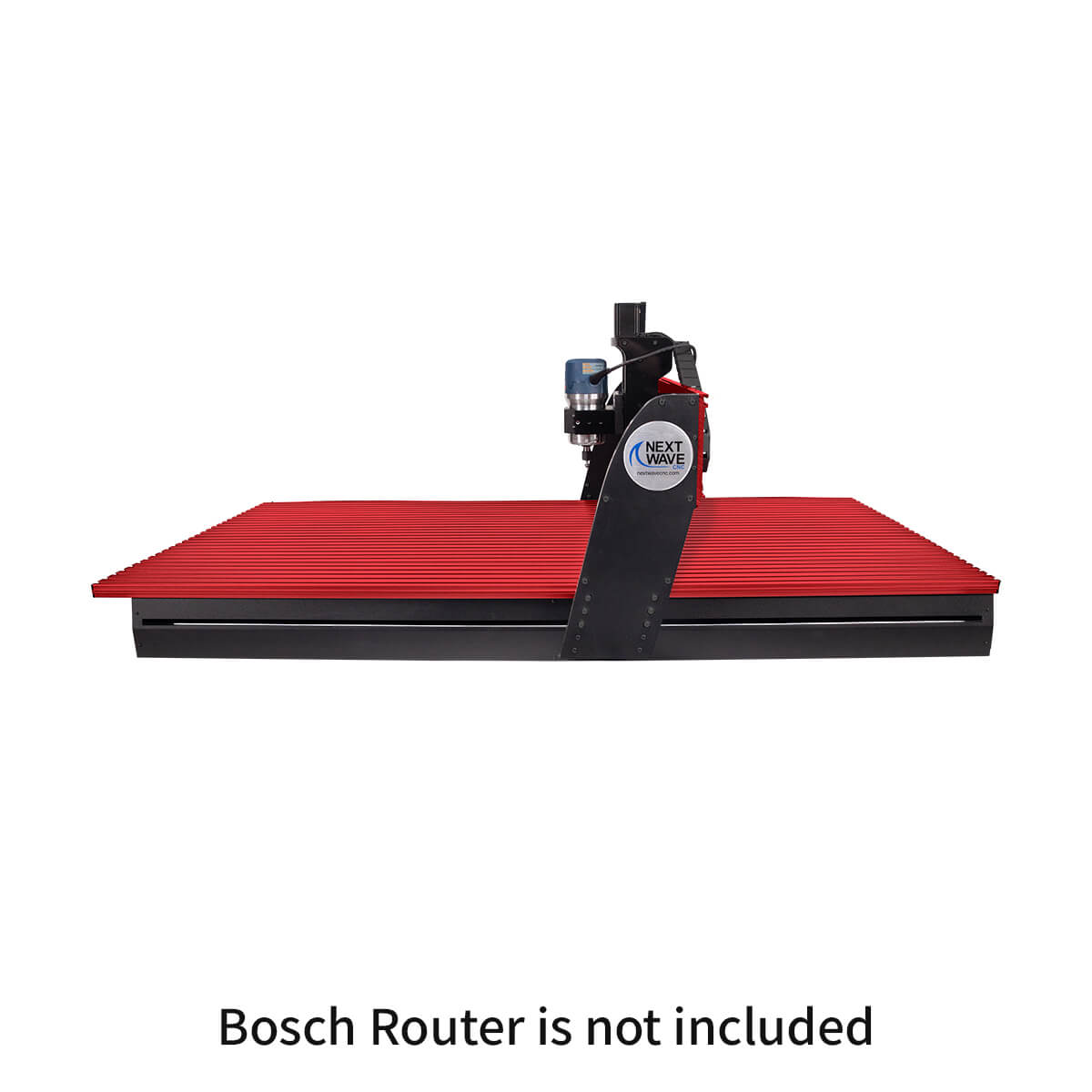

Next Wave CNC Shark HD520

SKU: 10024

The Shark HD520 ® CNC is a must-have tool for any sized shop. The Shark HD520 ® will handle all your machining needs, whether it’s in a home shop environment or on the production floor. The HD520 ® comes standard with everything you need to quickly get it set up and running: the latest version of Vectric VCarve Desktop design software, a color pendant controller, 2 hold-down clamps, carbide V-bit, and Next Wave CNC's exclusive, patented Virtual Zero Unlimited software.

Built with industrial-grade components, the Shark HD520 ® also features a heavy-duty aluminum and steel reinforced gantry, a new extruded aluminum router mount system, interlocking aluminum table, linear rails, and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axis. The Shark HD520 ® is the perfect tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics. The Shark HD520 ® is fully compatible with Next Wave Automation’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more. The Shark HD520 ® is made in the USA, comes with a full one-year warranty, and includes lifetime technical support so you can buy with confidence.

Built with industrial-grade components, the Shark HD520 ® also features a heavy-duty aluminum and steel reinforced gantry, a new extruded aluminum router mount system, interlocking aluminum table, linear rails, and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axis. The Shark HD520 ® is the perfect tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics. The Shark HD520 ® is fully compatible with Next Wave Automation’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more. The Shark HD520 ® is made in the USA, comes with a full one-year warranty, and includes lifetime technical support so you can buy with confidence.

Virtual Zero Unlimited, Next Waves exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed work piece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle.

Features:

  • Table dimensions: 28'' x 63"
  • XYZ travel: 25'' x 50'' x 7''
  • Linear guides and bearings on the gantry
  • Anti-backlash, wear-compensated leadscrews on all axis
  • Interlocking rigid aluminum table with virtually unlimited clamp positioning
  • Aluminum gantry backplate for heavy machining capabilities
  • Aluminum router mounting clamp
  • Steel encased gantry legs for increased rigidity
  • Automatic router on and off control
  • X & Y homing capability
  • USB interface
  • Includes the latest version of VCarve Desktop design software and Vector Art 3D Sampler Pack.
  • Includes 2 Hold Down clamps
  • Includes 1 Carbide V bit
  • Color Touch Screen pendant controller system
  • Includes Next Wave Ready2Control basic software
  • Virtual Zero Technology
  • 110/115 V
  • Overall dimensions: 36-1/4'' W x 63'' L x 24-1/2'' H
  • Made in USA
  • 2 year factory warranty*
  • Lifetime technical support
  • Requires a PC computer with USB 2.0 port ( not included)
  • CNC Shark HD520® is fully compatible with the following routers (sold separately) Dewalt 610, 616, 618, PC 890, Bosch 1617 1nd 1618
