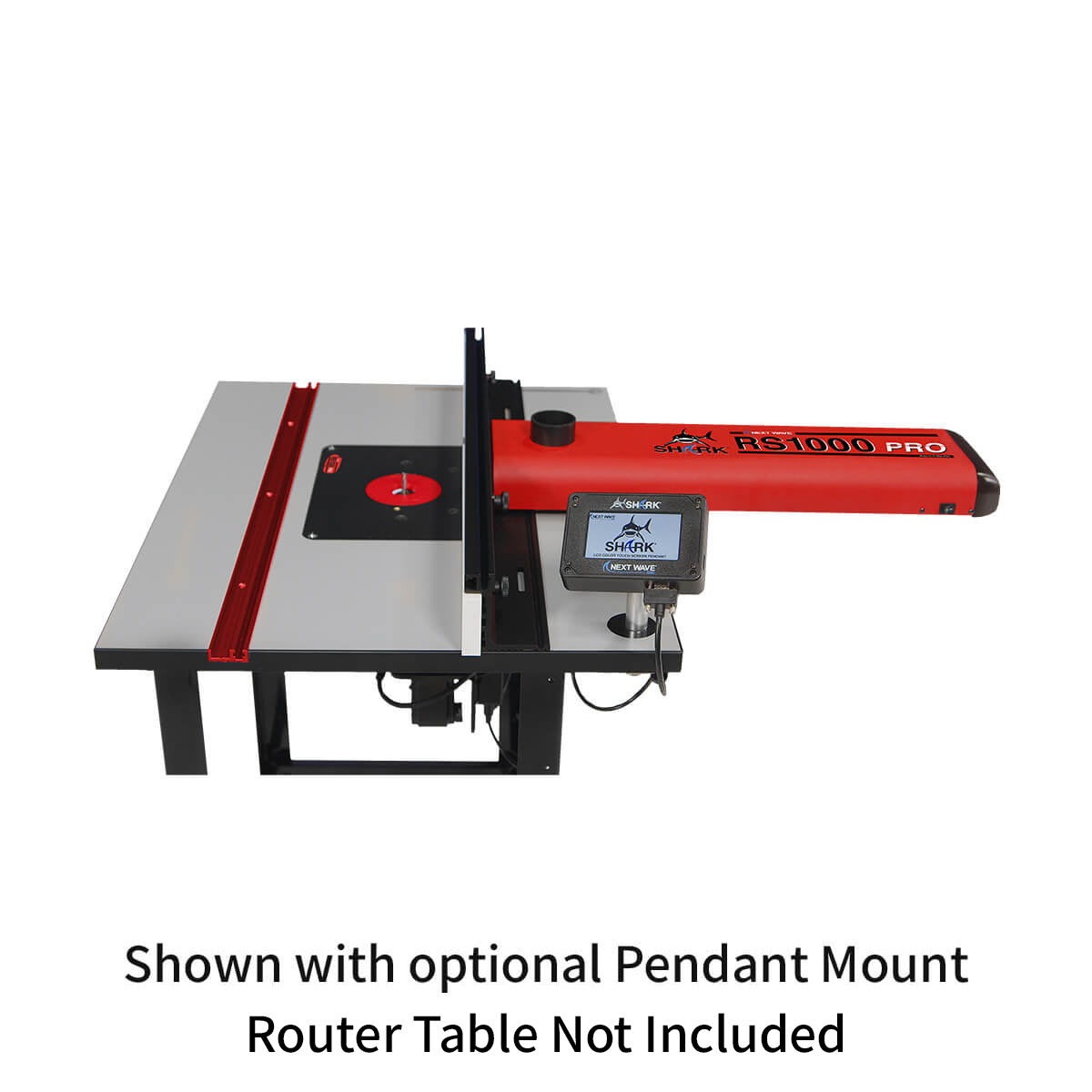

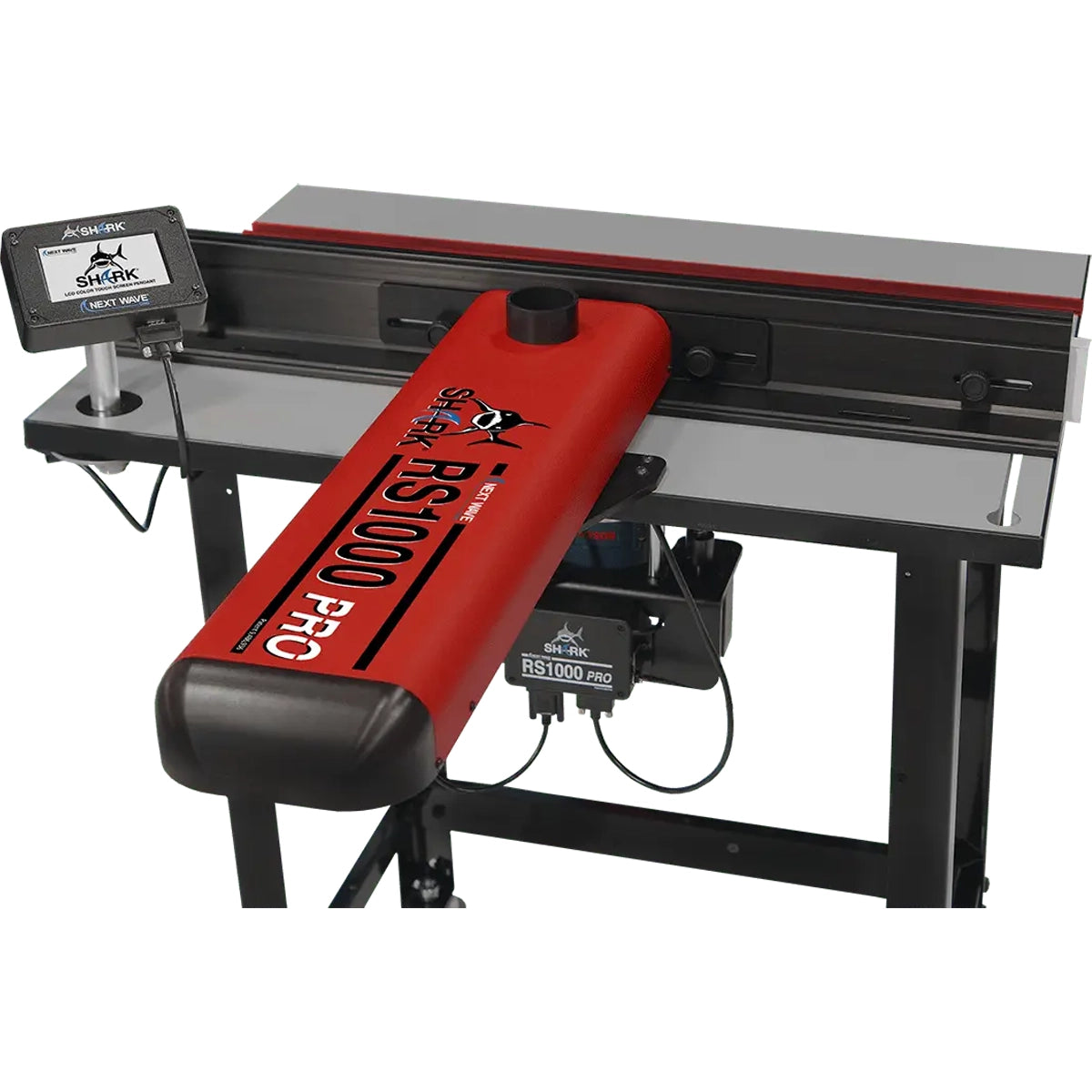

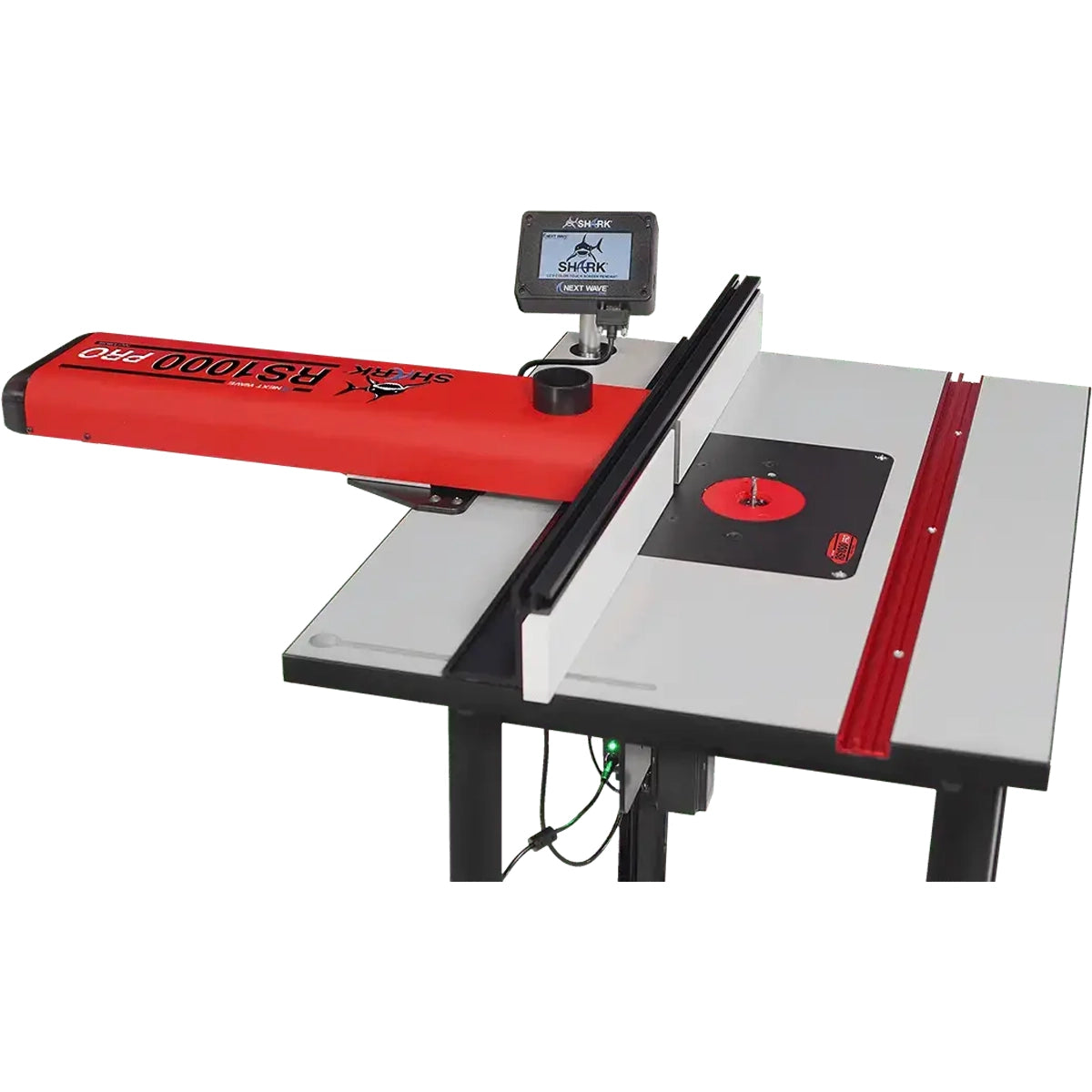

RS1000 PRO CNC Router Lift

The Shark RS1000 PRO® transforms nearly any router table into a full-fledged 2 Axis CNC allowing you to adjust your router fence or bit height by as little as .001”. The Shark RS1000 PRO® comes with preloaded apps to do over a dozen common router and specialty joinery functions, such as Box Joints, Dovetail, Dado, Lock Miter and many more. The generic plate size (9 1/4″ x 11 3/4″) fits most router tables and accepts any standard 3.5″ diameter router motor.

Features:

• True two Axis CNC capability for your Router Table
• Fence and lift move accurately in direct relationship to the bit with movement as little as .001”
• Full 12” Fence travel for larger projects and 3½” of lift travel to accommodate spindles.

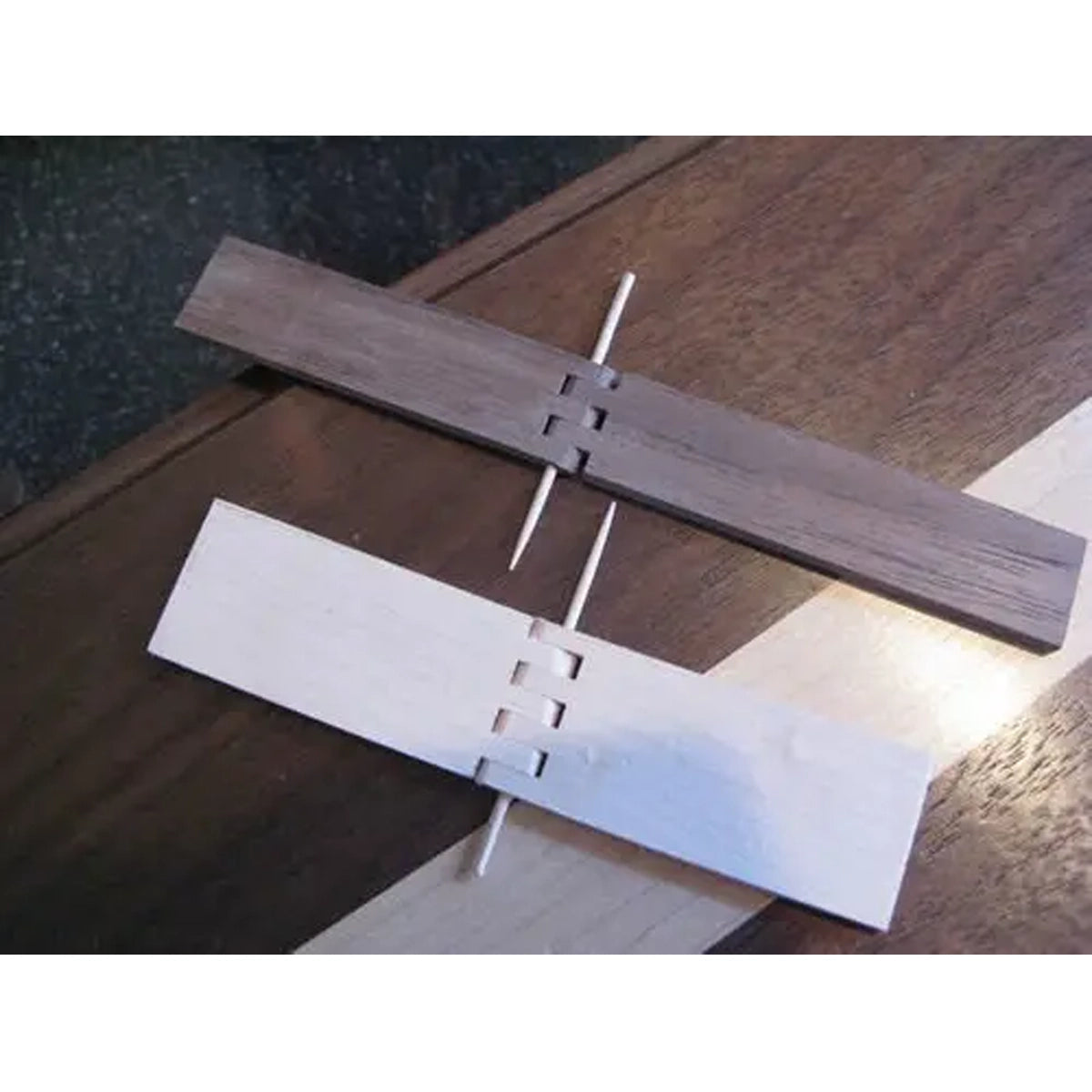

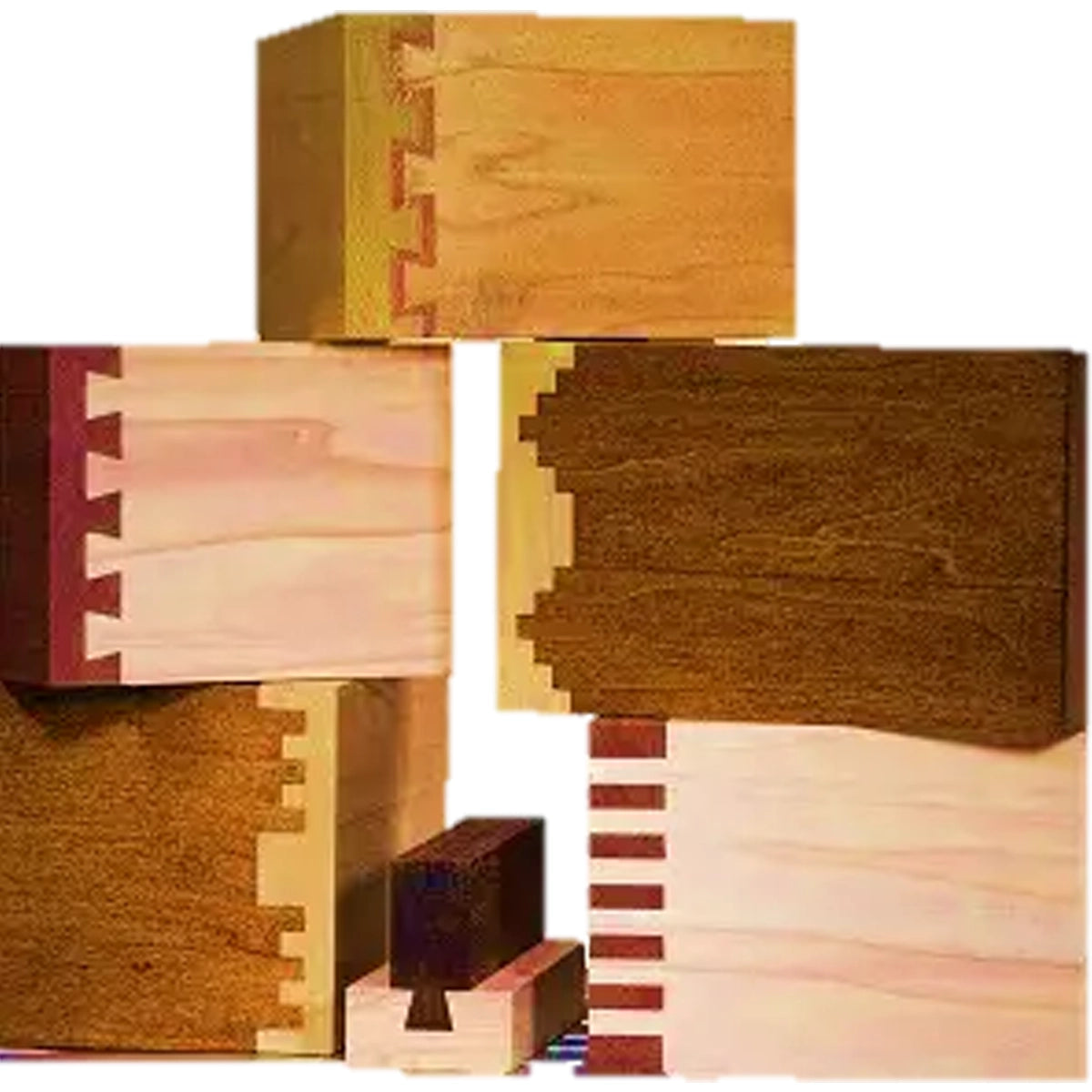

• Built-in Joinery Apps – Dovetail, Box Joint, Rabbet, Dado, Lock Miter, and more
• Reduces setup time up to 90%
• Toggles between standard, metric and decimal measurements so you don’t have to convert dimensions.
• Programmable memory locations for commonly used settings.
• Works with any standard 3.5” Router motor.
• Standard plate size - 9-1/4" X 11-3/4"
• Removable table inserts for larger bits
• Integrated 2 ¼” dust port
• Simple to use, type in desired measurement and press OK
• Works with almost any Router Table
• 2 year factory warranty*

Includes:
Touch-off plate
Leveling System designed to adapt to most tables
Built-in Joinery Apps – Dovetail, Box Joint, Rabbet, Dado, Lock Miter, and more
Color LCD pendant
Integrated 2 ¼” dust port
32″ Wide Router Fence with replaceable inserts and safety accessories
9-1/4″ X 11-3/4″ Phenolic router plate with removeable inserts
U.S. Based Technical Support
Made in the USA

Add ease and versatility to your RS1000 with the RS Sliding Miter Guide
