Next Wave CNC 20123 7 Watt Laser Module

Next Wave CNC

7 Watt Laser Module

SKU: 20123

Special Offer

Promo ends


Upon receipt of your order you will be contacted to discuss delivery time and shipping options.

Free Shipping

Click Checkmark for Details

Special Offer

Promo ends

*Free items may be shipped with your order or at a later date depending on inventory levels at the time of ordering.

Next Wave CNC Shark 7 Watt Laser Module

SKU: 20123

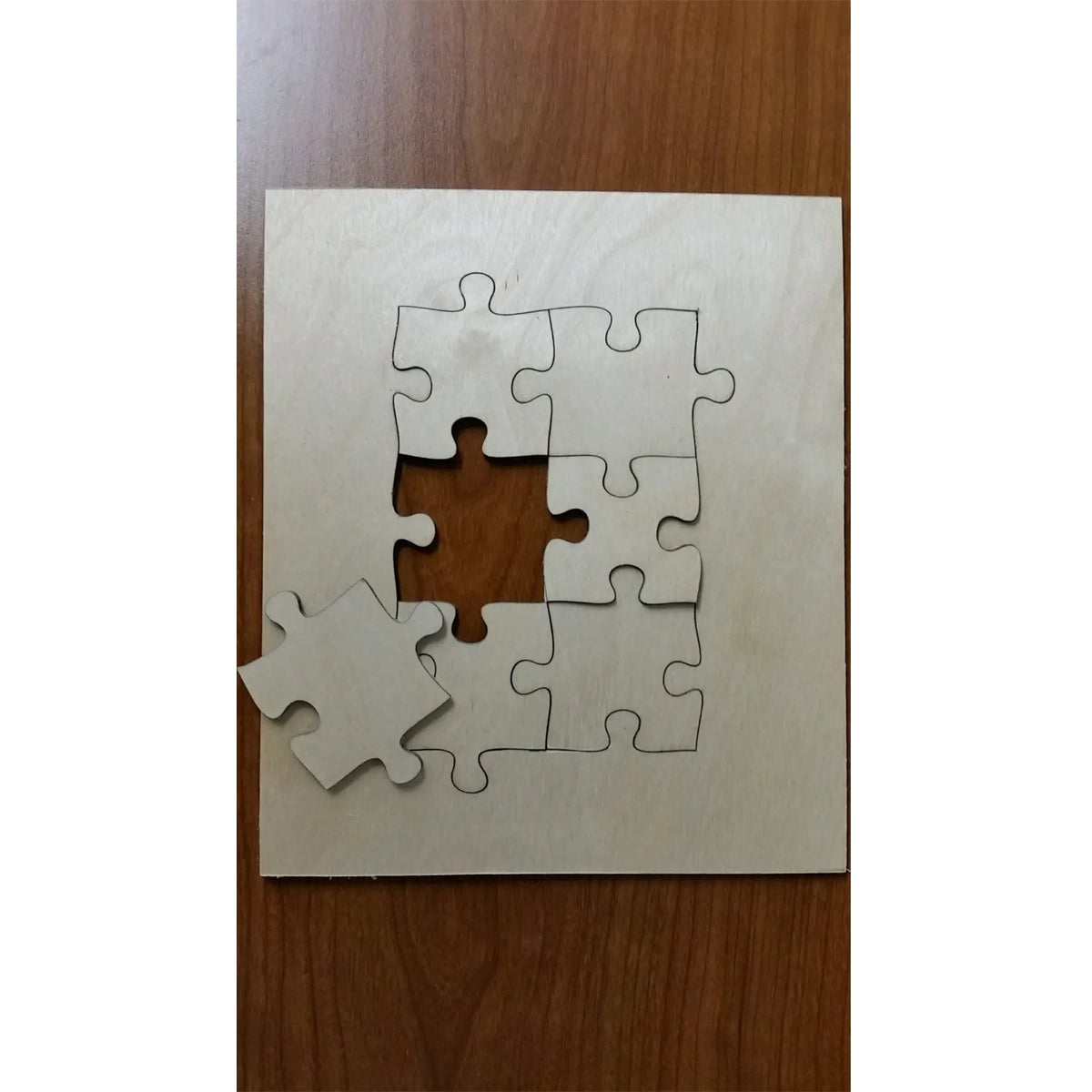

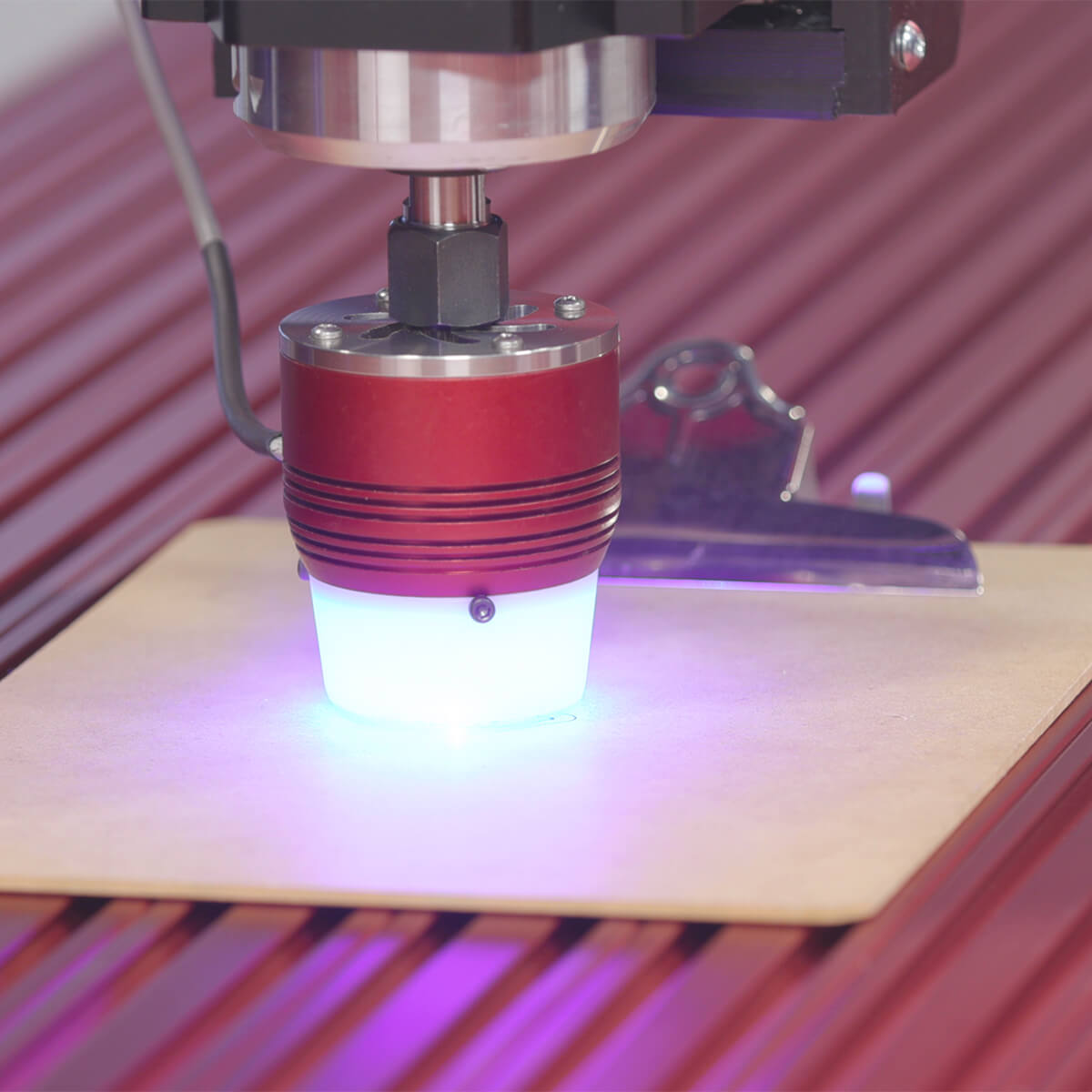

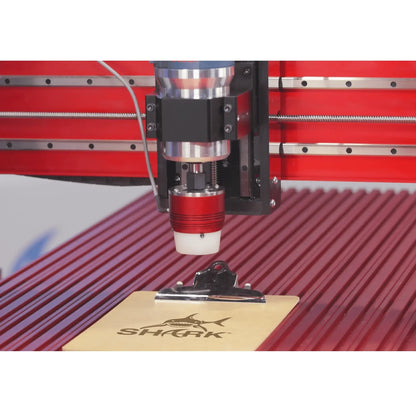

Next Wave CNC's SHARK Accessories,7 Watt Solid State Laser Module boasts enough power to engrave wood, leather, and many other materials as well as the ability to cut thin soft materials like balsa, basswood, foam, paper, and fabric. The Solid-State Laser module is fully compatible with all HD-style pendant-controlled machines and Piranhas Series CNC machines. All necessary components are included, and the module is easily mounted or removed by simply chucking it into the ¼” router collet allowing you to virtually plug and play without the need to remove your router


  • High power 3A current source
  • Generate true Raster images at 1000 levels of gray
  • Integrated cooling fan
  • Soft start for diode protection
  • True PWM control for smoother grayscale images
  • Digitally isolated control input
  • LED status lights for input laser enabled and laser on
  • ESD protection
  • Thermal shutdown control
  • Over burn compensation control
  • Laser test functionality for easy and accurate laser positioning

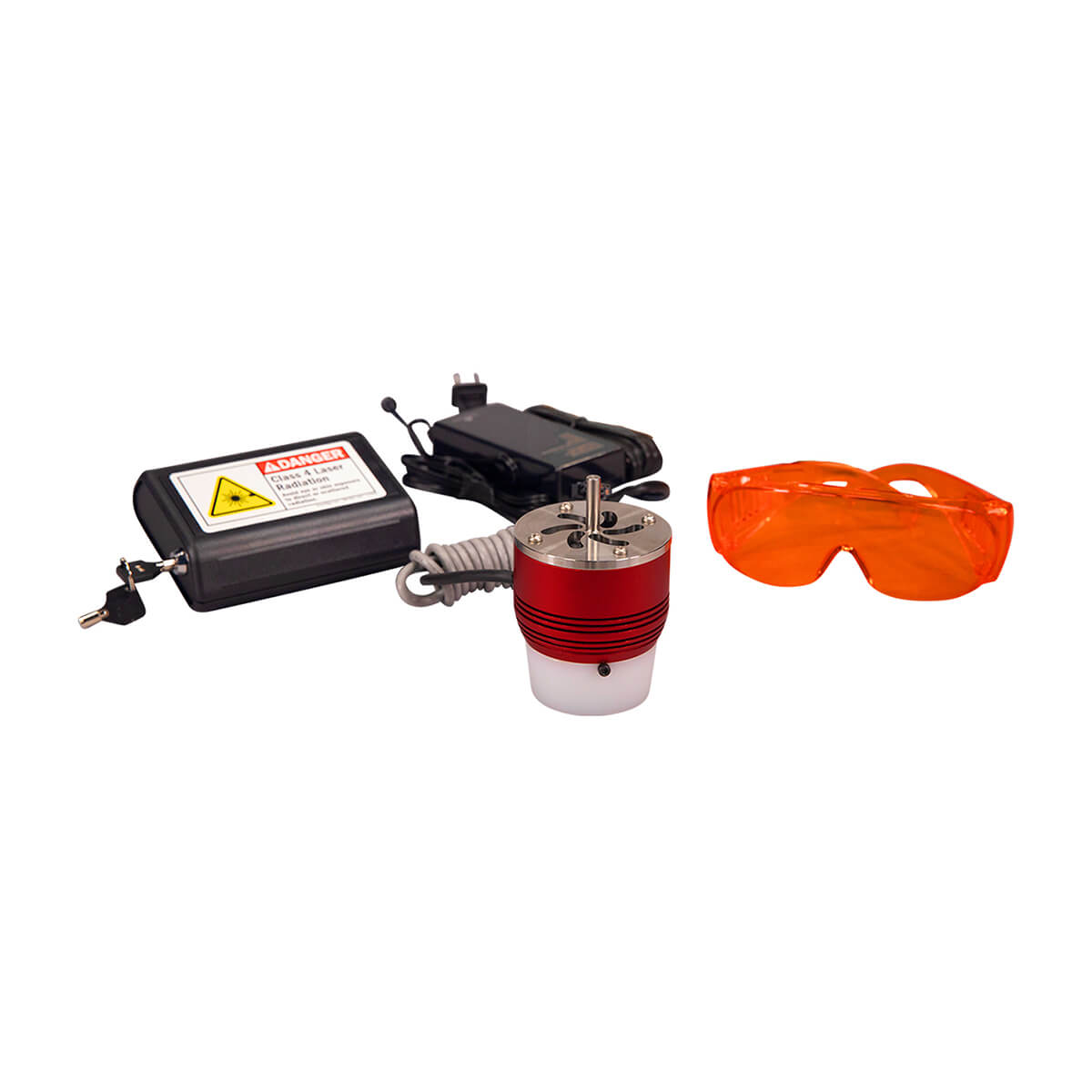

The kit is designed to fully comply with high-powered Class 4 laser regulations.

  • -Keyed switch that enables the laser
  • Safety Goggles for 445nm Lasers
  • Multiple safety interlocks
  • Power fault protection preventing the beam from activating after a power failure.
