Nova G3 Pen Turning Wood Lathe Chuck Bundle


G3 Pen Turning Chuck Bundle

SKU: 48265C

order today only 1 left in stock


Free Shipping

Click Checkmark for Details

Nova™ G3 Pen Turning Chuck Bundle

SKU: 48265C

The NOVA G3 Woodturning Direct Thread (non-insert) 1? x 8TPI LH/RH is a 4 Jaw self-centering reversible geared chuck. The strong but lightweight body has less overhang which is perfect for smaller lathe spindles. The small 1.79? body length delivers less overhang from the spindle than the larger geared chucks reducing stress on smaller lathe spindles.

With unique NOVA features such as Auto Stop, Copper Composite Jaw Slides, Woodworm Screw, Comfortable T-Bar Handle and 2? Jaws as standard, this chuck is fully featured. Powerful TuffLock™ gearing with precise, hardened action delivers incredibly smooth strength for a solid, vibration-free performance. Enhanced Jaw Gearing and Reverse Lock features that ensure this chuck will remain engaged and locked on the spindle for use in forward and reverse.

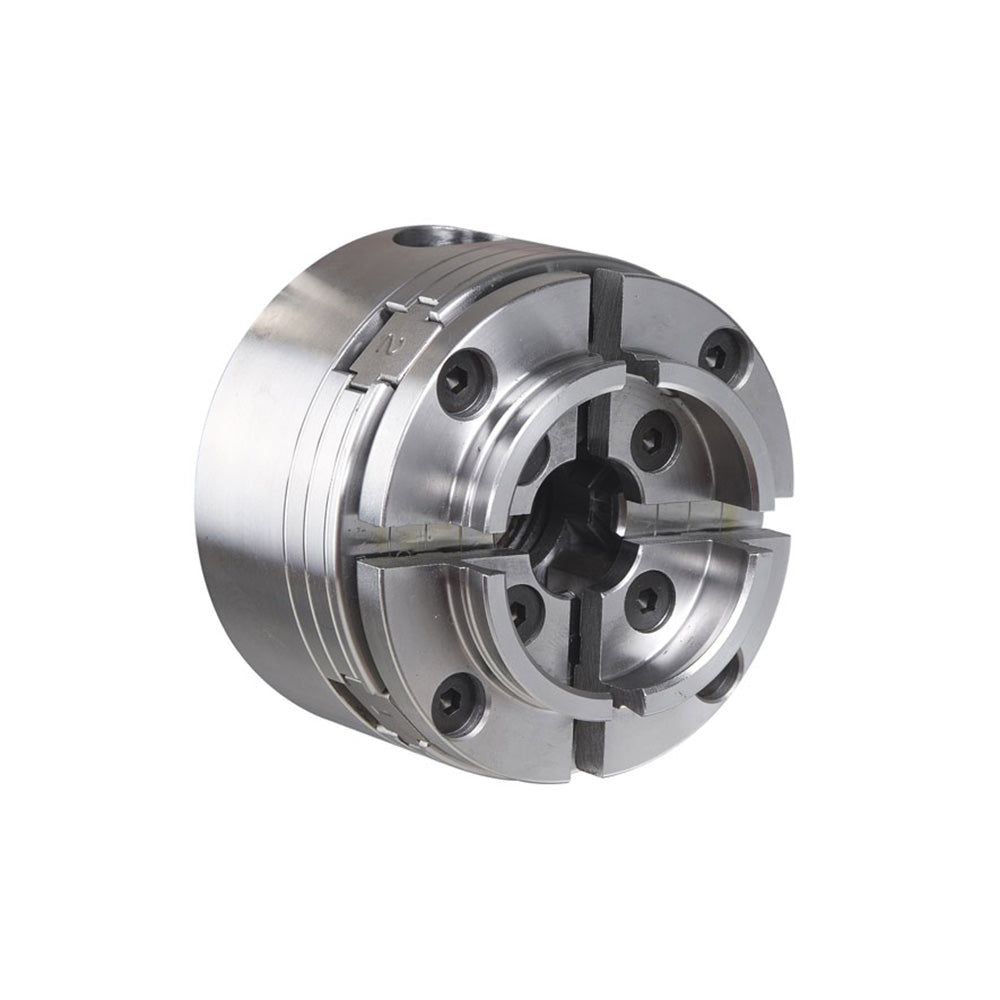

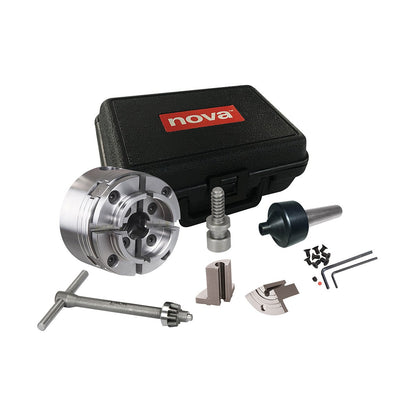

48232 G3 Direct Thread 1” x 8TPI Reversible Chuck
50mm/2” Jaws

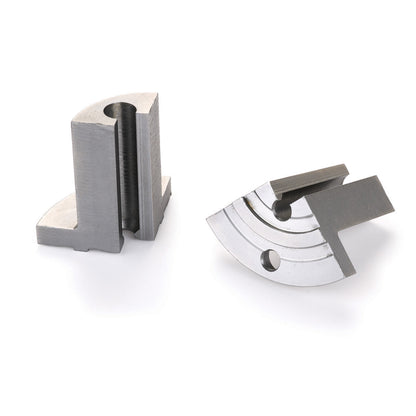

Pen Plus Jaws

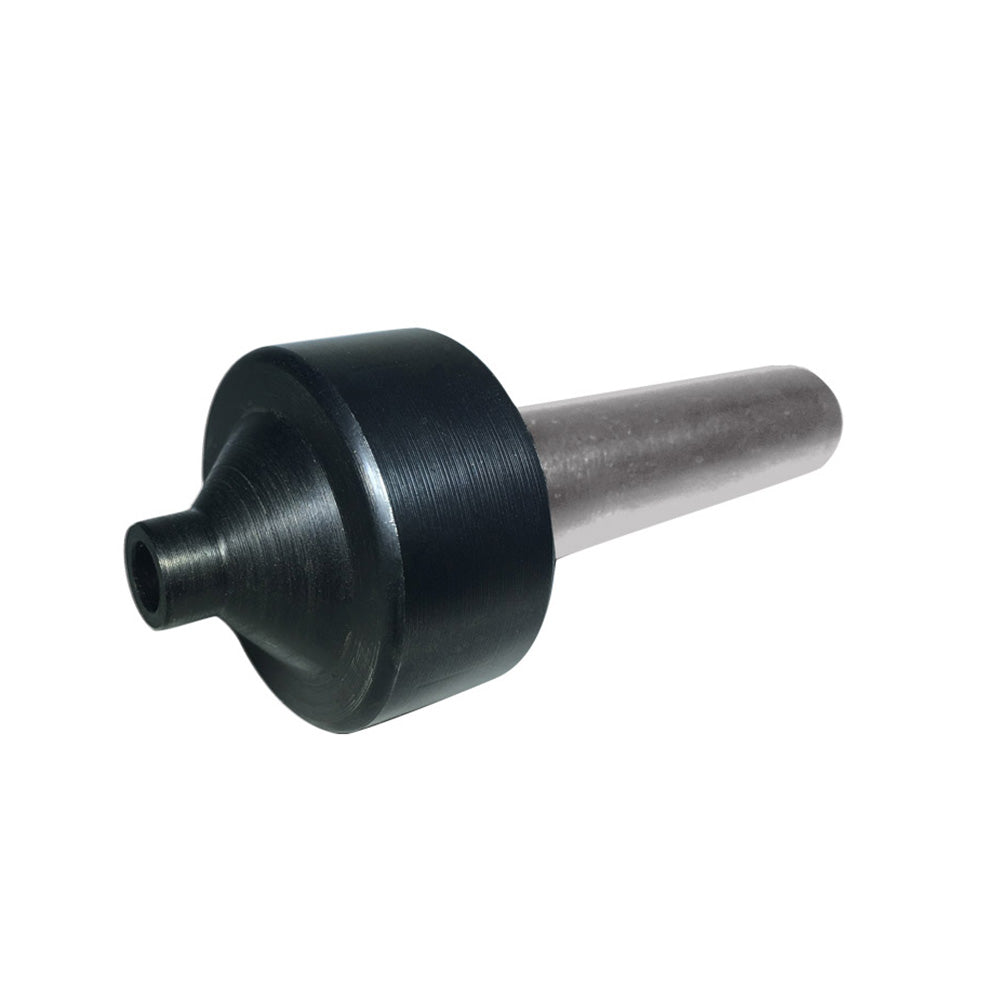

Mandrel Saver
T-Bar Chuck Key Handle
Woodworm Screw
Storage Case


  • Quality materials used throughout for long life in tough woodworking conditions.
  • Precision machined from a single solid steel billet for maximum performance.
  • High Tech Precision Composite Jaw Slides. Special NOVA Woodturning Dovetail Profile on Jaws
  • Special NOVA Woodturning profile on Jaws to cut into and grip wood fibers firmly
  • Powerful Geared Grip with TuffLock™ technology. Precise, hardened geared action delivers incredible smooth strength. Solid, vibration-free.
  • Auto Safety Stop Feature. Jaw slides can’t protrude past the chuck body.
  • Single-Handed Operation. Chuck key has a fast, positive location, easy and comfortable to use. More time spent turning and less time spent preparing.
  • Safe Lock™ Woodworm Screw included.
  • Open back for easy cleaning and to reduce weight on smaller lathe spindles
  • Small, Compact Design. Minimizes load on small spindles and bearings.
  • Direct Threaded 1"x 8TPI RH/LH
  • Up to 350mm/14" diameter, bowls using 50mm/2” Jaws (supplied with chuck)
  • Up to 50mm/2" length spigots (using 50mm/2” Jaws (supplied with chuck)

For use on lathes with 1-1/4" x 8 TPI spindle - order the King KW-200 sold separately
