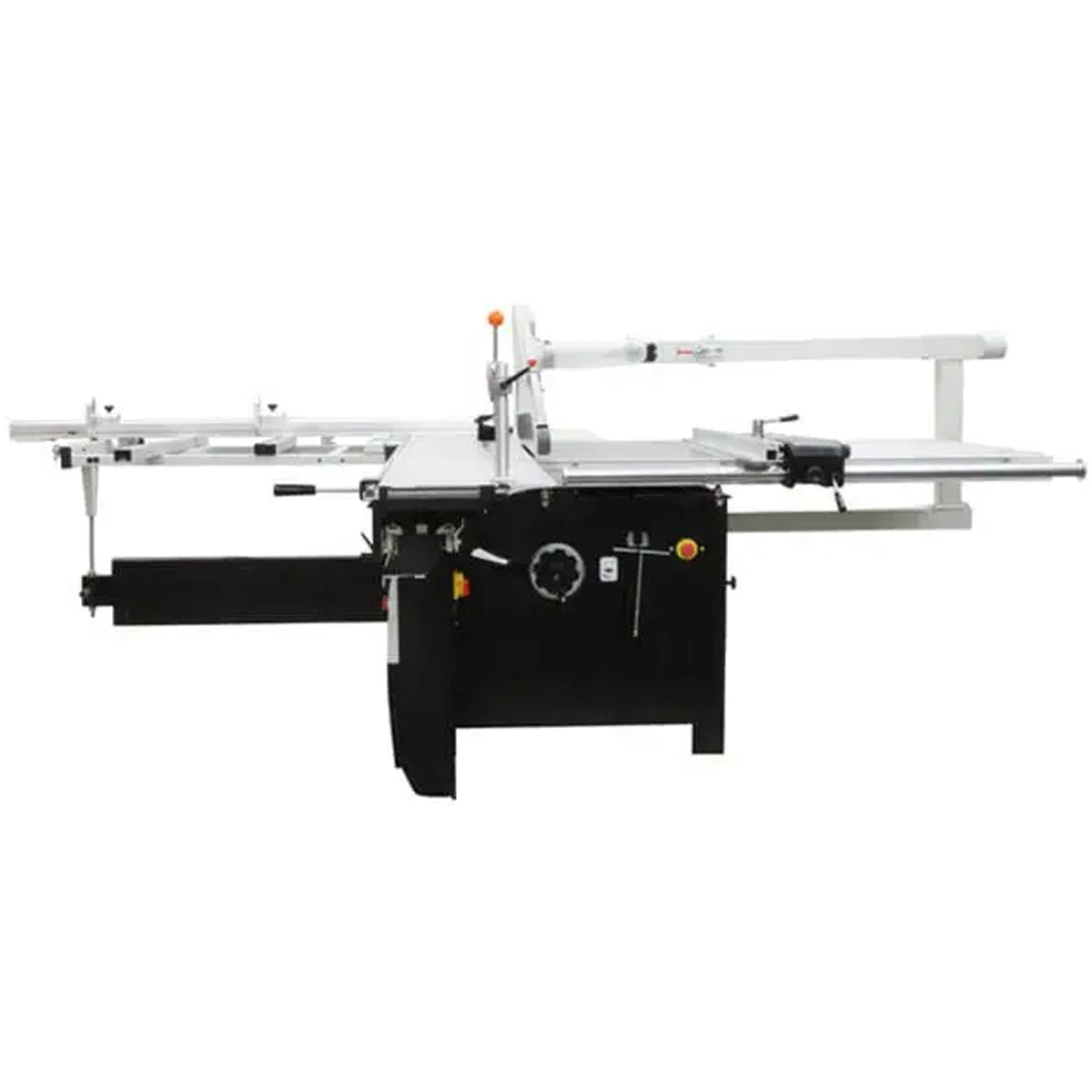

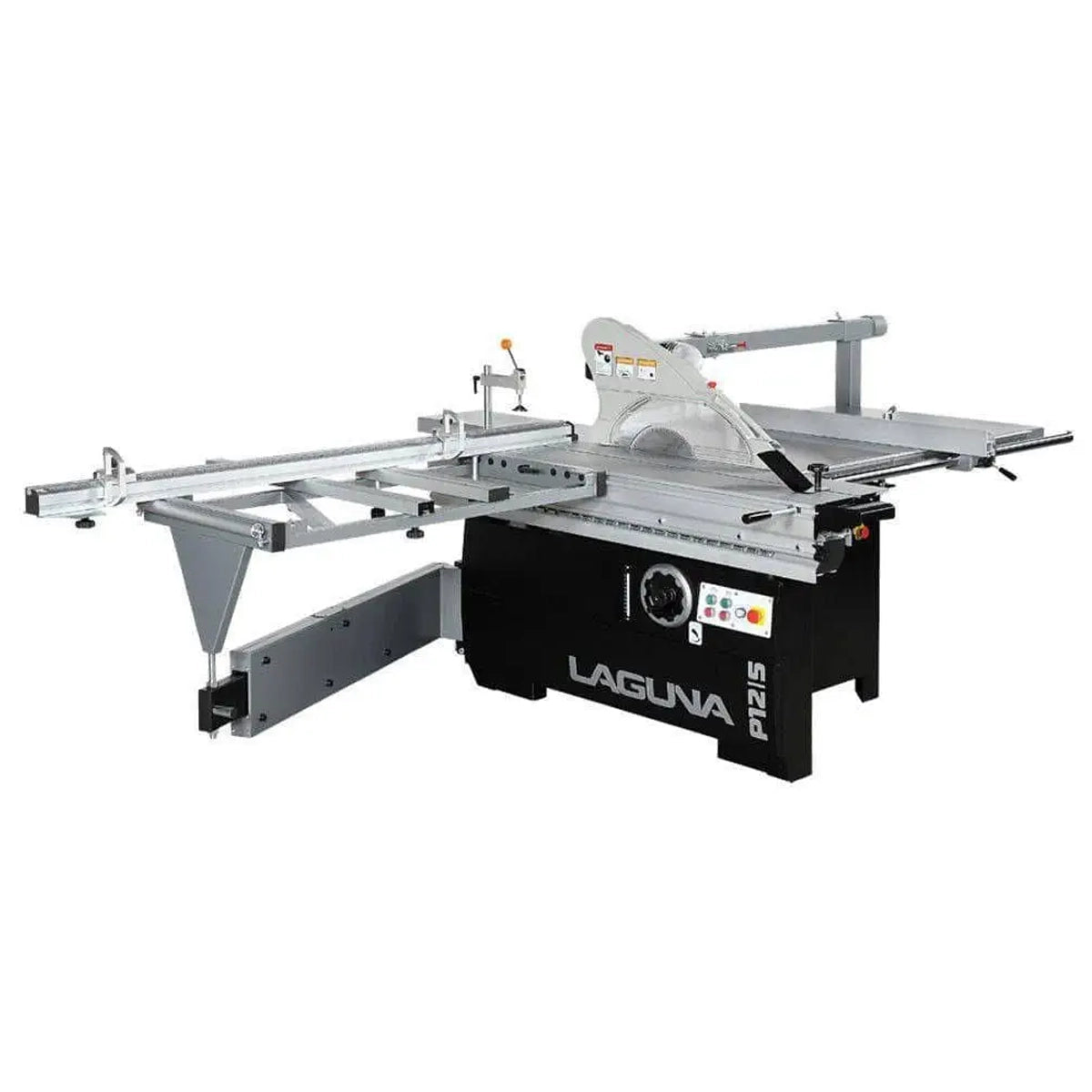

P12|5 Industrial Panelsaw with Sliding Table

The P12|5 was designed as a more compact version of our popular P12|8 and P12|10 panelsaws. The P12|5 features a 63″ sliding table design, 5HP main motor, 3/4 HP scoring motor and has a swing-away overhead guard. The telescoping cut-off fence extends to 134″ and has a 51″ rip capacity.

The 63″ sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5″). The heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 134″), 45° miter and is ergonomically designed to make it easier to read the tape. Inside the P12|5 you will find heavy castings, solid gears and precision-machined trunnions mounted onto the solid steel frame. The Heavy Duty motor is equipped with soft start to minimize initial amperage draw. The P12|5 comes standard with hold-down clamp, rip shoe and push handle.

Features:

• 5.0HP Main, 3/4 HP Scoring
