P14|12XC Industrial Panelsaw with CNC Control
P14|12XC Industrial Panelsaw with CNC Control
SKU: SKU:MPSP14-12XC-7.5HP-3-220-0148
Laguna P14|12XC Industrial Panelsaw with CNC Control SKU: MPSP14-12XC-7.5HP-3-220-0148 Overview Introducing Laguna’s most industrial panelsaw ever! The new P14|12XC has motorized rip fence adjustment and powered blade tilt, raise and...Full description below
Special Order Item
Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
Share
Laguna P14|12XC Industrial Panelsaw with CNC Control
SKU: MPSP14-12XC-7.5HP-3-220-0148
- Overview
- Specifications

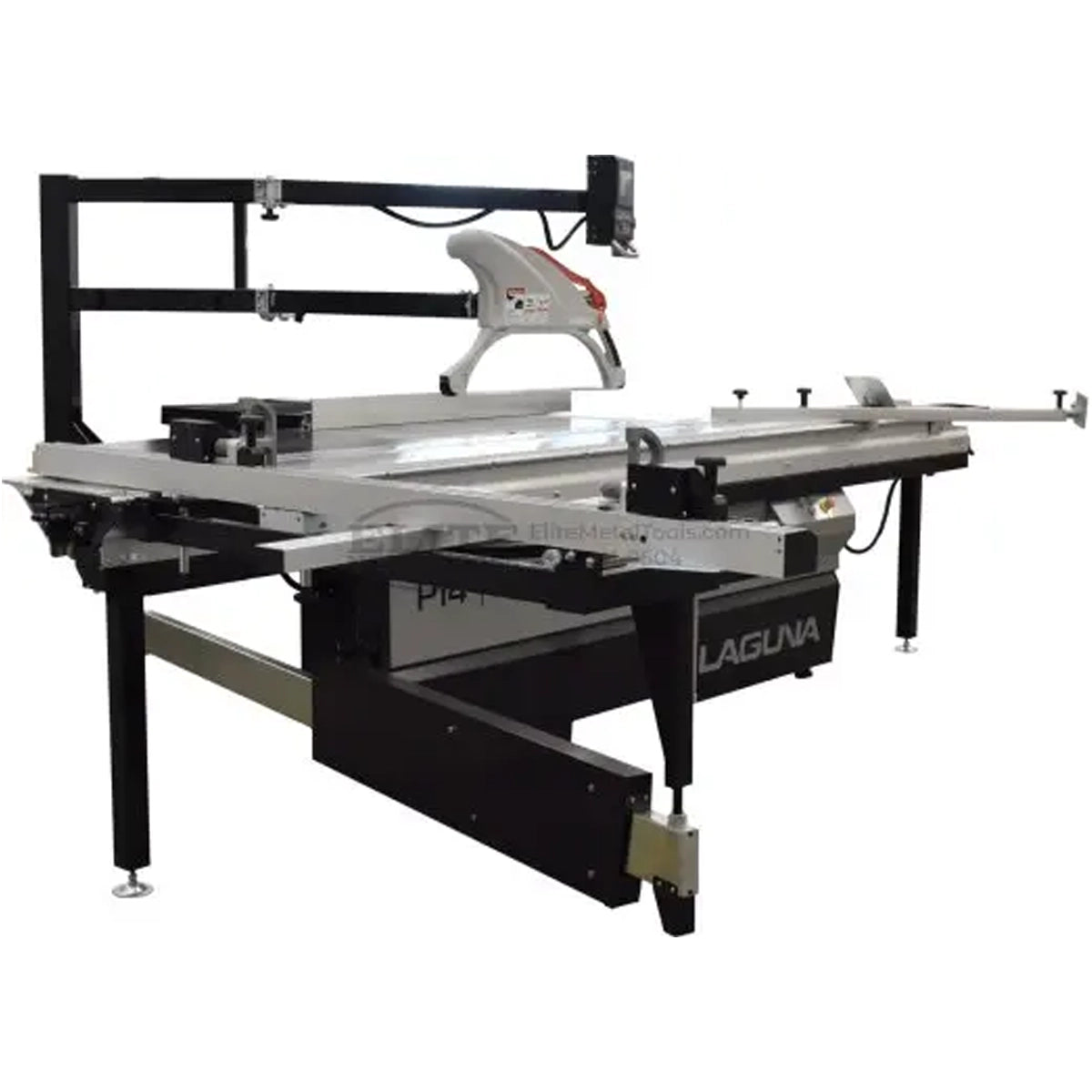

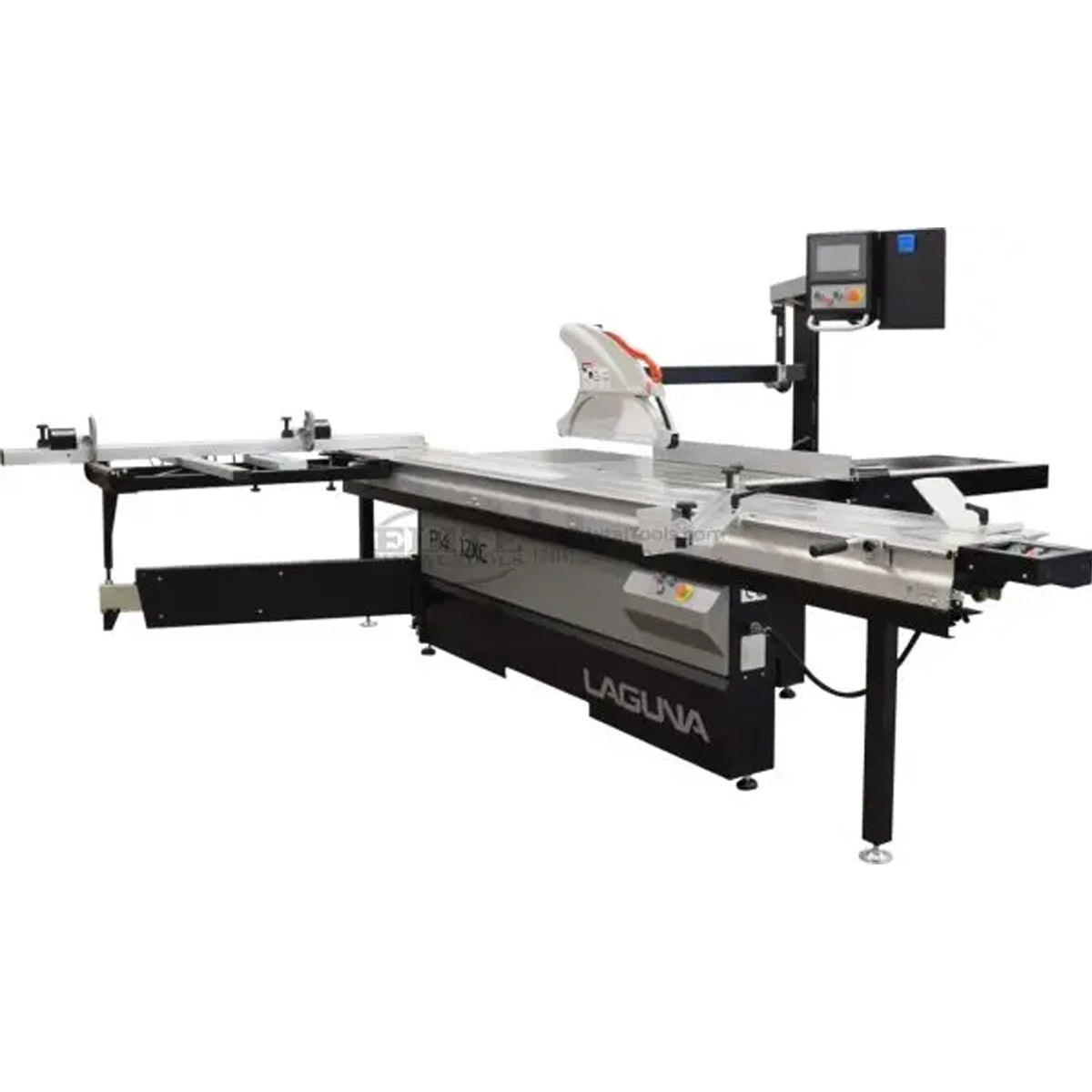

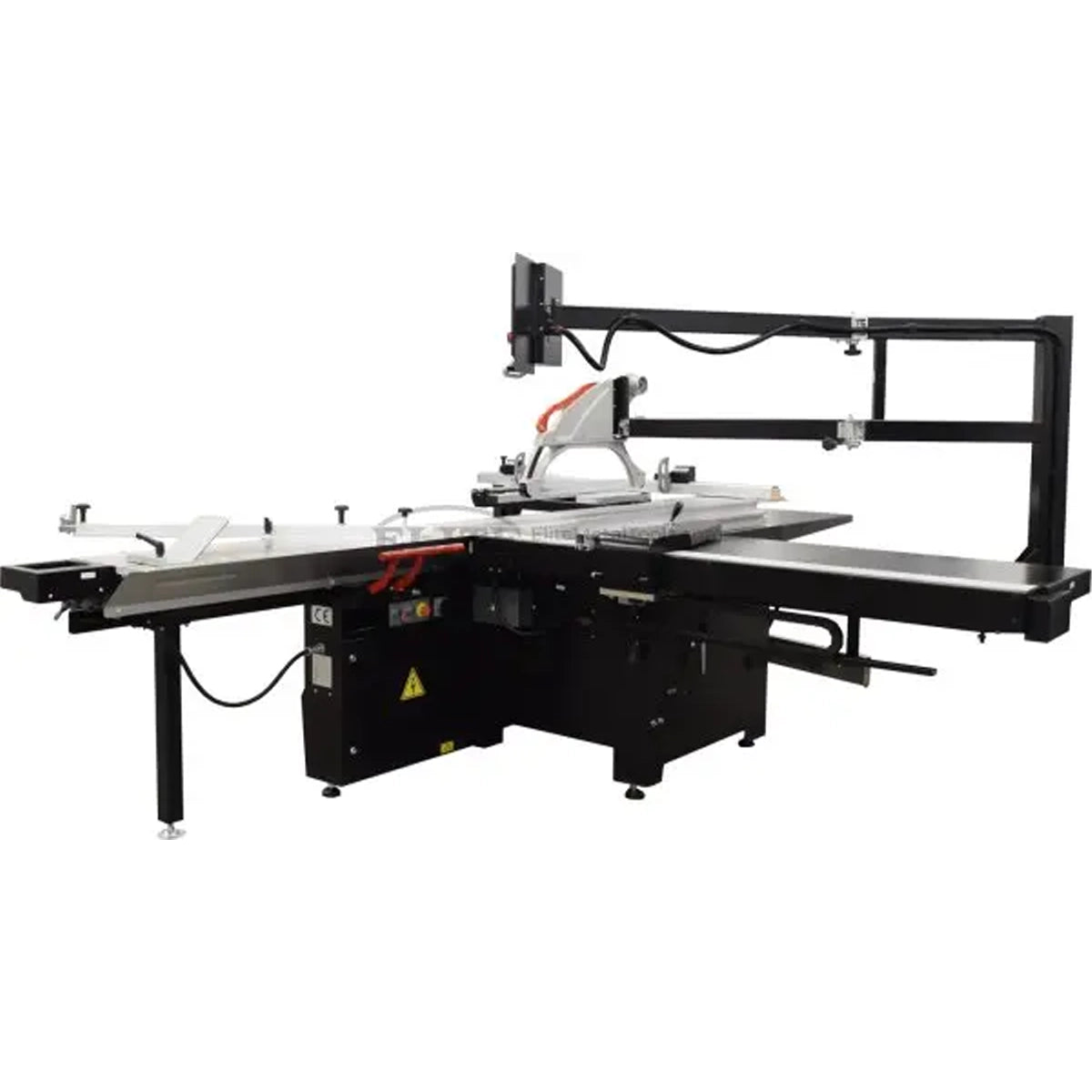

Introducing Laguna’s most industrial panelsaw ever! The new P14|12XC has motorized rip fence adjustment and powered blade tilt, raise and lower all operated with CNC touch-screen control. The P14|12XC also has the largest capacity Laguna has ever offered with a 12’ 4” sliding table. Ideal for cabinet makers, furniture builders and millworkers, the controller allows you to store up to 100 presets making set up a breeze, saving you time and money. The overhead guard comes standard with quick-change 90° and 45° guards. You can switch from one to the other in a matter of seconds. Another nice detail is the swing-away function that allows you to quickly move the guard out of the way.
Features:
- 7.5 HP 3PH Main w/ seperate 1HP Scoring Motor
- CNC Touch Screen For Programming
- Hold down clamp and rip shoe included
- Overhead blade guard with dust port
- +47°/-47° cross-cut table
- Cutting width compensation with blade tilt
- Aluminum extruded crosscut fence with DRO and flip stops
- Automatic blade height correction with blade tilt
- Precision ground and polished solid cast iron main table
- Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides
| Motor: | 7.5 HP 220V 3PH Main w/ seperate 1HP Scoring Motor |
|---|---|
| Rip Width Capacity: | 51″ w/ servo driven motor & ball screw |
| Main Blade Width: | 14″ |
| Scoring Blade: | 4-3/4″ /120mm |
| Memory Set Capability: | 100 |
| Optimum Blade Speeds: | 3000/4000/5000 RPM |
