Powermatic PM2700 Shaper 3HP 1-Phase

Powermatic

PM2700 Shaper 3HP 1-Phase

SKU: 1280100C

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.

$7,090.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

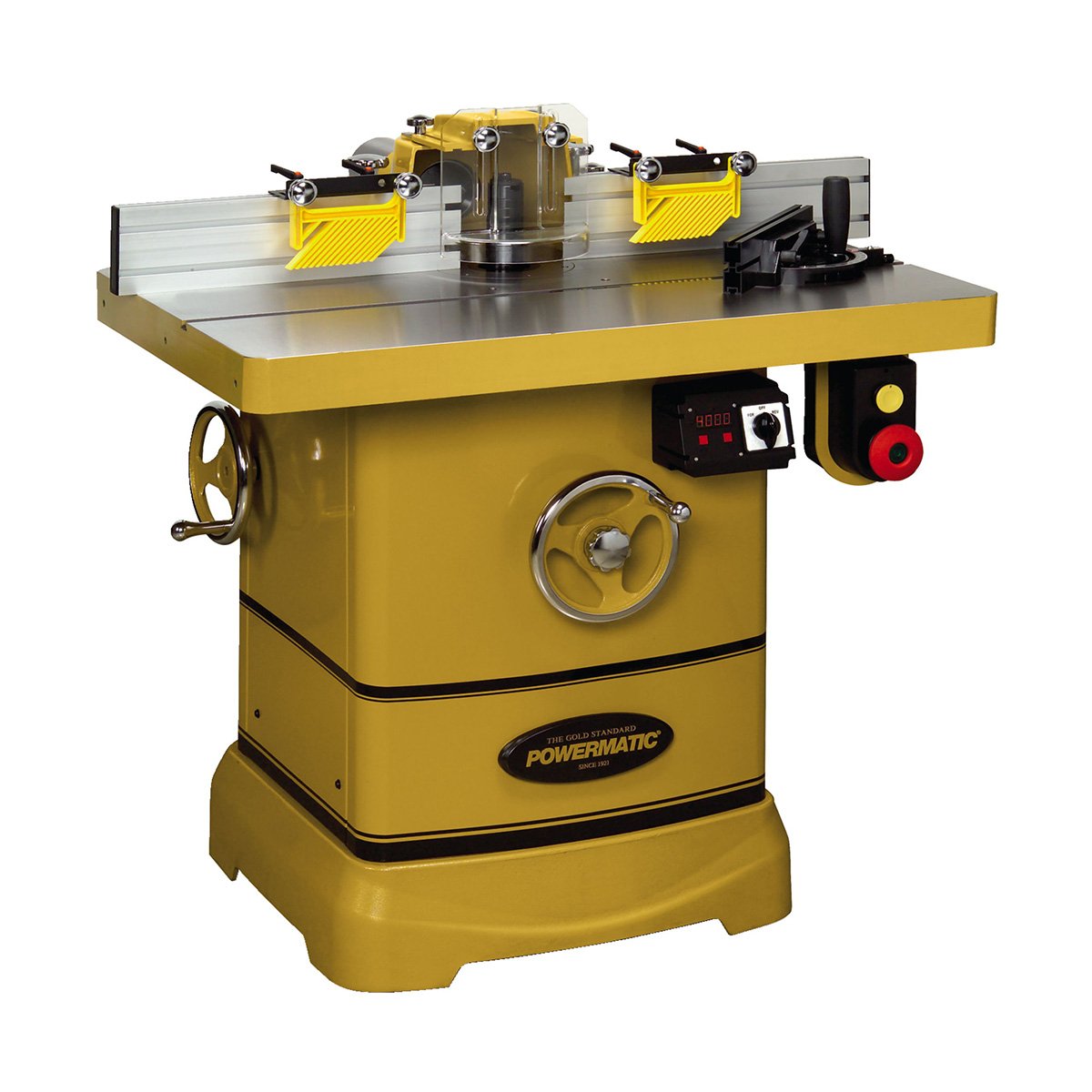

Powermatic® PM2700 Shaper 3HP 1-Phase

SKU: 1280100C

This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra-large 30" x 40" precision ground cast iron table includes a heavy-duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.

Features:

  • Integrated caster system built into the cast iron base for instant shop mobility
  • Spindle height digital readout for making fine incremental adjustments on multiple passes
  • Heavy-duty 30" x 40" precision ground tabletop for smooth stock feeding
  • Convenient quick lock belt tensioning for easy speed adjustment
  • Industrial fence system with fine adjust dials for more precise positioning
  • 3HP single phase totally enclosed motor offers plenty of power
  • Two spindle speeds (reversible) for a variety of work
  • Superior clear cutter guard promotes safety, allows observation of the entire cut
  • Table pre-drilled and tapped for feeder mounting in two locations
  • Fence has dual featherboards for work holding
  • Dual 4" ports for attachment to dust collection system

Standard Equipment:

  • 3/4" and 1-1/4" interchangeable spindle collets
  • Deluxe miter gauge
  • Featherboard hold downs
Spindle Speed (RPM) 7,500 & 10,000
Maximum Spindle Diameter (In.) 1-1/4"
Spindles Included 3/4" & 1-1/4"
Spindle Size Under Nut (In.) 3/4" (3.42"), 1-1/4" (5.15")
Spindle Travel (In.) 4"
Reversible Yes
Table Opening Diameter (In.) 7.33"
Table Inserts (In.) 2.55", 4.16", 5.75"
Table Size (In.) 40" x 30"
Table Height from Floor (In.) 35-1/2"
Fence Size (L x H) (In.) 18-3/4" x 4-7/8"
Dust Port Outside Diameter (In.) 4"
Dust Collection Minimum CFM Required 600
Motor 3HP, 230V, 14A, 1-Phase
Net Weight (lbs.) 664
Shipping Weight (lbs.) 690
