Powermatic 60HH 8" Jointer with Helical Head


60HH 8" Jointer with Helical Head

SKU: 1610086K

order today only 1 left in stock


Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

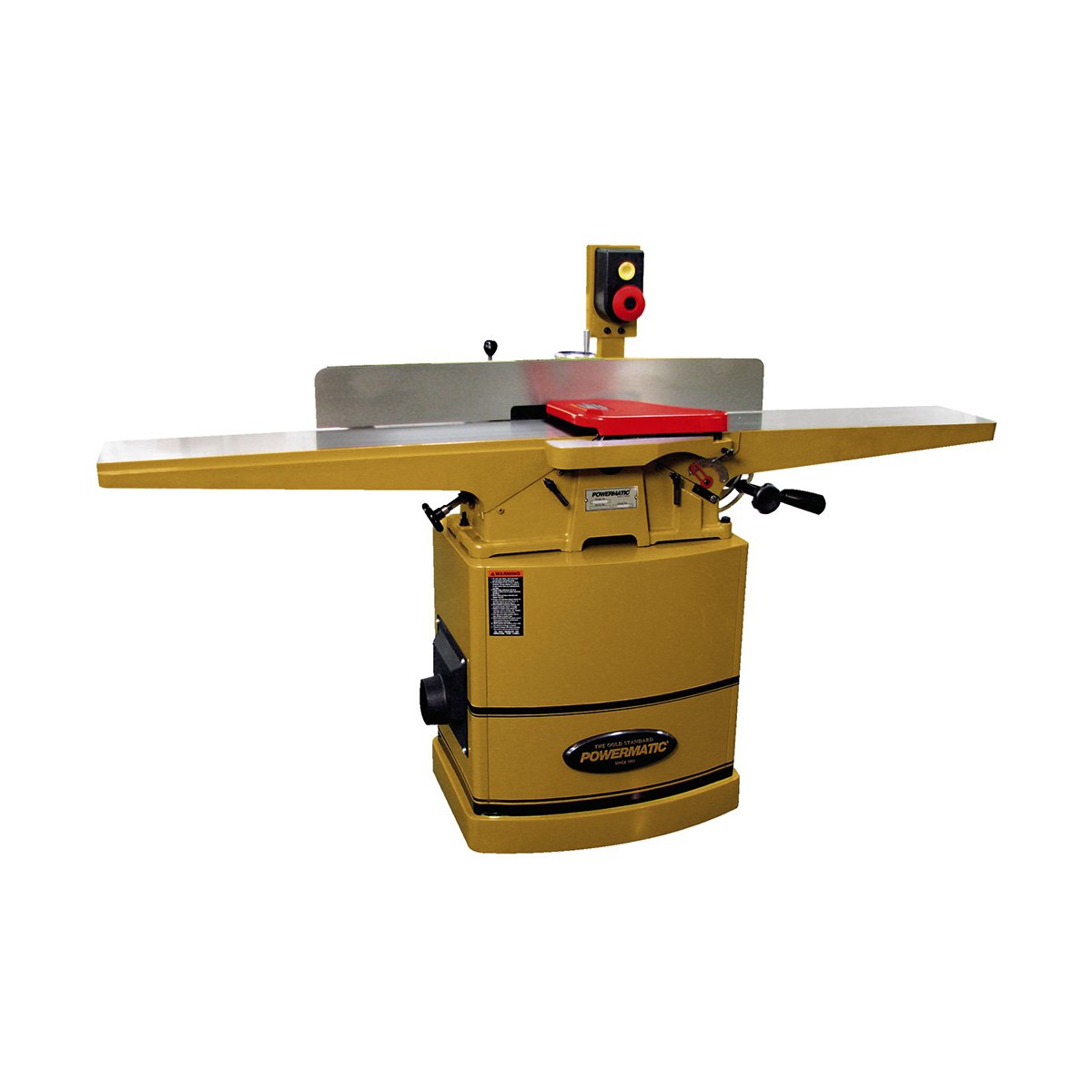

Powermatic® 60HH 8" Jointer with Helical Head

SKU: 1610086K

This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three-knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.


  • Helical cutterhead with 4-sided carbide inserts provides smoother, quieter cutting and a superior finish.
  • Extra-long tables are mounted on dovetailed ways, for extended workpiece support.
  • Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth.
  • High mount switch for operator convenience.
  • Handwheel operated worm gear system for smooth fence tilting.
  • Magnetic push blocks can be stored on the machine within constant reach.
  • Non-mar fence insert protects table surface.
Number of Knives 54
Helical Knife Size (L x W x T) 15mm x 15mm x 2.5mm
Cutterhead Speed (RPM) 7,000
Cutting Capacity (W x D) (In.) 8" x 1/2"
Table Size (L x W) (In.) 73" x 8-1/2"
Table Height from Floor (In.) 32"
Infeed Table Length (In.) 35-1/4"
Outfeed Table Length (In.) 35-1/2"
Fence Size (L x H) (In.) 38" x 4-3/4"
Fence Tilt (Deg.) 45 Forward, 45 Backward
Fence Positive Stops (Deg.) 45, 90, -45
Dust Collection Minimum CFM Required (CFM) 450
Dust Port Outside Diameter (In.) 4"
Motor 2HP 230V 9A 1-Phase
Net Weight (lbs.) 413
Shipping Weight (lbs.) 486
