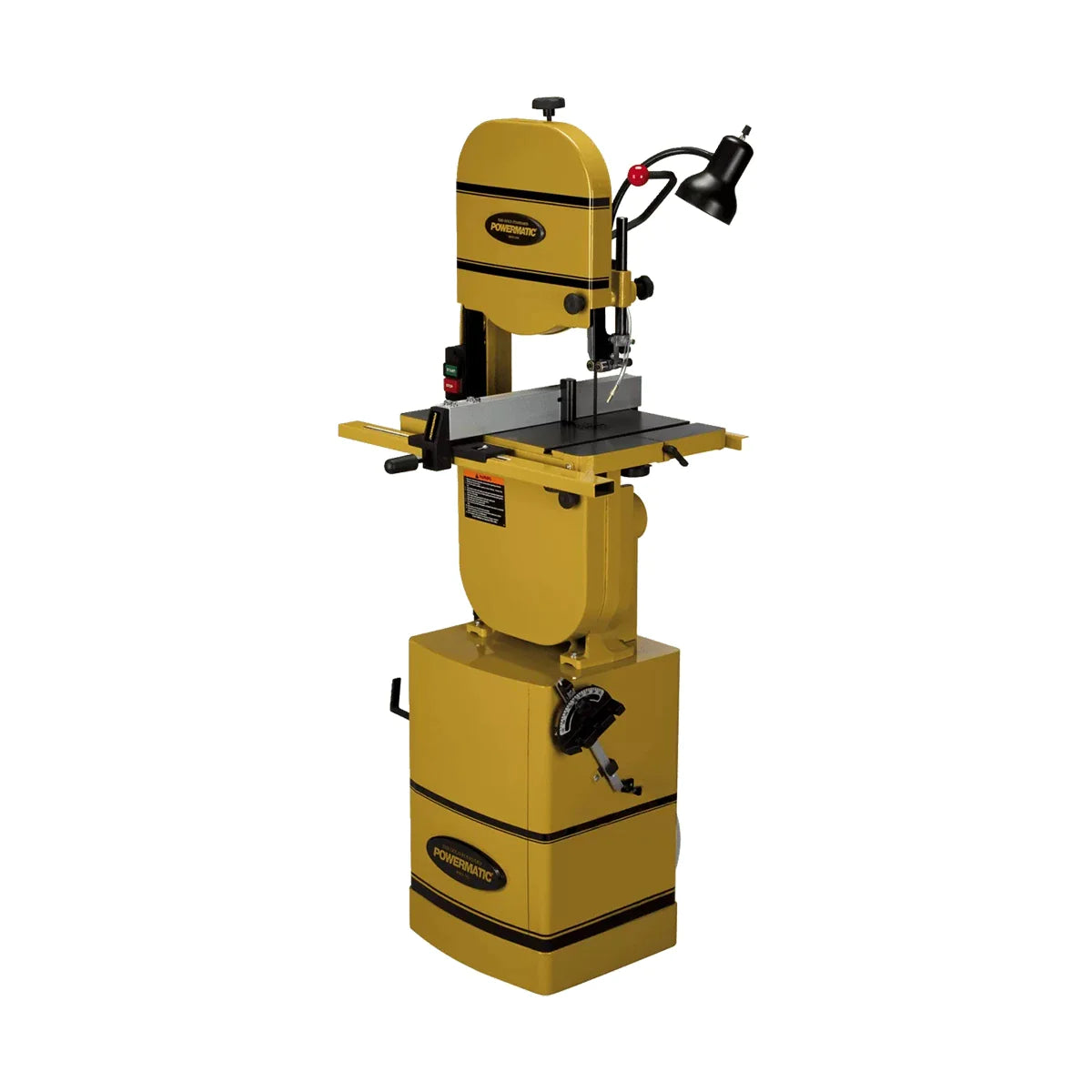

Powermatic 1791216K Powermatic® PWBS-14CS 14" Bandsaw

Powermatic

Powermatic® PWBS-14CS 14" Bandsaw

SKU: 1791216K

order today only 1 left in stock
$2,272.50 $2,525.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.


Powermatic® PWBS-14CS 14" Bandsaw

SKU: 1791216K

The PWBS-14CS Bandsaw has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

Features:

  • 1.5HP 115V or 230V 1 phase motor (prewired 115V)
  • 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
  • Carter™ quick tension lever speeds blade changes and the detension setting extends blade life during non-use
  • Chip blower ensures a clean, visible cut line
  • Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
  • Easy to read tensioning gauge settings indicated in "blade width" increments
  • Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment
  • Includes 6" riser block
  • Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel
  • Rigid one-piece welded stand requires no assembly
  • Upper and lower dual ball bearing guides for accurate cuts

PWBS-14CS, PWBS14CS, PM9-1791216K, PM91791216K

 Wheel Diameter: 14"
Blade Length: 93-1/2"
Blade Speed: 3000 SFPM
Dust Collection Minimum CFM Required: 600
Dust Port Outside Diameter: 4"
Minimum Saw Blade Width" 1/8"
Maximum Saw Blade Width: 3/4"
Table Height from Floor" 44"
Table Tilt: 45° Right / 10° Left
Motor: 1.5HP 115/230V 60Hz 1-Phase
Prewired Voltage: 115V
Recommended Circuit Size: 30/20 Amp
Assembled Dimensions: 20" x 34" x 68"
Assembled Weight: 250 lbs.
Shipping Weight: 266 lbs.
