Powermatic DDS225 Double Drum Sander

Powermatic

DDS225 Double Drum Sander

SKU: 1791290

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.

$8,850.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

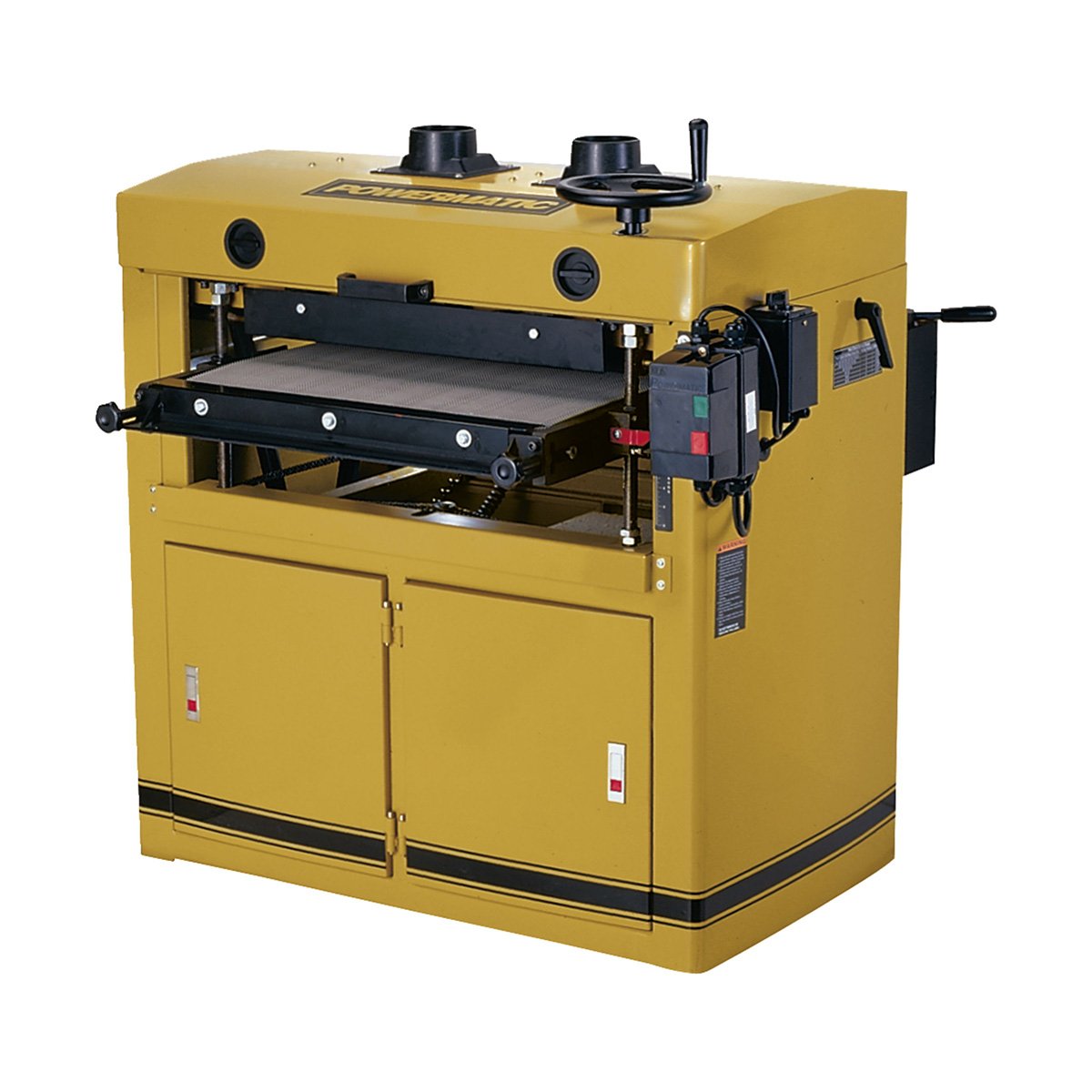

Powermatic® DDS225 Double Drum Sander

SKU: 1791290

Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar-free finish. Independently adjustable rear drum makes fine-tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration-free sanding, with plenty of storage space underneath.

Features:

  • 5HP motor for plenty of power.
  • Independently adjustable rear drum for fine-tuning.
  • Hard durometer rubber coating on steel drums provides a flat, smooth finish.
  • Two-speed gearbox for a wide range of sanding projects.
  • Full-size cast iron table for solid support.
  • Forward/reverse poly conveyor belt grips stock evenly.
  • Dual dust ports with directional baffles for more efficient dust removal.

Standard Equipment:

  • Two-speed gearbox.
  • Dual 4" dust ports.
  • Sandpaper on drums.
  • Tool kit.
Drum Length (In.) 25"
Number of Sanding Drums 2
Drum Speed (RPM) 1,700
Drum Diameter (In.) 6"
Conveyor Motor 1/4HP
Conveyor Speed (FPM) 8 and 12
Maximum Board Thickness (In.) 5-1/4"
Maximum Board Width (In.) 25"
Minimum Board Length (In.) 9"
Minimum Board Thickness (In.) 1/32"
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 2 - 4"
Motor 5HP 230V 60Hz 1-Phase
Net Weight (lbs.) 730
Shipping Weight (lbs.) 840
