Powermatic 31A-3 Belt/Disc Sander 3-Phase


31A-3 Belt/Disc Sander 3-Phase

SKU: 1791292K

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.



Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

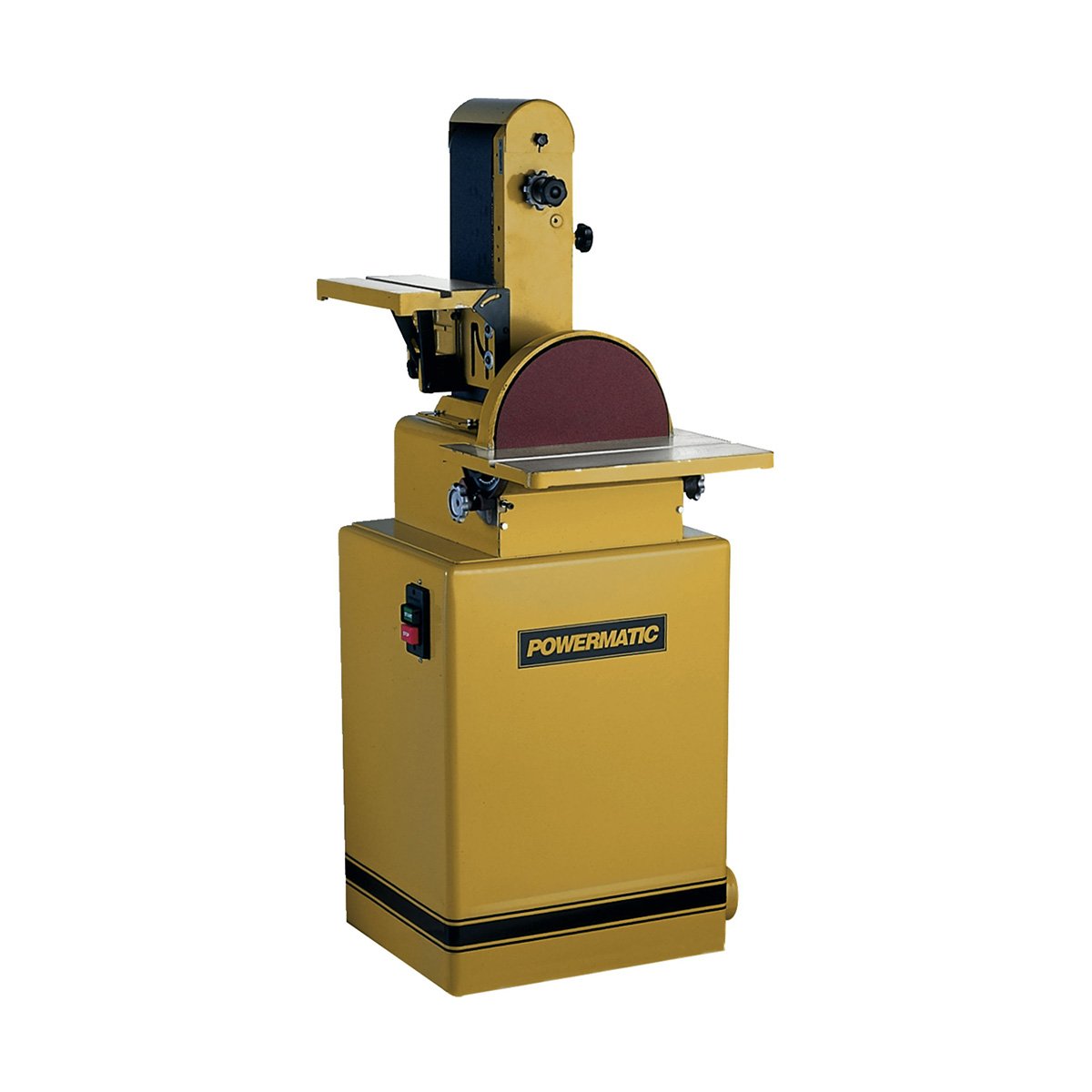

Powermatic® 31A-3 Belt/Disc Sander 3-Phase

SKU: 1791292K

Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.


  • 2HP, 230V, 3-Phase Motor
  • Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops.
  • Belt and disc tables are precision ground cast iron with miter slots.
  • Belt table tilts down to 45° and can be set for bevelled and mitered angle sanding.
  • Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support.
  • 12" disc is balanced for flat, even coverage
Disc Diameter (In.) 12"
Disc Speed (RPM) 2,375
Disc Table Tilt (Deg.) 15° Up, 45° Down
Disc Table Size (L x W) (In.) 17-1/4" x 9"
Sanding Belt Size (L x W) (In. 48" x 6"
Belt Speed (RPM) 2,410
Belt Table Tilt (Deg.) 45° Down
Belt Table Size (L x W) (In.) 13-1/4" x 7-1/2"
Sanding Arm Locking Positions 0/45/90
Dust Collection Minimum CFM Required (CFM) 400
Dust Port Outside Diameter (In.) 4"
Motor 2HP 230V 7A 60Hz 3-Phase
Net Weight (lbs.) 247
Shipping Weight (lbs.) 275
