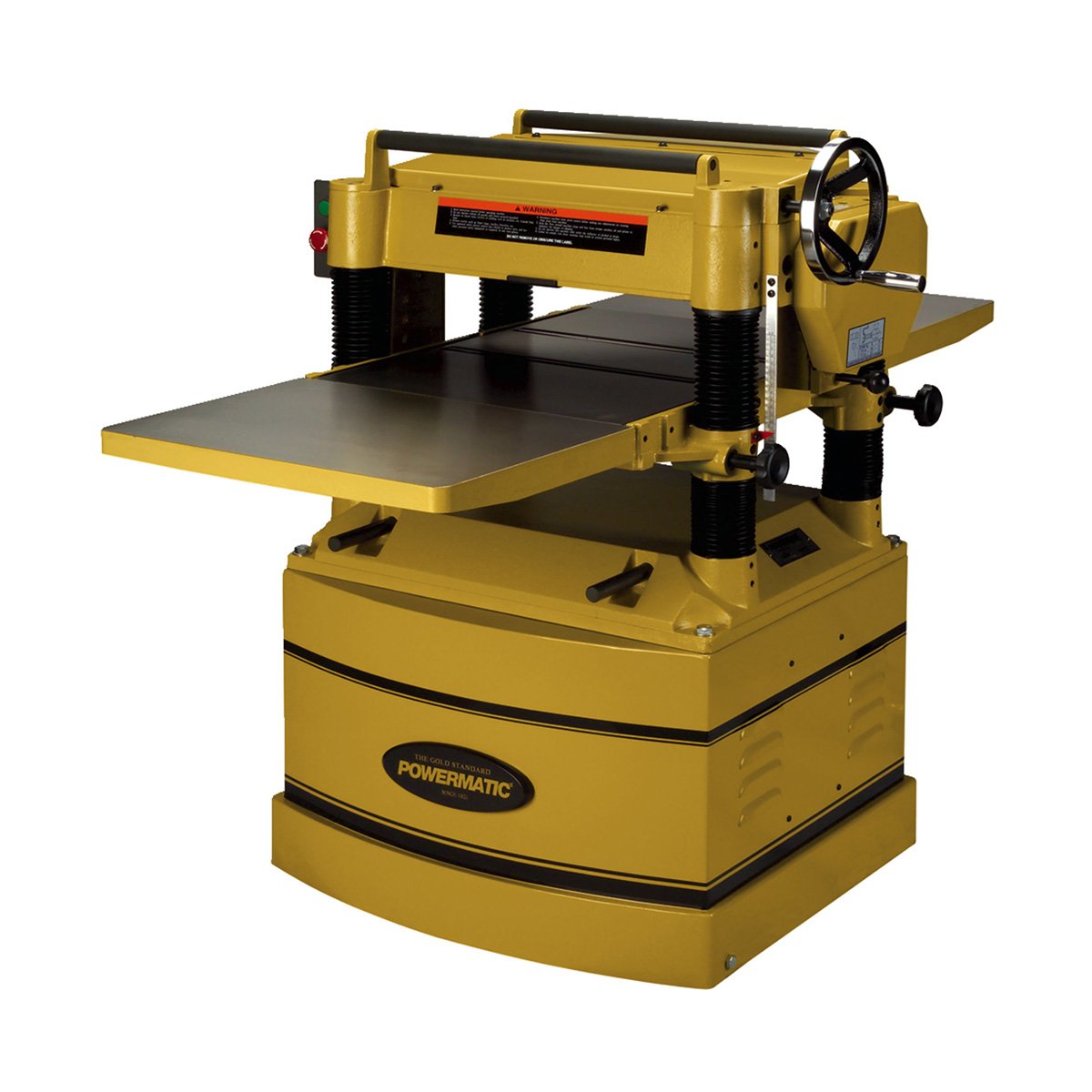

Powermatic 209HH-3 20" Planer with Helical Head 5HP 3-Phase

Powermatic

209HH-3 20" Planer with Helical Head 5HP 3-Phase

SKU: 1791316

Currently Out of Stock
Order Now and we will contact you with availability date

Your Credit Card will not be charged until the availability date is accepted.

$7,980.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.


Powermatic® 209HH-3 20" Planer with Helical Head 5HP 3-Phase

SKU: 1791316

This heavy-duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP 3-phase motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the four-sided knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

Features:

  • Byrd® SHELIX®; helical cutterhead with 100 knife inserts.
  • 5HP 3-phase motor and 20" planing capacity for heavy-duty work.
  • Fully enclosed base cabinet with integrated casters for shop mobility.
  • Cast iron table with extensions creates a big 55-1/2" x 20" working area.
  • Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility.
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity.
  • 5" diameter dust port.
Type of Cutterhead Helical
Knife Size (L x W x T) 15mm x 15mm x 2.5mm
Number of Knives 100 (4-sided)
Cutterhead Diameter (In.) 3-3/16
Cutterhead Speed (RPM) 5000
Maximum Full-Width Depth of Cut (In.) 3/32
Maximum Planing Width (In.) 20
Maximum Planing Thickness (In.) 8
Minimum Planing Length (In.) 6-3/4
Number of Speeds 4
Feed Rate (FPM) 24/31 & 16/20
Table Size with Extensions (L x W) (In.) 20 x 55-1/2
Table Support 4 Column
Dust Port Outside Diameter (In.) 5
Dust Collection Minimum CFM Required 900
Motor 5HP 230V 14A 3-Phase
Net Weight (lbs.) 801
Shipping Weight (lbs.) 911
