Powermatic 1791801B Powermatic® PM1800B 18" Bandsaw

Powermatic

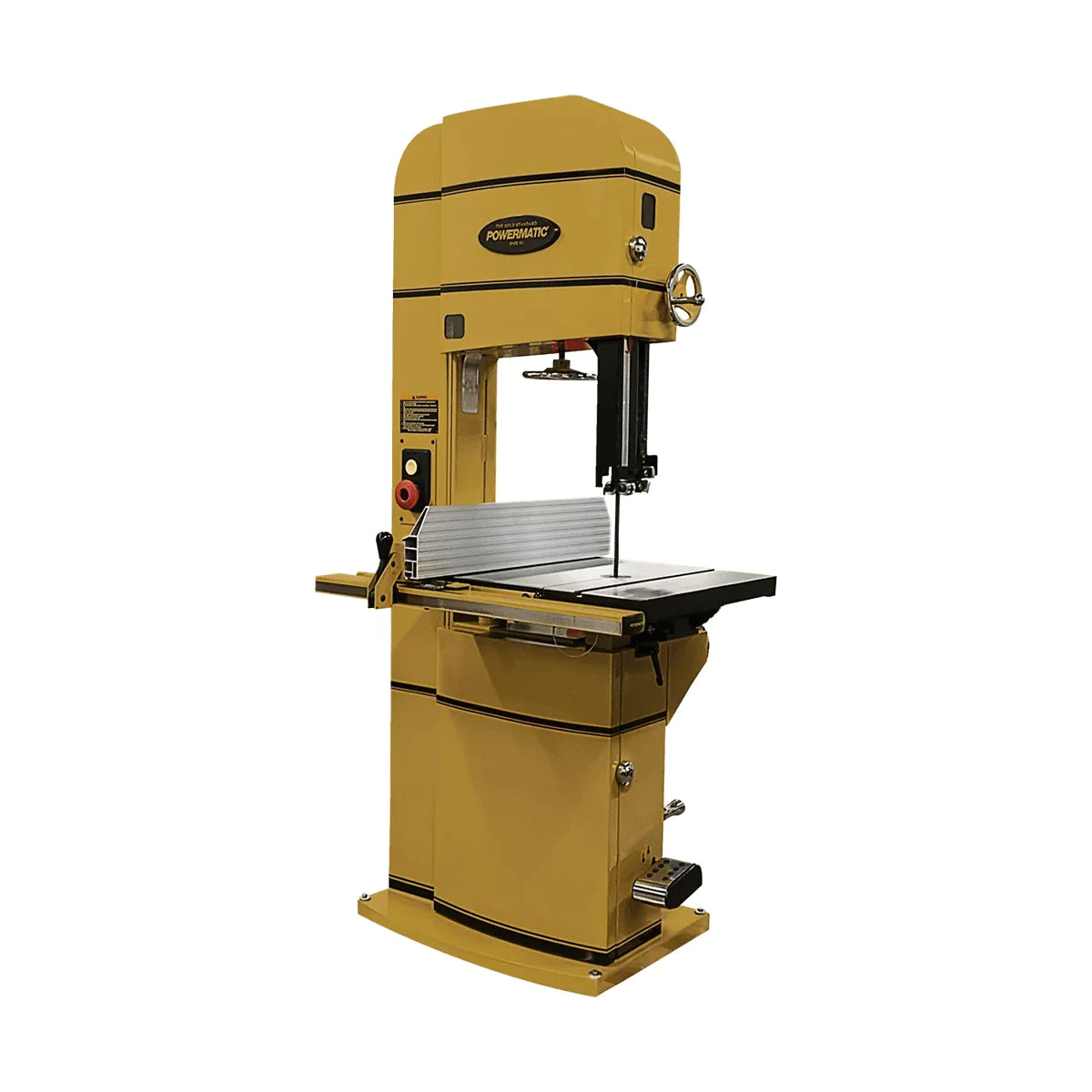

Powermatic® PM1800B 18" Bandsaw

SKU: 1791801B

$9,380.00

Upon receipt of your order you will be contacted to discuss delivery time and shipping options.

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.


Powermatic® PM1800B 18" Bandsaw 3-Phase

SKU: 179180XB

At Powermatic, they believe that ambition is the fuel that drives progress. Every product they engineer is born out of the same idea: How can they empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When they reimagined their line of bandsaws, they not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.

Features:

  • 5.0HP 230V 3-phase motor
  • Computer balanced cast iron wheels reduce vibration and noise
  • Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
  • Micro-adjustable, virtually tool-less bearing guide system gives close blade control while reducing friction
  • Oversized side plate can be used in the horizontal or vertical position
  • Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
  • Special grooved thrust bearing stabilizes smaller blades
  • Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
  • Accu-Fence has complete adjustability for aligning to blade and squaring to table

Available Power Options:

SKU: Power
1791801B 5.0HP, 230V, 60Hz, 3-Phase

1791800B-3, 1791800B3, PM9-1791800B, PM91791800B, PM9-1791800B-3, PM9-1791800B3, PM91791800B3, PM1800B, 1791801B-3, 1791801B3, PM9-1791801B, PM91791801B, PM9-1791801B-3, PM9-1791801B3, PM91791801B3

 Wheel Diameter: 18"
Blade Length: 160"
Blade Speed: 2300/4400 SFPM
Cutting Capacity Height: 18"
Cutting Capacity Width: 18"
Dust Collection Minimum CFM Required: 600
Dust Port Outside Diameter: 4"
Minimum Saw Blade Width" 1/8"
Maximum Saw Blade Width: 1-1/2"
Table Height from Floor" 38"
Table Tilt: 45° Right / 10° Left
Table Size: 24" x 27"
Motor: 5.0HP 230V 60Hz 3-phase
Recommended Circuit Size: 20 Amp
Assembled Dimensions: 39-1/2” x 42” x 81-1/2”
Assembled Weight: 840 lb (381 kg)
Shipping Dimensions: 38” x 33-1/4” x 87-1/2”
Shipping Weight: 936 lb (425 kg)
