Powermatic PM2800B Drill Press


PM2800B Drill Press

SKU: 1792800B

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.



Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

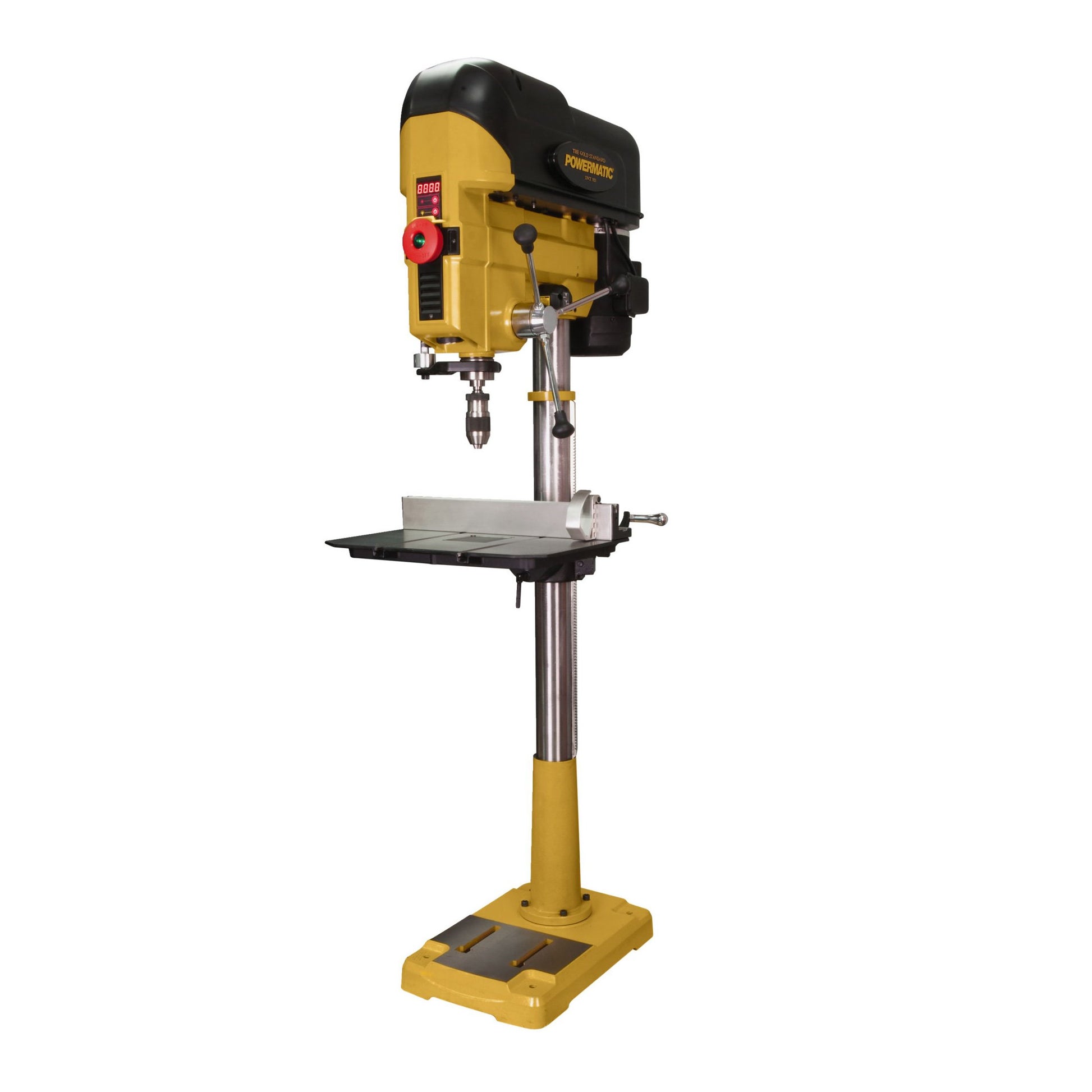

Powermatic® PM2800B Drill Press

SKU: 1792800B

At Powermatic, we have a woodworker's intuition which drives our design process. We look for every opportunity to raise the workshop experience to new levels of performance and functionality. So when we set out to redefine what it means to use a Powermatic Drill Press, we wanted it to be as easy, and as intuitive as possible; to allow you to focus your creative energy on the tasks that make woodworking so rewarding. The PM2800B is the culmination of our efforts. The PM2800B brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that you'll only find in a Powermatic. As with every product Powermatic builds, the PM2800B pushes the limits of design, innovation, and durability.


  • Mechanical variable speed allows for full range of speeds with no belt changes.
  • 6" of quill travel with one revolution of the handle.
  • Fence system adjustable for a perfect 90-degree relationship to the table and for rapid alignment of stock.
  • Adjustable material stop makes repetitive actions accurate and quick.
  • A digital RPM readout allows user to optimize the spindle speed to the application.
  • Laser guides provide an accurate indication for tool point.
  • 5/8" Keyed Chuck.
  • Reversible handles can be mounted on either side of the machine for more comfortable working of the quill.
  • Two independently adjustable LED work lights eliminates shadows.
  • Worktable can be rotated to a full 90-degree position.
  • Replaceable square table insert with leveling screws make it flush with the top of the table.
  • Oversize cast iron base for added stability.
  • Safety key prevents accidental starting
Swing (In.) 18"
Spindle Travel (In.) 6"
Number of Spindle Speeds Variable
Spindle Taper MT-2/JT-3
Spindle Distance to Table (Max.) (In.) 27-3/8"
Spindle Distance to Base (In.) 46-1/4"
Table Size (L x W) (In.) 20" x 14"
Table Tilt (Deg.) 0 to 90
Fence Size (L x H) (In.) 19-13/16" x 2-11/16"
Chuck Distance to Base (In.) 43-13/32"
Chuck Distance to Table (In.) 24-1/2"
Chuck Size (In.) 5/8"
Column Diameter (In.) 3-1/8"
Base Size (In.) 13-3/8" x 20"
*Motor 1 HP 115/230 V 15/7.5 A 1-Phase
Net Weight (lbs.) 246
Shipping Weight (lbs.) 266

*Prewired 115 V 15 A
