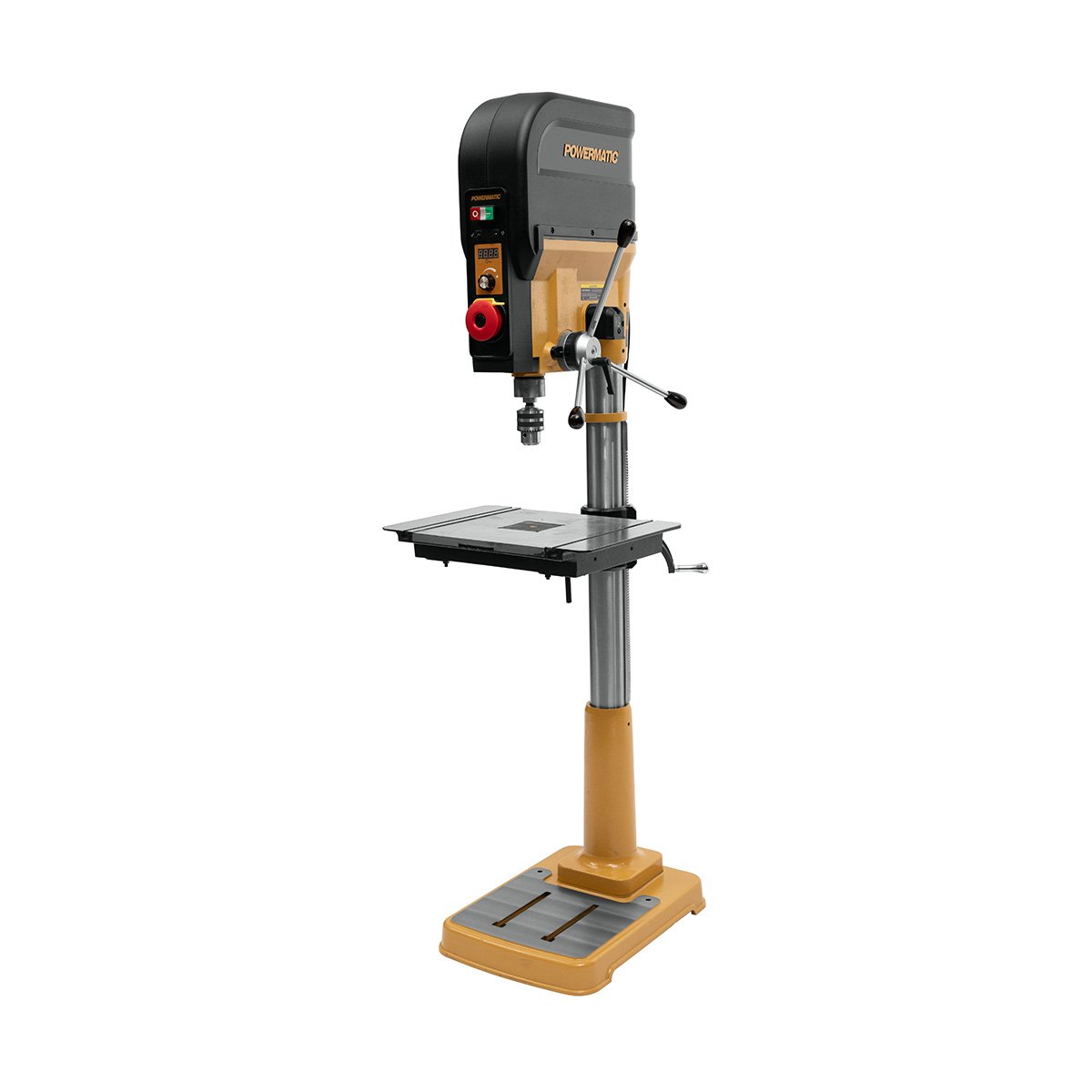

Powermatic PM2820EVS Drill Press


PM2820EVS Drill Press

SKU: 1792820

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.



Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

Powermatic® PM2820EVS Drill Press

SKU: 1792820

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press. The gear-driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with 45-degree rotation has capacity for projects large and small. The high visibility laser pinpoints the drilling location for total accuracy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base gives this drill press stability. Integrated LED light reduces shadows for project visibility.


  • Designed for a range of materials and applications.
  • For unbeatable accuracy, the laser crosshairs provide precise tool point indication.
  • Gear-driven power transfers torque consistently and efficiently for a wide range of materials.
  • Handles can be reversed for left or right-sided operation.
  • Highly visible digital readout gives users control.
  • Includes Powermatic’s patented integrated depth stop for efficient drilling.
  • Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces.
  • Standing on an oversized cast base for outstanding stability for the 20-inch swing.
  • The electronic variable speed means torque is not lost using either the higher or low-speed settings. Low-speed setting ranges 150 – 870 RPM and high-speed setting ranges 600 – 3600 RPM.
  • The large cast table adjusts to a range of positions and tilts to a full ninety-degree position.
Spindle Speed (RPM): 150 - 3600
Swing: 20"
Spindle Travel: 6"
Table Size (L x W): 20-1/2" x 15-1/2"
Spindle Taper: MT2
Spindle Distance to Base: 45"
Maximum Spindle Distance to Table: 23"
Chuck Distance to Base: 41-1/4"
Chuck Distance to Table: 19-1/4"
Chuck Size: 5/8"
Table Tilt: 90 L/R
Column Diameter: 3-3/8"
Fence Size: 19-3/4" x 2-5/8"
Base Size: 22-3/4" x 16-3/8" x 2-3/4"
Motor: 1HP, 120V, 8A,60Hz, 1-Phase
Shipping Dimensions (L x W x H): 55.51" x 30.9" x 19.69"
Shipping Weight: 414 lbs.
