10" 1.75HP Contractors Saw 30" Fence
10" 1.75HP Contractors Saw 30" Fence
SKU: SKU:CNS175-SFA30
Special Order Item
Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca
Regular price
$2,750.00
Regular price
Sale price
$2,750.00
Unit price
/
per

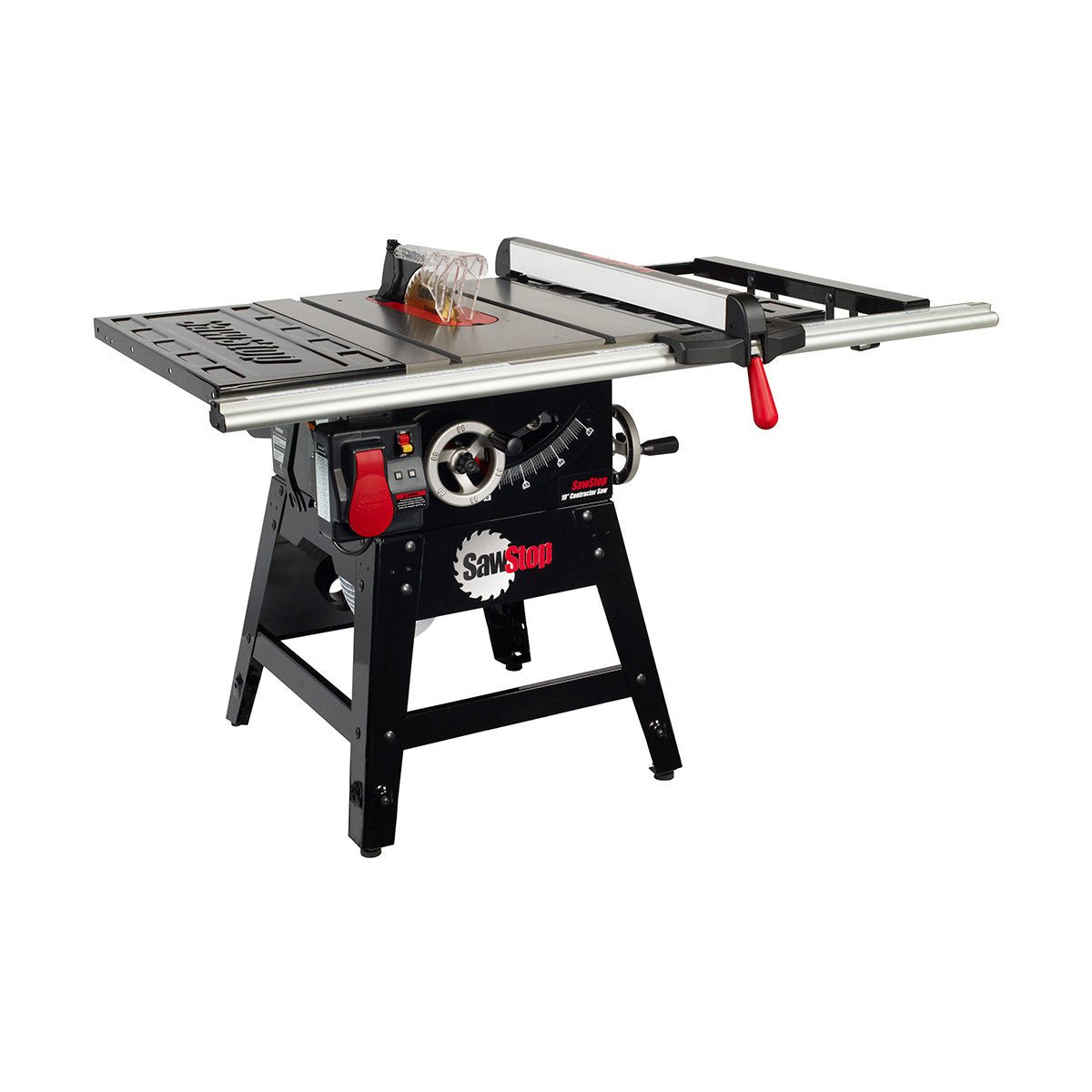

SawStop® 10" 1.75HP Contractors Saw 30" Fence
SKU: CNS175SFA30
- Overview
- Specifications
Overview
The SawStop® Contractor Saw offers versatility and safety. Whether on the job site or in the shop, it delivers the performance you need with the peace of mind only SawStop®'s patented safety system can provide.
Features:
- Aluminum extrusion fence and 30" rails
- Tool-Free Quick-Change Mount - Make fast and easy transitions between guard and riving knife with no tools required
- SawStop® Safety System - Prevents serious injury by stopping and retracting the blade within 5 milliseconds of contact with skin
- Large Start/Stop Paddle For Hands-Free Shut Off - It's easy to stop the blade even when both your hands are occupied
- Fit and Finish - Keen attention to detail and no cut corners provide a level of unmatched quality
- Professional Fence System - Including 36" and 52" extension tables with T-Glide Professional Fence systems and cast iron extension wings
- Enhanced Dust Collection - Removes harmful particles from the air, increasing safety and workplace cleanliness
- Riving knife minimizes kickback and provides protection during non-through cuts.
- Never worry again about someone using your saw when you're not around. The main power switch with lockout key prevents unauthorized users from operating the saw.
- When the power goes out, the saw stays off. The safety system won't allow the motor to restart automatically when the power comes back on.
- Left-tilting blade helps prevent wood from binding against the fence.
SawStop®, the SawStop® blade logo, and the configurations of SawStop® products are either registered trademarks or trademarks of SawStop®, LLC and are used with permission.
Specifications
Models and Dimensions (with motor): | |
---|---|
CNS175-SFA30: Includes aluminum extrusion fence & 30" rails |
58 1/2" w, 40" d, 34 3/4" h |
Motor: | 1.75 HP, 110-120V, 15A User-configurable to 220-240V, 7.5A |
Footprint: | 25 3/4" w, 27" d |
Cast iron table: | 20" w, 27" d |
Extension wing: | 12" w, 27" d |
Shipping weight (approx.): | 280 lbs. |
Blade: | 10" diameter, 5/8" arbor |
Blade tilt: | Left |
Maximum depth of cut: | 3 1/8" |
Dado diameter: | 8" |
Dado max. width: | 13/16" |
Dust collection port: | 4" diameter |
Insert: | Zero-clearance |
Blade guard: | Polycarbonate, thin profile |
Riving knife / splitter: | 2mm thick |
