SawStop 10" 1.75HP Contractors Saw 36" Fence

SawStop

10" 1.75HP Contractors Saw 36" Fence

SKU: CNS175-TGP36

currently Out of stock
Order Now and we will contact you with availability date

Your Credit Card will not be charged until the availability date is accepted.

$3,115.00

Due to weight and/or length restrictions this product is not available for purchase on line.

Get Pricing Including Shipping

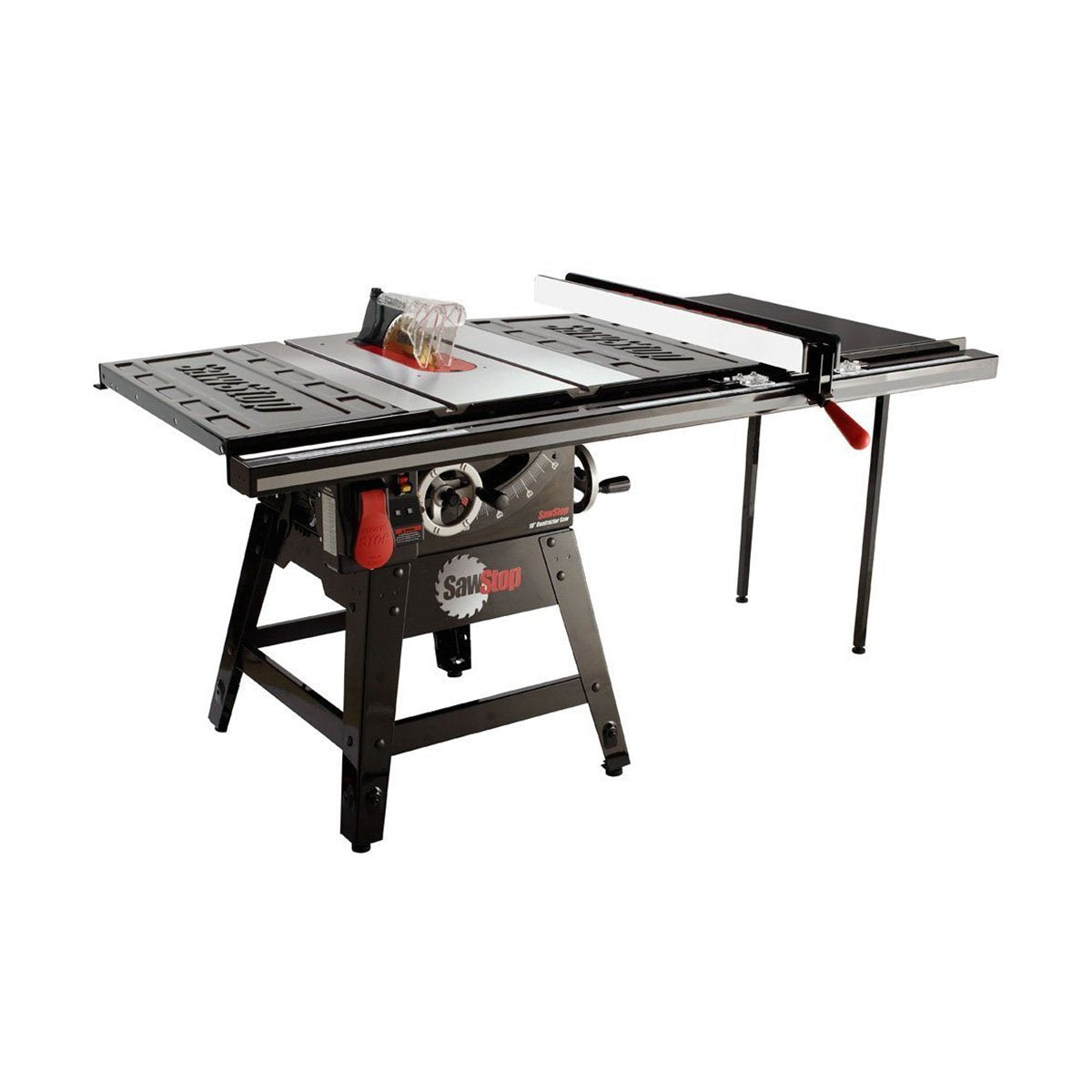

SawStop® 10" 1.75HP Contractors Saw 36" Fence

SKU: CNS175TGP36

The SawStop® Contractor Saw offers versatility and safety. Whether on the job site or in the shop, it delivers the performance you need with the peace of mind only SawStop®'s patented safety system can provide.

Features:

  • Deluxe T-Glide Fence System
  • Tool-Free Quick-Change Mount - Make fast and easy transitions between guard and riving knife with no tools required
  • SawStop® Safety System - Prevents serious injury by stopping and retracting the blade within 5 milliseconds of contact with skin
  • Large Start/Stop Paddle For Hands-Free Shut Off - It's easy to stop the blade even when both your hands are occupied
  • Fit and Finish - Keen attention to detail and no cut corners provide a level of unmatched quality
  • Professional Fence System - Including 36" and 52" extension tables with T-Glide Professional Fence systems and cast iron extension wings
  • Enhanced Dust Collection - Removes harmful particles from the air, increasing safety and workplace cleanliness
  • Riving knife minimizes kickback and provides protection during non-through cuts.
  • Never worry again about someone using your saw when you're not around. The main power switch with lockout key prevents unauthorized users from operating the saw.
  • When the power goes out, the saw stays off. The safety system won't allow the motor to restart automatically when the power comes back on.
  • Left-tilting blade helps prevent wood from binding against the fence.
SawStop, the SawStop blade logo, and the configurations of SawStop products are either registered trademarks or trademarks of SawStop, LLC and are used with permission.
Models and Dimensions (with motor):
CNS175-TGP36:
Includes Professional Series T-glide fence & 36" rails
69 1/8" w, 45" d, 34 3/4" h
Motor: 1.75 HP, 110-120V, 15A
User-configurable to 220-240V, 7.5A
Footprint: 25 3/4" w, 27" d
Cast iron table: 20" w, 27" d
Extension wing: 12" w, 27" d
Shipping weight (approx.): 362 lbs.
Blade: 10" diameter, 5/8" arbor
Blade tilt: Left
Maximum depth of cut: 3 1/8"
Dado diameter: 8"
Dado max. width: 13/16"
Dust collection port: 4" diameter
Insert: Zero-clearance
Blade guard: Polycarbonate, thin profile
Riving knife/splitter: 2mm thick
