sawstop_ics-36_table_saw

SawStop

10" Industrial Cabinet Saw 36" Fence 3HP 1-Phase

SKU: ICS31230-36

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.

$6,585.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

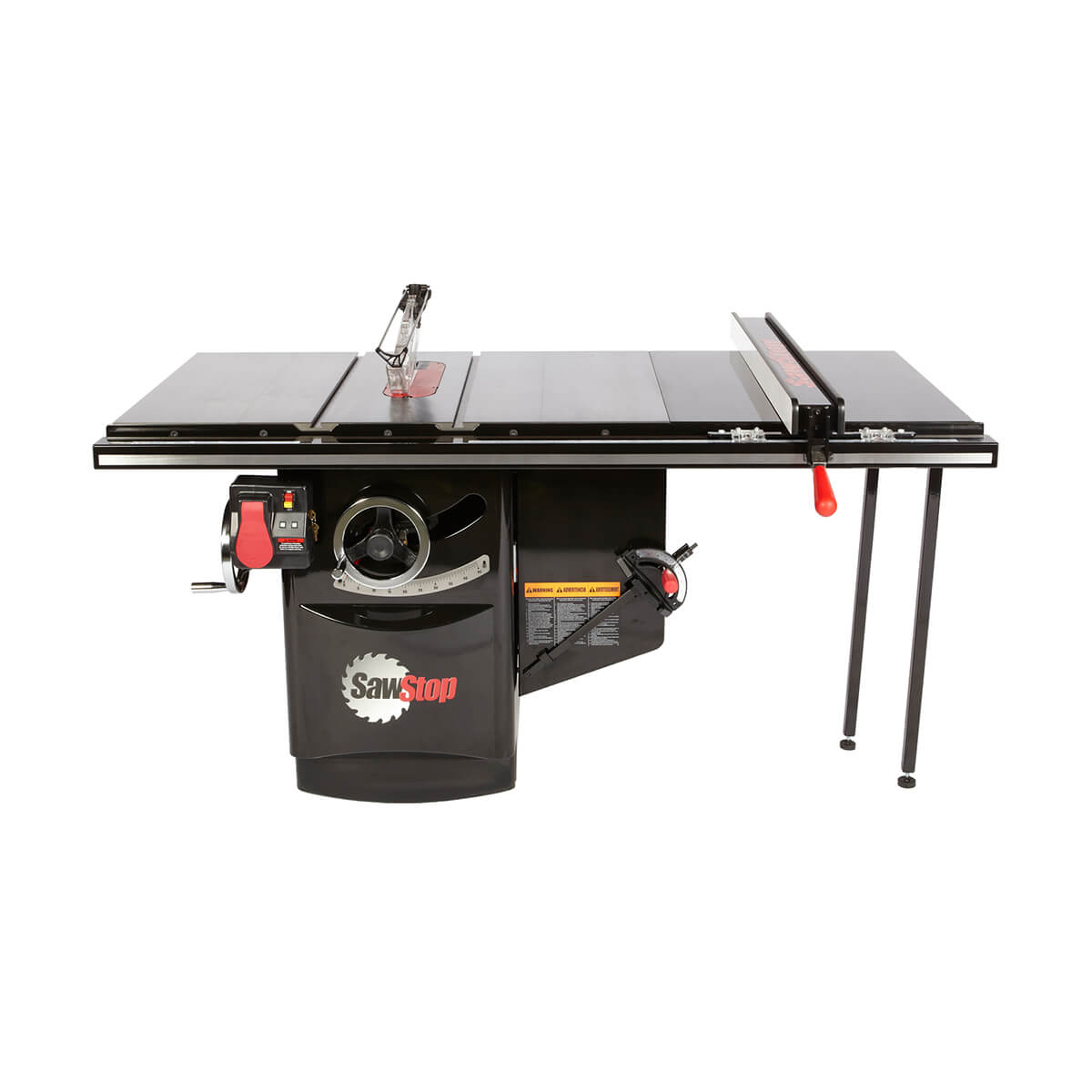

Saw Stop® 10" Industrial Cabinet Saw 36" Fence 3HP 1-Phase

SKU: ICS3123036

The 10" SawStop® Industrial Cabinet Saw is the reference by which all other saws are measured: Precision and heavy-duty construction, the revolutionary safety feature that's made SawStop® famous, and 99% dust collection system that's second-to-none. It is, simply put, the finest SawStop® saw ever made.

Features:

  • Deluxe T-Glide Fence System
  • SawStop® Safety System - Automatically stops and retracts the blade on human contact
  • No job too hard. - The 3 HP single-phase motor easily cuts through the thickest hardwoods.
  • Tool-Free Quick-Change Guard Mount - Make fast and easy transitions between blade and riving knife with no tools required
  • Now featuring 99% Dust Collection. - The Centers for Disease Control has classified sawdust as a cancer-causing carcinogen. With an enhanced below-table blade shroud, the Industrial Cabinet Saw is a leader in dust collection.
  • With the addition of the new Dust Collection Blade Guard, the Industrial Cabinet Saw captures 99% of generated dust. This innovative blade guard collects above-table dust and features independent lateral sides to minimize exposure to the blade. Its low profile allows for cuts as narrow as 3/4 of an inch.
  • Large Start/Stop Paddle For Hands-Free Shut Off - It's easy to stop the blade even when both hands are occupied
  • Strong and Smooth Fence System - A wide T-style fence and highly adjustable rail provides smooth movement along the length of the table
  • Quality Fit and Finish - Attention to detail, premium craftsmanship, and rigorous engineering combine to create a saw you'll love to use
  • Quick Release, Zero-Clearance Insert - Features a quick-release mechanism for tool-free access to saw cavity
  • Precision Alignment System - Adjust the blade and table alignment with precision not found on other saws
  • Riving knife minimizes kickback and provides protection during non-through cuts.
  • When it's closed, it's closed. Accessing the inside of the cabinet is easy with two safety-interlocked doors. The safety interlocks ensure the motor won't start if either door is open.
  • When the power goes out, the saw stays off. The safety system won't allow the motor to restart automatically when the power comes back on.
  • Left-tilting blade helps prevent wood from binding against the fence.
  • Movement so smooth you'll look forward to changing elevation. Gas-assisted elevation adjustments provide incredibly smooth movement when raising and lowering the blade.
  • The widely spaced trunnion system contains far more cast iron than any other saw on the market, providing superior stability while minimizing vibration.
  • Massive 62mm main arbor bearing delivers long-lasting performance. Look around, no one has a bearing nearly this big. It provides you with smoother performance and longer life.
SawStop®, the SawStop® blade logo, and the configurations of SawStop® products are either registered trademarks or trademarks of SawStop®, LLC and are used with permission.
Overall saw dimensions: 69 1/4" w x 36 1/2" d x 34" h
Motor: 60Hz, TEFC: 3 hp, 230 V, 60Hz ,13 A, 1-Phase
Cabinet footprint: 20" w x 25" d
Cast iron table: 24" w x 30" d, 44" w x 30" d (w/ extension wings)
Extension wing: 10" w x 30" d
Shipping Weight (approx.): 767 lbs.
Blade: 60-tooth, professional-grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 3mm
Blade plate thickness: 2mm
Max. depth of cut, blade at 0° 3 1/8"
Max. depth of cut, blade at 45° 2 1/4"
Max. rip, right of blade: 36 1/2"
Max. rip, left of blade: 12 1/2"
Dado diameter: 8" (requires a separate brake cartridge)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 11"
Table behind blade (max. elevation): 9 3/4"
Arbor Runout: 0.001" Maximum allowable runout
Blade lateral movement over full elevation range: 0.006" Maximum
Table flatness measured diagonally: 0.010" Maximum gap
Overall table and extension wing flatness: 0.025" Maximum gap
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between splitter and blade: 0.010" Maximum difference
Dust collection port diameter: 4"
Riving knife/splitter thickness: 2.33mm
Blade guard: polycarbonate extends only 5/8" to the right of blade
Insert: zero clearance, phenolic core, melamine surfaces
Handwheels: 8" diameter, cast iron with chrome handle
Belts: 2 V-ribbed belts
