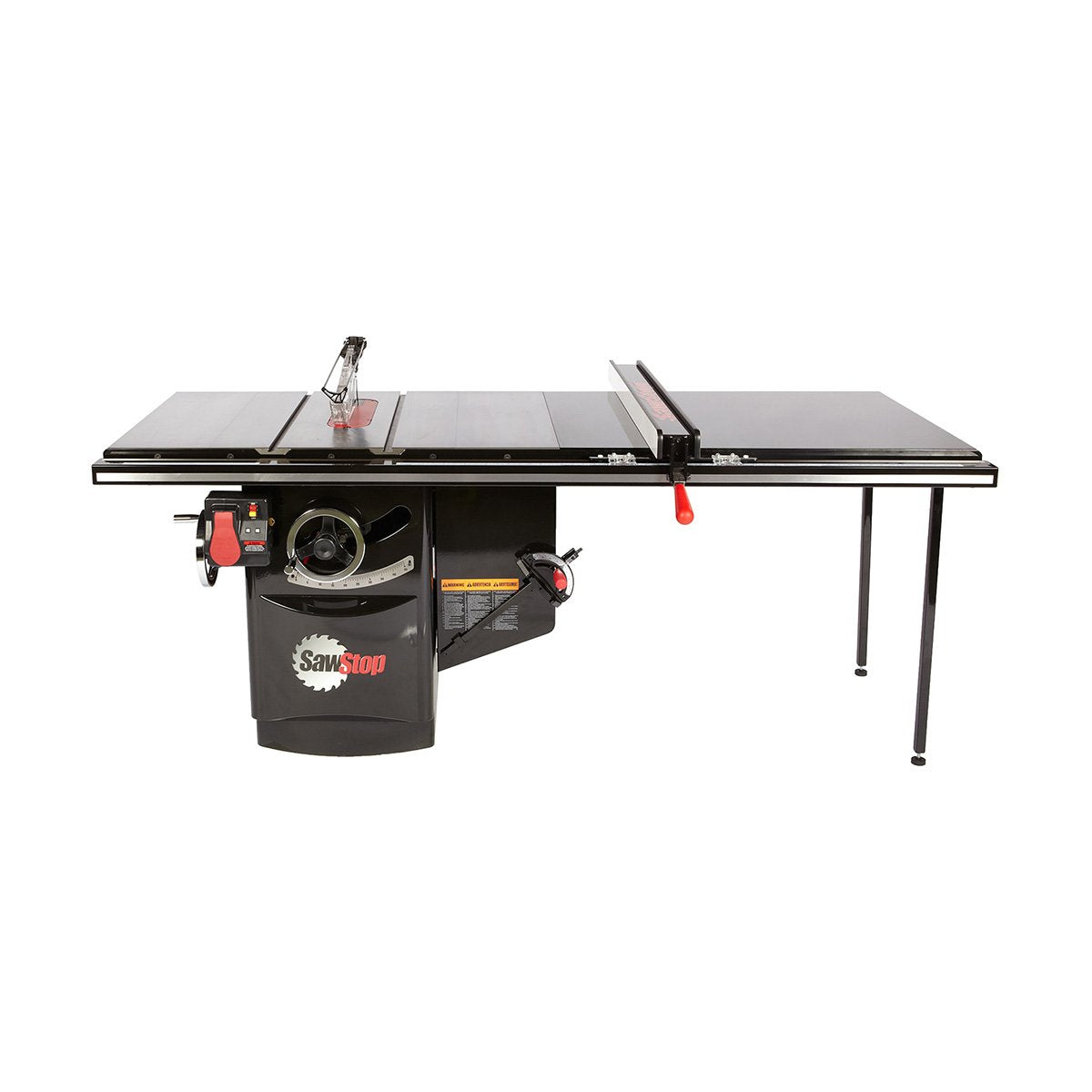

SawStop® 10" Industrial Cabinet Saw 52" Fence 3HP 1-Phase
SKU: ICS3123052
- Overview
- Specifications
Overview
The 10" SawStop® Industrial Cabinet Saw is the reference by which all other saws are measured: Precision and heavy-duty construction, the revolutionary safety feature that's made SawStop® famous, and 99% dust collection system that's second-to-none. It is, simply put, the finest SawStop® saw ever made.
Features:
- Deluxe T-Glide Fence System
- SawStop®; Safety System - Automatically stops and retracts the blade on human contact
- No job too hard. - The 3 HP single-phase motor easily cuts through the thickest hardwoods.
- Tool-Free Quick-Change Guard Mount - Make fast and easy transitions between blade and riving knife with no tools required
- Now featuring 99% Dust Collection. - The Centers for Disease Control has classified sawdust as a cancer-causing carcinogen. With an enhanced below-table blade shroud, the Industrial Cabinet Saw is a leader in dust collection.
- With the addition of the new Dust Collection Blade Guard, the Industrial Cabinet Saw captures 99% of generated dust. This innovative blade guard collects above-table dust and features independent lateral sides to minimize exposure to the blade. Its low profile allows for cuts as narrow as 3/4 of an inch.
- Large Start/Stop Paddle For Hands-Free Shut Off - It's easy to stop the blade even when both hands are occupied
- Strong and Smooth Fence System - A wide T-style fence and highly adjustable rail provides smooth movement along the length of the table
- Quality Fit and Finish - Attention to detail, premium craftsmanship and rigorous engineering combine to create a saw you'll love to use
- Quick Release, Zero-Clearance Insert - Features a quick-release mechanism for tool-free access to saw cavity
- Precision Alignment System - Adjust the blade and table alignment with precision not found on other saws
- Riving knife minimizes kickback and provides protection during non-through cuts.
- When it's closed, it's closed. Accessing the inside of the cabinet is easy with two safety-interlocked doors. The safety interlocks ensure the motor won't start if either door is open.
- When the power goes out, the saw stays off. The safety system won't allow the motor to restart automatically when the power comes back on.
- Left-tilting blade helps prevent wood from binding against the fence.
- Movement so smooth you'll look forward to changing elevation. Gas-assisted elevation adjustments provide incredibly smooth movement when raising and lowering the blade.
- The widely spaced trunnion system contains far more cast iron than any other saw on the market, providing superior stability while minimizing vibration.
- Massive 62mm main arbor bearing delivers long-lasting performance. Look around, no one has a bearing nearly this big. It provides you with smoother performance and longer life.
SawStop®, the SawStop® blade logo, and the configurations of SawStop® products are either registered trademarks or trademarks of SawStop®, LLC and are used with permission.
Specifications
Overall saw dimensions: | 85 1/4" w x 36 1/2" d x 34" h |
---|---|
Motor: 60Hz, TEFC: | 3HP, 230V, 13A, 60HZ, 1-Phase |
Cabinet footprint: | 20" w x 25" d |
Cast iron table: | 24" w x 30" d, 44" w x 30" d (w/ extension wings) |
Extension wing: | 10" w x 30" d |
Shipping Weight (approx.): | 799 lbs. |
Blade: | 60-tooth, professional-grade, 5/8" arbor |
Blade diameter: | 10" |
Blade tilt: | Left |
Blade kerf: | 3mm |
Blade plate thickness: | 2mm |
Max. depth of cut, blade at 0° | 3 1/8" |
Max. depth of cut, blade at 45° | 2 1/4" |
Max. rip, right of blade: | 52 1/2" |
Max. rip, left of blade: | 12 1/2" |
Dado diameter: | 8" (requires a separate brake cartridge) |
Dado max. width: | 13/16" |
Arbor diameter at blade: | 5/8" |
Main bearing size: | 62mm OD x 30mm ID |
Second bearing size: | 52mm OD x 25mm ID |
Table in front of blade (max. elevation): | 11" |
Table behind blade (max. elevation): | 9 3/4" |
Arbor Runout: | 0.001" Maximum allowable runout |
Blade lateral movement over full elevation range: | 0.006" Maximum |
Table flatness measured diagonally: | 0.010" Maximum gap |
Overall table and extension wing flatness: | 0.025" Maximum gap |
Blade alignment with miter slot: | 0.010" Maximum displacement |
Deviation of miter gauge indexing stops from actual: | ±0.25° |
Alignment between splitter and blade: | 0.010" Maximum difference |
Dust collection port diameter: | 4" |
Riving knife/splitter thickness: | 2.33mm |
Blade guard: | polycarbonate extends only 5/8" to the right of the blade |
Insert: | zero clearance, phenolic core, melamine surfaces |
Handwheels: | 8" diameter, cast iron with chrome handle |
Belts: | 2 V-ribbed belts |
