SawStop 10" Professional Cabinet Saw 52" Fence 1.75HP 1-Phase

SawStop

10" Professional Cabinet Saw 52" Fence 1.75HP 1-Phase

SKU: PCS175-TGP252

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.

$4,412.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

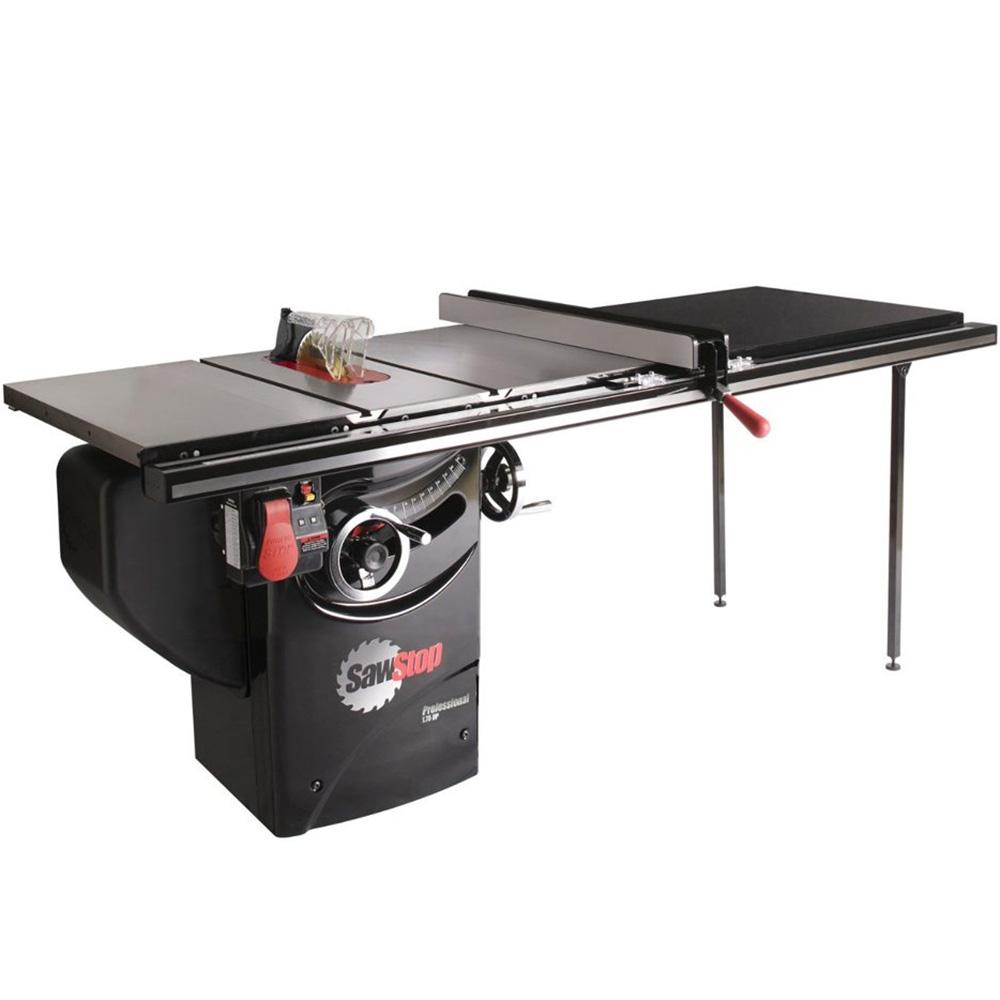

SawStop® 10" Professional Cabinet Saw 52" Fence 1.75HP 1-Phase

SKU: PCS175TGP252

The SawStop® 110V, 1.75HP 10" Professional Cabinet Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw's 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Professional Cabinet Saw is engineered to be the cornerstone of a high-end home shop.

Features:

  • Deluxe T-Glide Fence System
  • 110V, 1.75HP model is engineered for the home shop, as it delivers the convenience of plugging in anywhere and a smaller shop footprint combined with the Professional Cabinet Saw's safety, quality and dependability.
  • Safety System - Automatically stops and retracts the blade on contact with skin
  • A diagnostic self-check runs when you start the saw to ensure all systems are ready to detect an accident. If any problem is detected, the system will not allow the saw to start.
  • Tool-Free Quick-Change Blade Guard - Mount Make fast and easy transitions between blade guard and riving knife with no tools required
  • Features a quick-release mechanism for tool-free access to the saw cavity
  • 99% Efficient Dust Collection - Advanced control of over-and-under table airflow captures dust at the blade and directs it out of the saw
  • Fence and Rails Infinitely adjustable - T-Glide rail system and widely spaced glide plates provide smooth travel along the length of the table
  • Dust Collection Blade Guard (included with the 3.0HP model, optional for the 1.75HP model). This innovative blade guard collects above-table dust and features independent lateral sides to minimize exposure to the blade. It retains a low profile to allow for cuts as narrow as 3/4 of an inch.
  • Riving knife minimizes kickback and provides protection during non-through cuts.
  • Fit and Finish - Attention to detail, premium craftsmanship and rigorous engineering combine to create a saw you'll love to use
  • Precision Alignment System - Adjust the blade and table alignment with precision not found on other saws
  • When the power goes out, the saw stays off. The safety system won't allow the motor to restart automatically when the power comes back on.
  • Left-tilting blade helps prevent wood from binding against the fence.
SawStop®, the SawStop® blade logo, and the configurations of SawStop® products are either registered trademarks or trademarks of SawStop®, LLC and are used with permission.
1.75HP 110V
Overall saw dimensions: 85 1/4" w x 33" d x 34" h
Motor: 1.75 hp, 110V, 14A, 60Hz, 1-phase
Shipping weight (approx.): 528 lbs.
Max. rip, right of blade: 52"
Cabinet footprint: 19 3/8" w x 19 3/8" d
Cast iron table: 20" w x 27" d, 44" w x 27" d (w/ extension wings)
Extension wing: 12" w x 27" d
Blade: 40-tooth, professional-grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0°: 3 1/8"
Max. depth of cut, blade at 45°: 2 1/4"
Max. rip, left of blade: 12"
Dado diameter: 8" (requires a separate brake cartridge and table insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 1/4"
Table behind blade (max. elevation): 7 1/2"
Arbor runout: 0.001" Maximum allowable runout
Blade lateral movement over full elevation range: 0.006" Maximum
Table flatness measured diagonally: 0.010" Maximum gap
Overall table and extension wing flatness: 0.025" Maximum gap
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between spreader and blade: 0.010" Maximum difference
Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
Dust collection port diameter: 4"
Riving knife/splitter thickness: 0.078" (2mm)
Blade guard: polycarbonate extends only 5/8" to the right of the blade
Insert: zero clearance, steel core, ABS surfaces
Handwheels: 7" diameter, cast iron with chrome handle
Belts: 2 V-ribbed belts – arbor belt is static dissipative
