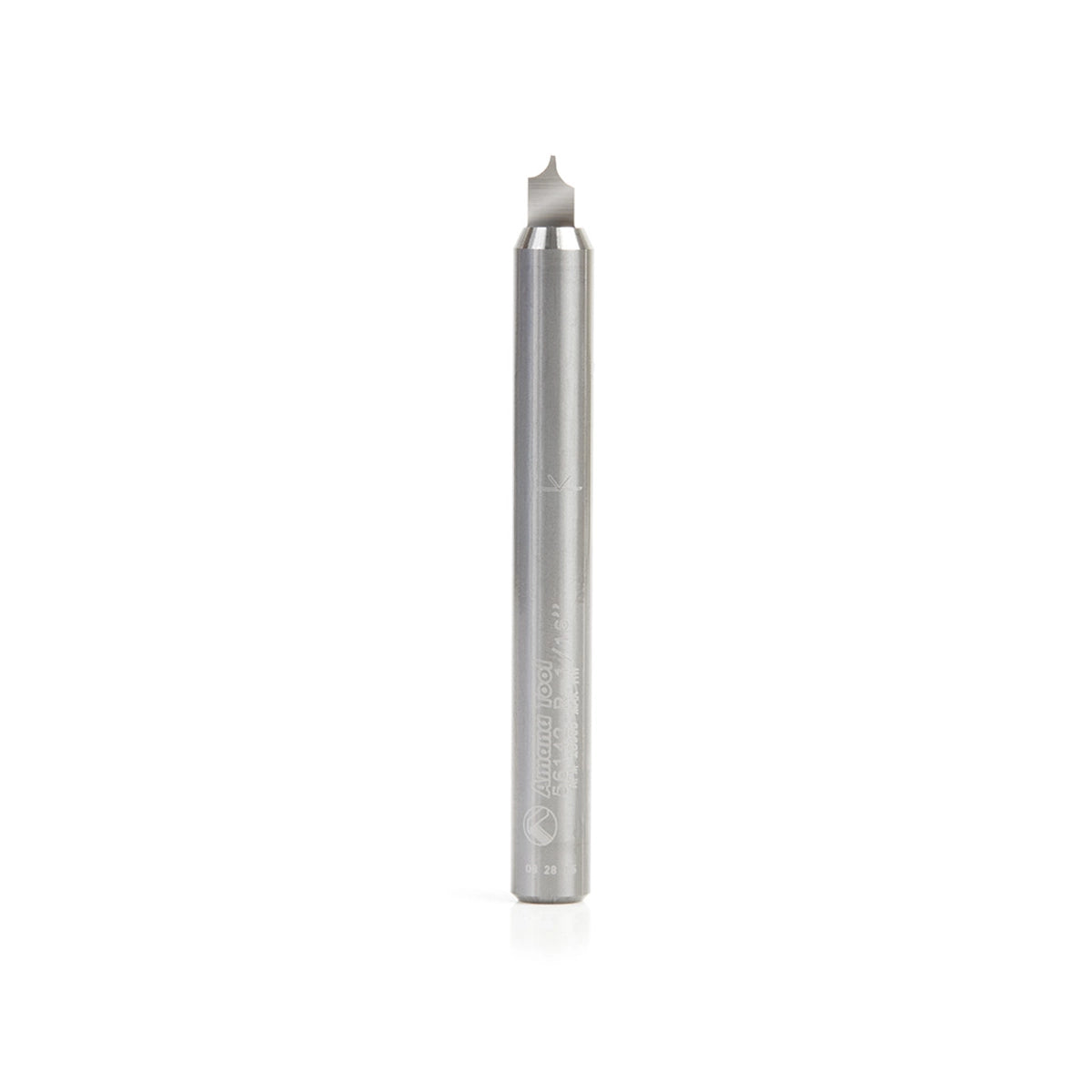

Amana Tool Solid Carbide Point Cutting Roundover 1/16 Radius x 9/64 Dia x 7/32 x 1/4 Shank Router Bit
SKU: 56142
| (D) Diameter: | 9/64" |
|---|---|
| D1: | .02" |
| Radius: | 1/16" |
| (B) Cutting Height: | 7/32" |
| B1: | 1/16" |
| (d) Shank: | 1/4" |
| (L) Overall Length: | 2-1/4" |
| Type: | Solid Carbide |
| Flutes: | 1 |
- Overview
- Tool Data Downloads
For lettering, engraving, signmaking, fluting and decorative trimming.
Note: Due to very fine plunge point, bit is not guaranteed against breakage.
56142 Vectric Compatible Tool File
The 56142 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.
Vectric File Warning
The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
Master Tool File
Speed & Feed Rates
