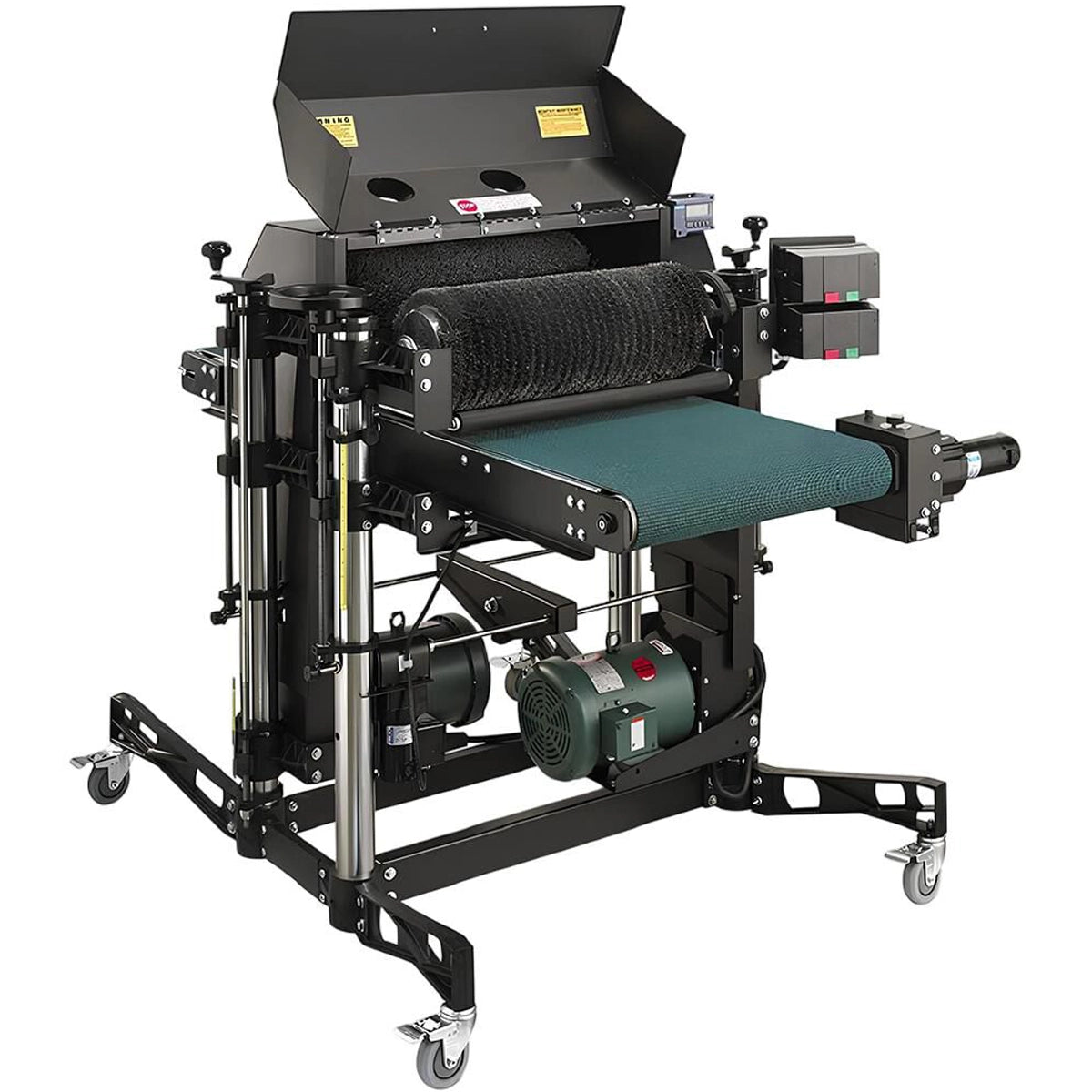

SuperMax® SuperBrush Double Brush Sander
SKU: SUPMX-93X67-2
- Overview
- Specifications
SuperMax Tools® offers a wide variety of SuperBrush™ sanders to meet the many needs of any woodworking shop. Our goal is to provide an excellent priced machine yielding an incredible return on investment by creating faster output, reduced rework, and greater product consistency.

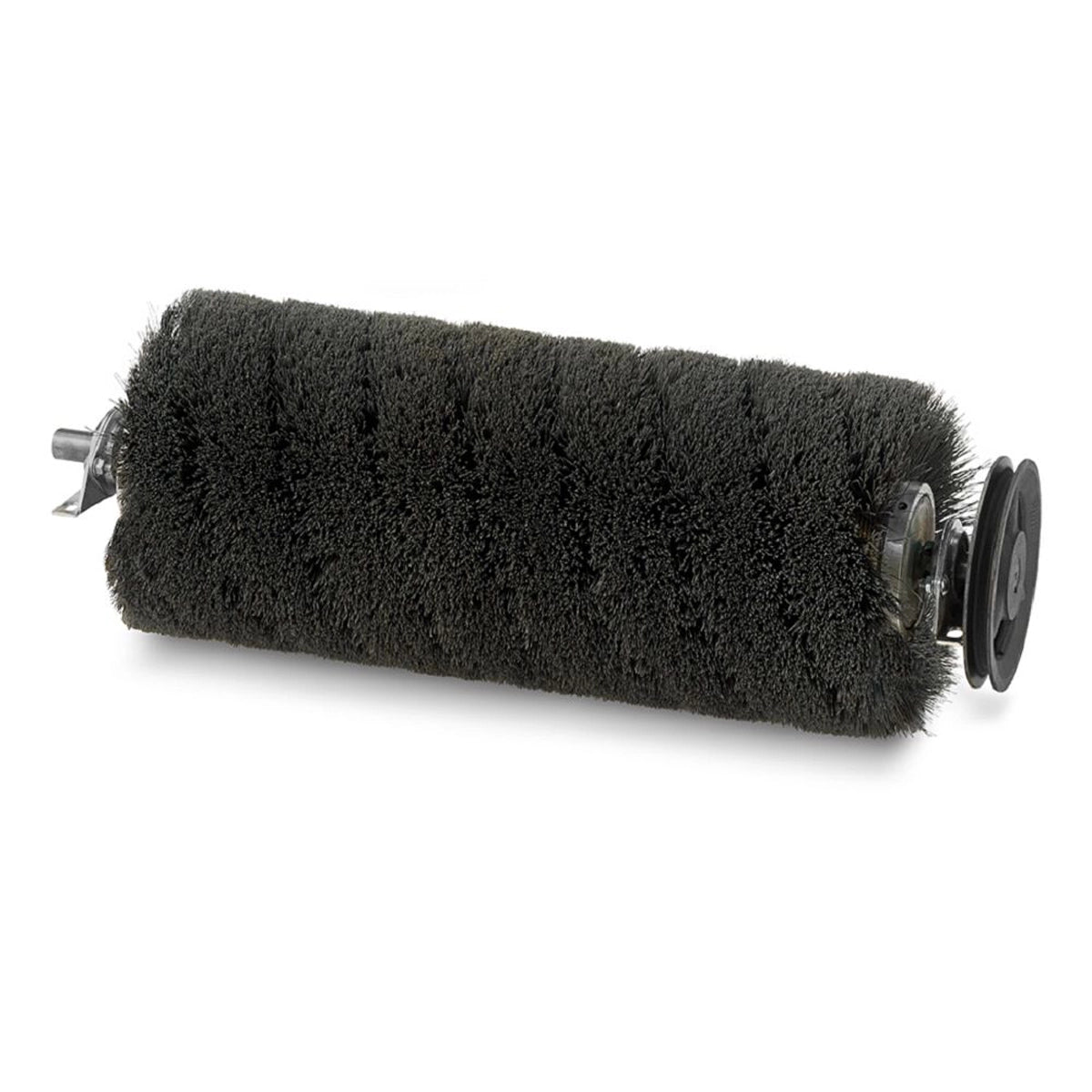

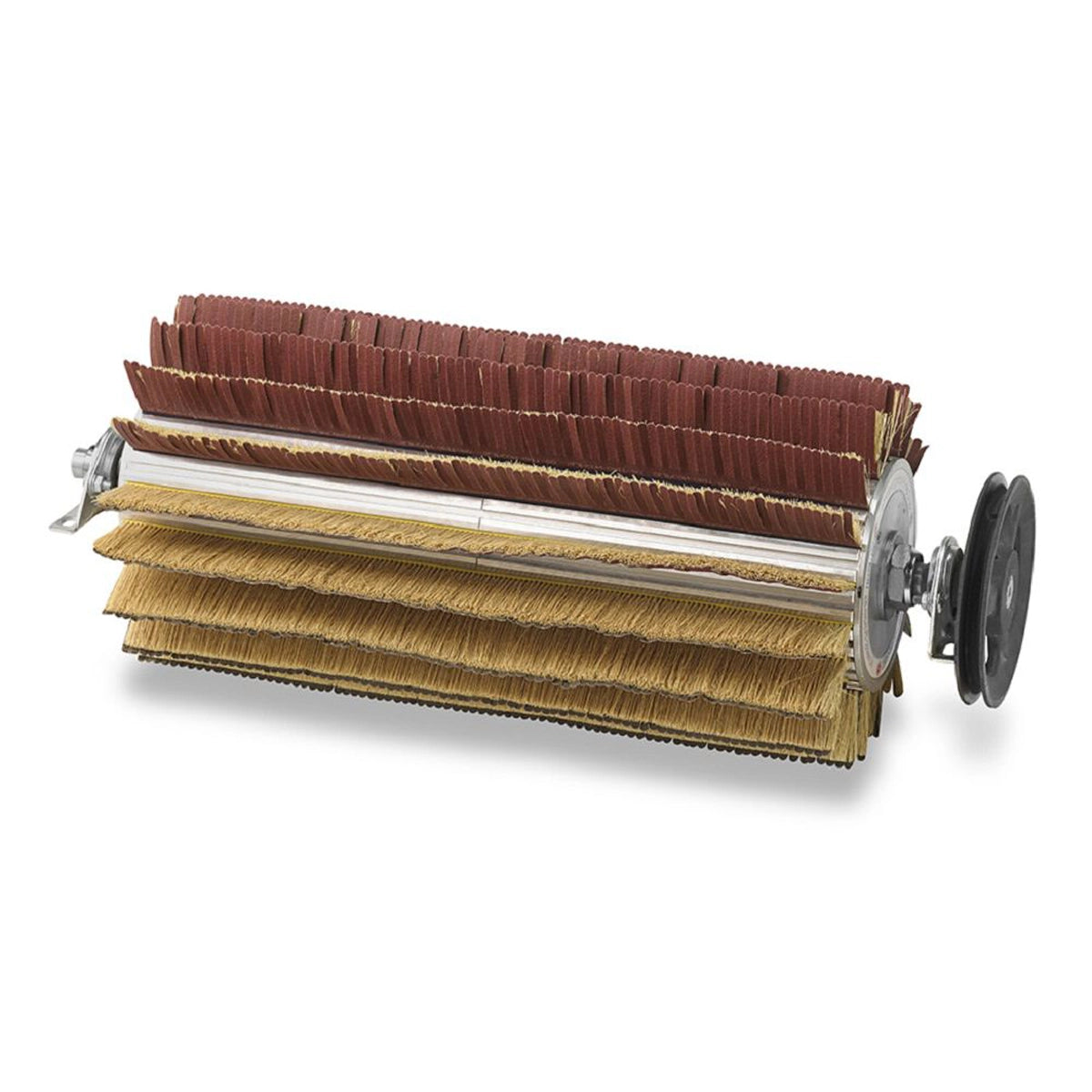

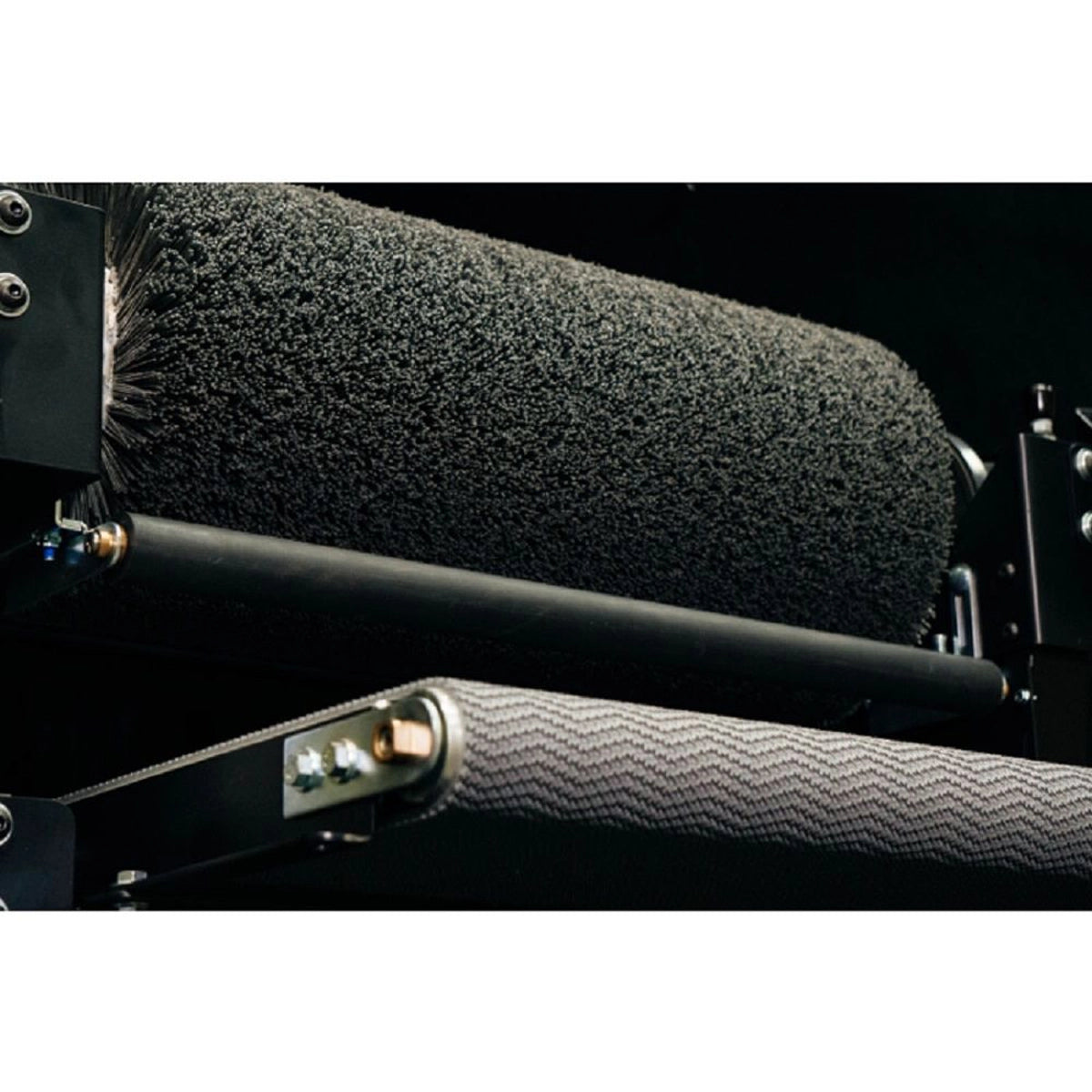

These easy to use machines come with an extremely low learning curve and offer many different features which include: quick change brush heads, infinitely variable brush and conveyor speeds to allow for endless finish possibilities, adjustable tension rollers to prevent stock slippage, and precision height adjustments. Our SuperBrush™ sanders come in sizes ranging from 24″ to 49″ with single and/or double brush head offerings to meet all your finishing needs.
Features:
- Wire brushing to pull out soft grain to create textured surface
- Raw Wood Sanding
- White Wood Sanding
- Sealer Sanding
- Primer Sanding
- Scuff Sanding
- Profile Sanding
- Break sharp edges
- Blend out minor defects
- Clean reclaimed wood
Additional Features:

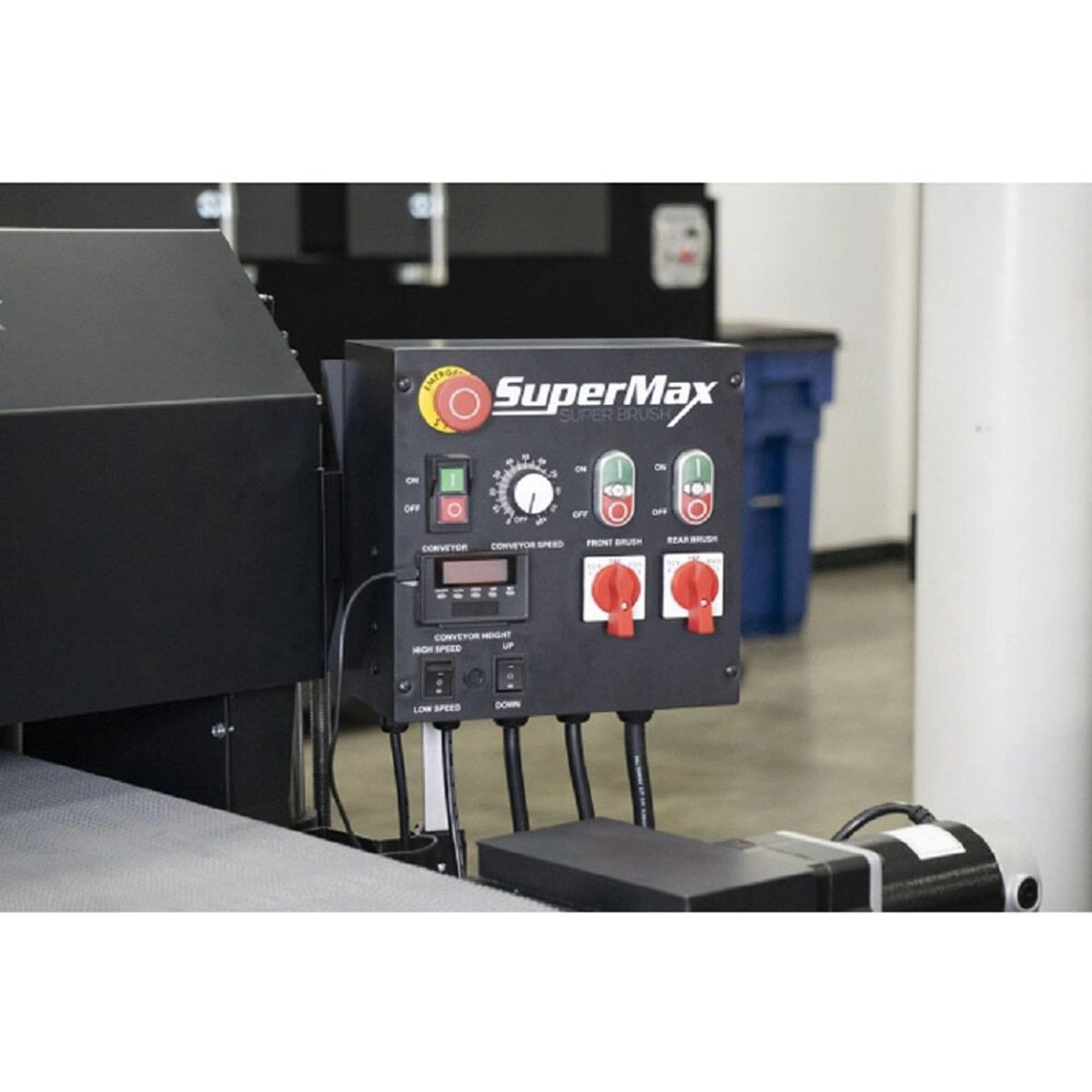

- Digital Readout
- Displays the actual thickness of the stock as it exits the sander
- Displays how much material is being removed per pass
- Displays zero when the desired thickness is reached
- Power and manual height adjustment, high speed and adjustable speed, controls 3/32 per turn
- RPM gauge displays brush speed, variable 400-1200 RPM
- Brush rotation is reversible (second brush)
| Sanding Capacity Maximum Width: | 24″, 36″, or 49″ | ||
|---|---|---|---|
| Sanding Capacity Maximum Thickness: | 9″, varies with brush style | ||
| Sanding Capacity Minimum Length: | 11" | ||
| Sanding Capacity Minimum Thickness: | 1/32" | ||
| Main Motor: | 24″, 36″ models: (2) 7-1/2HP 49″ models: (2) 10HP | ||
| Power Requirements: | 24,″ 36″ models: 208-230V, 60HZ, 3 Ph, 20 amp service (2) 49″ model:208-230V, 60HZ, 3 Ph, 30 amp service (2) | ||
| Conveyor Motor: | 220 in.-lb. torque, direct drive D.C. motor, ranged variable 0-30 FPM | ||
| Brush Speed: | Ranged variable, 400-1200 RPM brush | ||
| Dust Hood: | 24″ model: Four (4), 4″ vacuum ports, 1800 CFM min | 36″ model: Six (6), 4″ vacuum ports, 1800 CFM min | 49″ model: Six (6), 4″ vacuum ports, 2400 CFM min |
| Dimensions (H x W x D): | 24″ model: 67″ x 46″ x 54″ | 36″ model: 67″ x 58″ x 54″ | 49″ model: 50″ x 71″ x 31″ |
| Shipping Weight: | 24″ model: 1100 lbs. | 36″ model: 1340 lbs. | 49 model: 1550 lbs. |
