SuperMax Tools 19-38 Combination Brush/Drum Sander

SuperMax Tools

19-38 Combination Brush/Drum Sander

SKU: 219383

Currently Out of Stock
Order Now and we will contact you with availability date

Your Credit Card will not be charged until the availability date is accepted.

$3,779.10 $4,199.00


Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

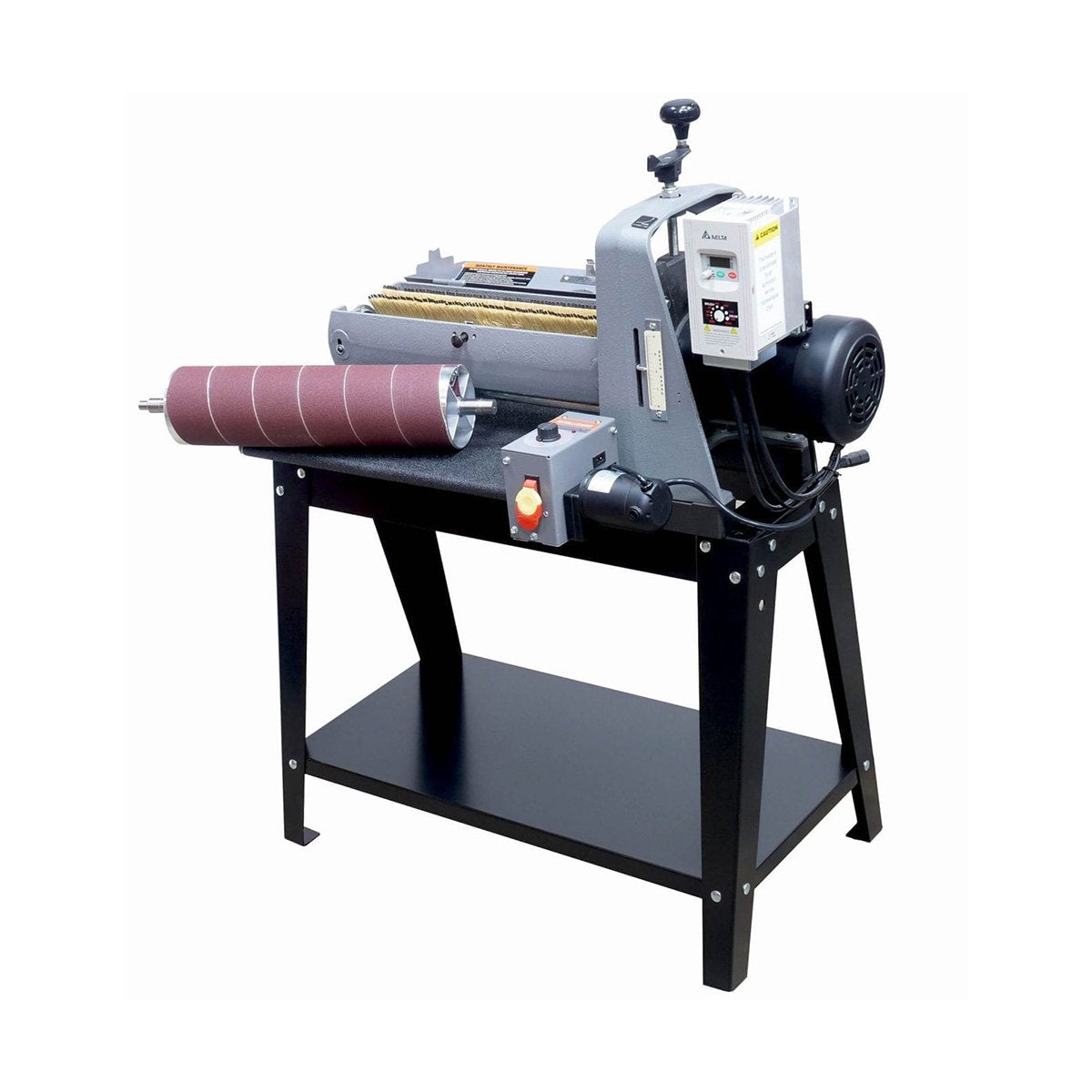

SuperMax® 19-38 Combination Brush/Drum Sander

SKU: 219383

Simplify sanding with a 19-38 Combination Brush/Drum Sander! Our exclusive technology allows you to drum sand and profile sand on the same machine! Interchangeable drum and brush heads allows for unlimited applications!

We’ve addressed issues common with other drum sanders by adding five features that are exclusive to our 19-38 machines. No other drum sander on the market has these features!


  • Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy
  • Indexed alignment setting Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19”, the index lever will properly adjust the conveyor for flawless wide sanding
  • Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments
  • Extra-wide conveyor to properly support stock over 19” wide. The conveyor table is 22” wide to add support to the workpiece
  • Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues

Additional Features:

  • INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load
    • Prevents gouging, damaging or burning stock
    • Provides consistent finish even with varying grain pattern and density
    • Greatly increases abrasive planing and dimensioning speed
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010? across the width of the sander
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
  • Easiest access to the abrasive fastening system of any drum sander! Extra-wide space to access fasteners to eliminate the need for special tools
  • Self-cooling drum prevents overheating and extends abrasive life
  • Tension rollers are adjustable in height and hold down pressure, eliminating snipe
  • Excellent dust extraction as dust cover is formed to shape of drum Metal, not plastic, is formed to maximize airflow and dust extraction
  • Heavy-duty cast iron construction for strength, rigidity and reduced vibration

Head Types/Applications

Flatter: Produces a hand-sanded finish on profiles like moulding, raised panel doors, and plywood

Nylon: Scuff sand and defuzz stock

Wire: Pull the soft grain out from softwoods or clean reclaimed lumber

Drum: Dimension or finish sand flat stock


  • Equipped with 180 Grit Flap Sanding Head
  • Sanding Drum with 80 grit wrap
  • Open Stand Included
Sanding Capacity Maximum Width: 38" (two passes)
Sanding Capacity Maximum Thickness 4" (Varies With Application)
Sanding Capacity Minimum Length 5-1/2"
Sanding Capacity Minimum Thickness 1/32"
Main Motor: 1.75HP, 110V, 15A, 60Hz 1-Phase
Conveyor Motor: 43in.-lb torque, direct drive D.C. motor, ranged variable 0-10
Brush Speed: AC Inverter, infinitely variable, 200-1000 RPM
Drum Speed: 1740 RPM
Dust Port: 1 – 4" Vacuum port, min. 600 CFM Recommended
Dimensions (H x W x D): 24" x 40" x 24"
Net Weight: 264 lbs.
Shipping Dimensions (H x W x D): 43" x 16" x 24"
Shipping Weight: 371 lbs.
