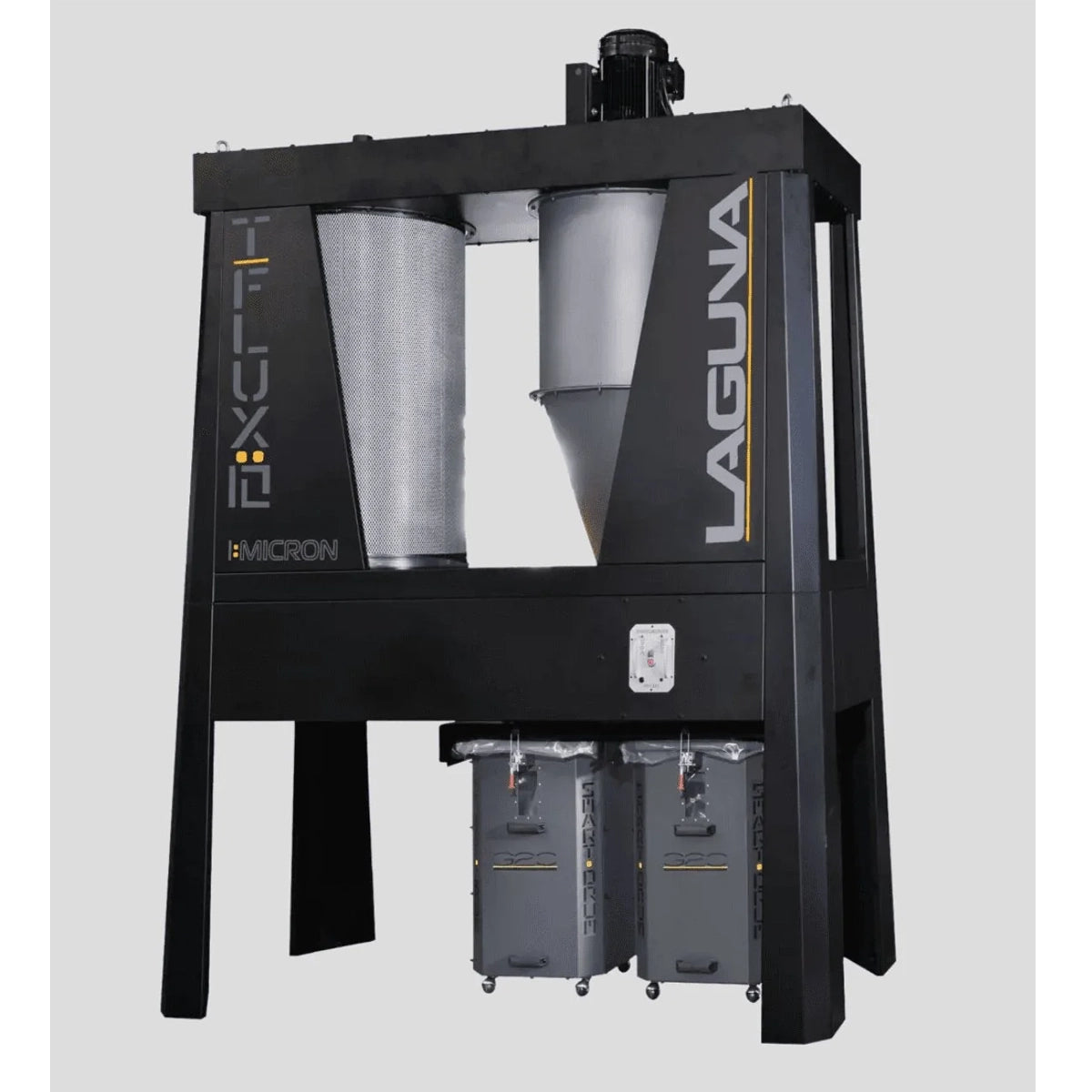

T|Flux 10 Cyclone Industrial Dust Collector
T|Flux 10 Cyclone Industrial Dust Collector
SKU: SKU:MDCTF102203
Overview: The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop The T|Flux cyclones...Full description below
Special Order Item
Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
Share
- Overview:
- Specifications
The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop The T|Flux cyclones are equipped with a 12″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.
Features:
- Phase: 3
- Motor HP: 10 HP
- Amps: 30 Amps
- Voltage: 220V
- RPM: 3450
- Hertz: 60
- Hertz: Hand Held Remote Control: High Frequency
- Hertz: Switch Type: Sunken Radio Frequency Remote switch with LED full drum & LED Filter dirt detection
- 50 AMP Recommended Breaker
| Motor: | 10HP, 220V, 60Hz, 30A 3-Phase |
|---|---|
| R.P.M. | 3450 |
| Filtration Efficiency | 0.2-2 Micron |
| Max Static Pressure (Inches of Water) | 16.8″ |
| Filter Area | 19.2 m²/207 ft² |
| Inlet Diameters | 12" |
| Impeller/Fan Size | 18.5″ |
| Impeller Material | Steel |
| Impeller Type | Radial Fin |
| Canister Filter Lower Dust Collection | Plastic Bag(740 x 600mmL) |
| Canister Cleaning | Auto Clean (Gear Motor)/ Cleans every hour 10 sec clockwise, 10 sec counter-clockwise |
| Canister Diameter | 750mm (29.53″) |
| Canister Length | 1200mm (47.24″) |
| Drum Collection Bag (Dia. x L) | Plastic Bag (740 x 1300mmL) |
| Drum Capacity | 54 ga x 2 Sets |
| Octagon Drum | Low Pressure Suction |
| Filter Type | Black 1 Micron |
| MERV Rating | 12 |
| Decibel Reading | 81 dB(A)(@9.8ft) |
| Machine Weight | 590 kgs/1301 lbs |
| Shipping Weight | 735 kgs/ 1621 lbs |
| Shipping Dimensions (L x W x H) | 100″ x 49″ x 86″ |

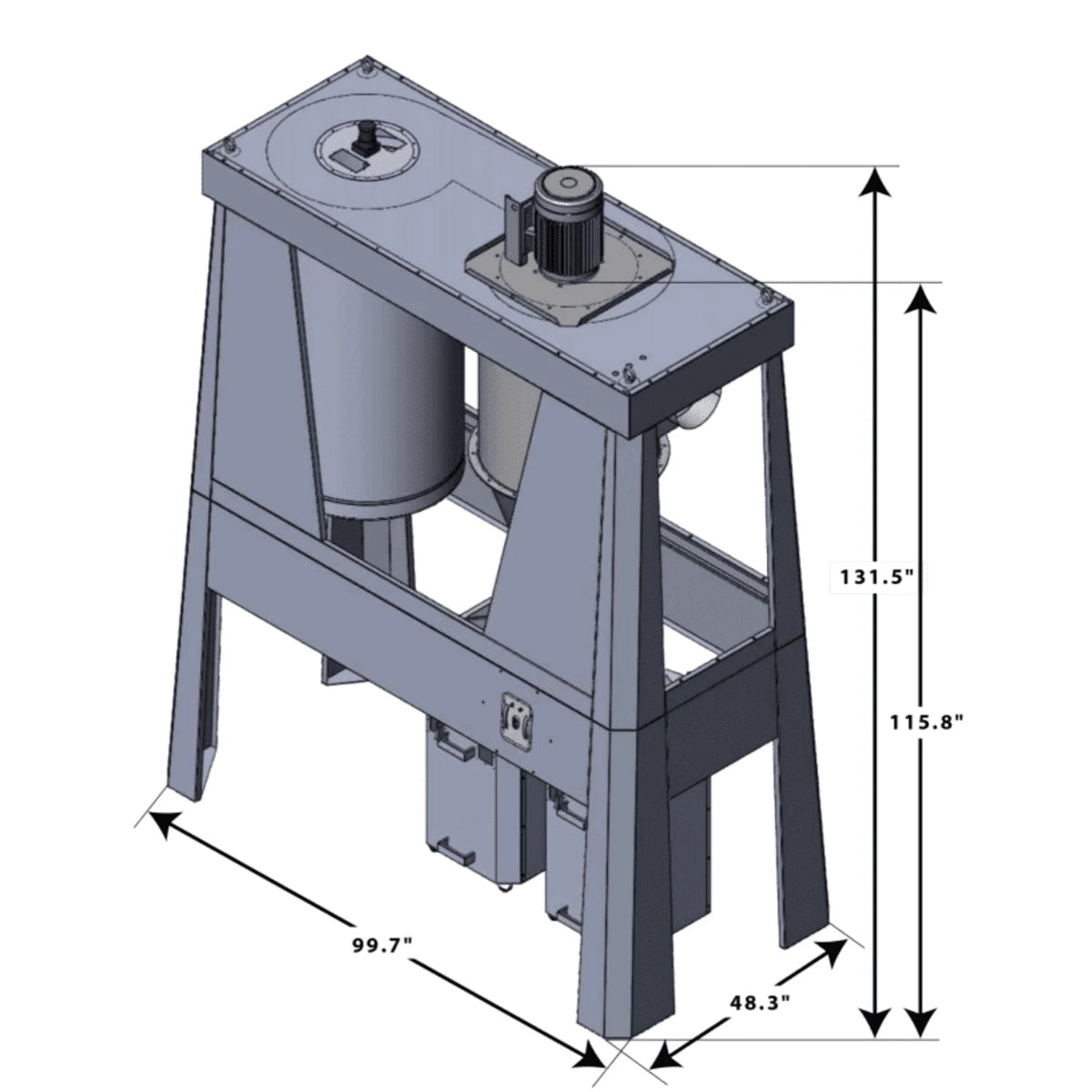

| Assembled Dimensions (L x W x H) | 99.6″ x 48.3″ x 131.4″ (2530 x 1225 x 3337mm) |
