TSO Products PTR-18 PLUS Precision Triangle

TSO Products

PTR-18 PLUS Precision Triangle

SKU: 61-340 A



Free Shipping

Click Checkmark for Details

TSO Products PTR-18 PLUS Precision Triangle

SKU: 61-340 A

PTR-18 PLUS: Updated With Expanded Capability

Expand your woodworking capabilities with the PTR-18 PLUS, part of the first precision triangle family designed to take full advantage of work surfaces featuring the 20mm hole pattern popularized by the Festool MFT/3 MultiFunction Table.

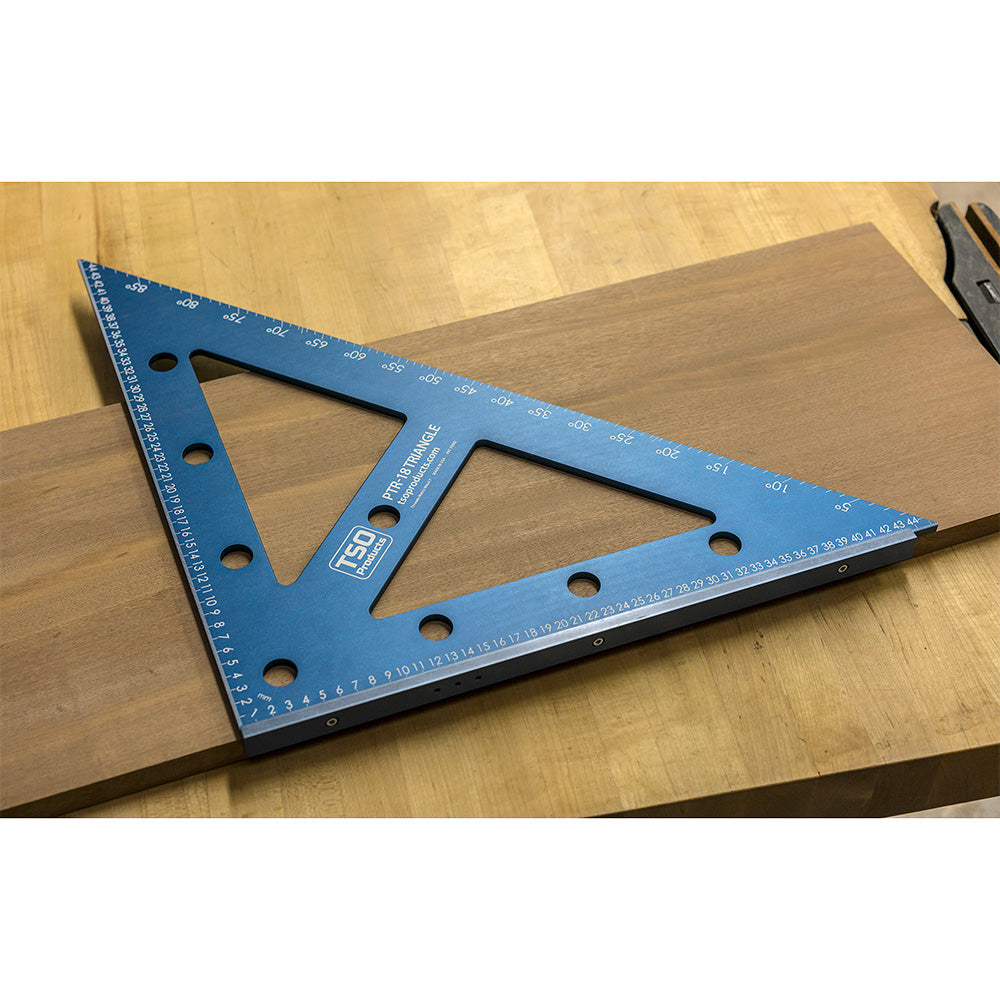

Out of the box, the PTR-18 PLUS will be the most accurate triangle in your arsenal—but it’s no simple triangle. Careful engineering and smart design features set the PTR-18 PLUS apart, making it a great solution for squaring your workpiece on a Festool MFT/3, verifying the accuracy of a custom-made perforated worktop or traditional triangle duties such as angle setting on your miter saw, marking angles, or ensuring dead-square cuts on sheet goods. With its removable foot, this triangle literally stands on its own—to verify squareness of a cabinet interior—or to register a quick 45-degree angle against a reference edge. The PTR-18 PLUS is made in the USA from cast aluminum tooling plate on high-precision CNC machining centers and anodized for maximum durability.

  • Guaranteed Accurate: Machined on high-precision CNC machining centers and made from thick precision aluminum tooling plate guaranteed square to within .001” over its 18” length as verified using an automated CMM (Coordinate Measuring Machine).
  • Removable Foot: Enables freestanding use or quick angle measurement off the edge of your table or workpiece. Includes hex wrench and stainless steel socket screws which can be conveniently stowed in tapped holes along the foot when not in use.

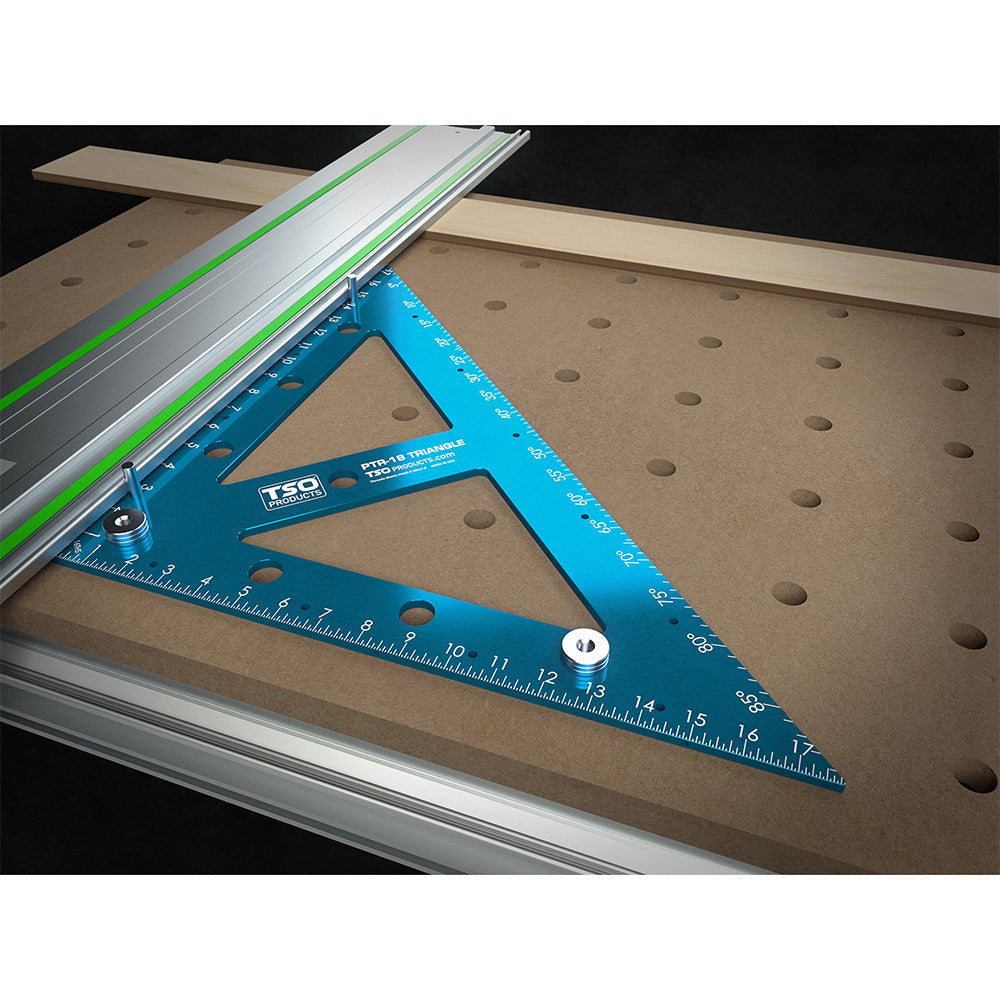

  • Accepts 20mm Bench Dogs: Eight 20mm holes are perfectly positioned on 96mm centers to align with the hole pattern on your Festool MFT/3 table or similar perforated worktop and accept our DoubleGroove™ Medium Dogs—providing an accurate, repeatable, and adjustable means of rapidly aligning workpieces or ensuring the squareness of your Festool fence and guide rail. (Note that you can also use widely available alternative bench dog brands, but those alternatives may not provide enough depth to accommodate clamping knobs—like our well-regarded M8 SpeedKnobs™—once inserted through the triangle and table.)
  • Dual Dimensioned: Both Imperial or Metric measurement included (one on each side).
  • Easy to Read: Extremely legible, large, laser-engraved marking.

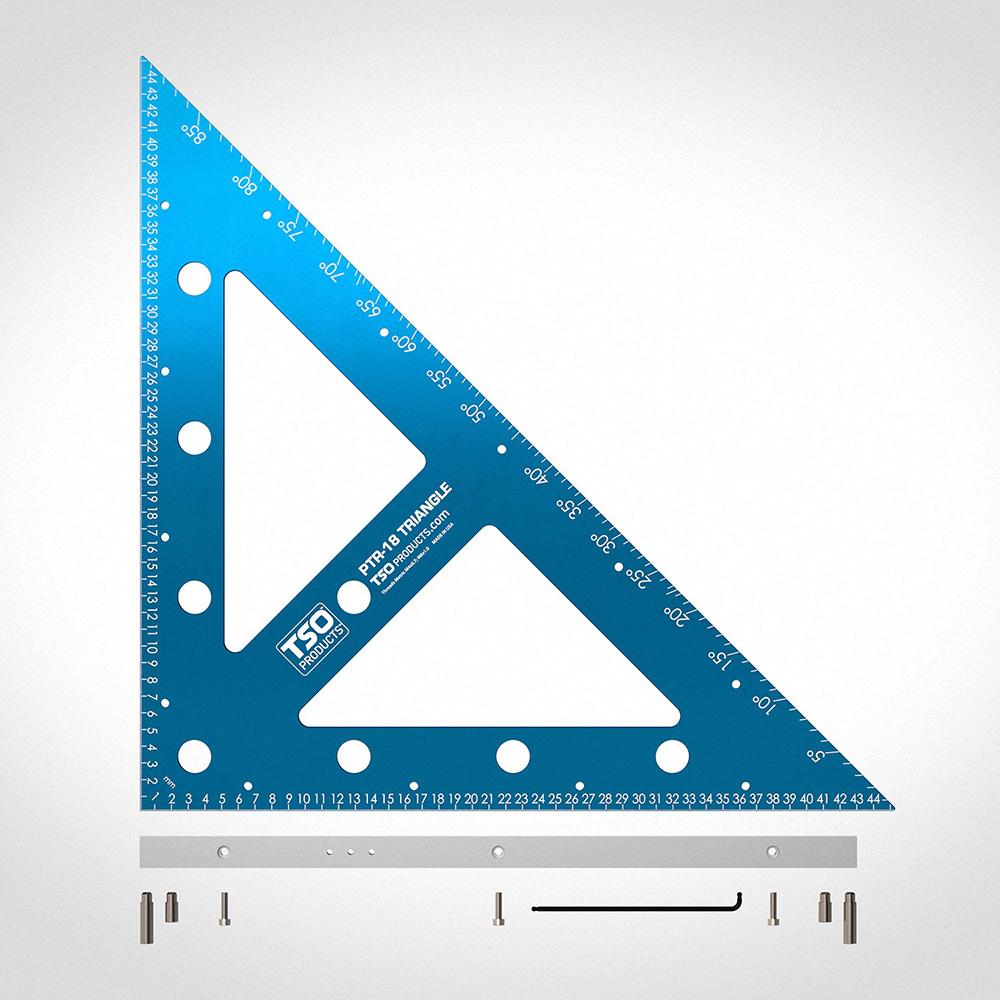

PTR-18 PLUS Precision Triangle Body
PTR-18 Removable Foot
9 - M4 Socket Head Cap Screws
M3 Hex Wrench
2 - Edge Locating Pins
2 - Guide Rail Squaring 25mm Tall Pins

Expandable with Accessories:

*DoubleGroove™ Medium Dogs and M8 SpeedKnobs™ to index the PTR-18 PLUS to your Festool MFT/3 table or custom 20mm work
*Clamping Angles for casework squaring

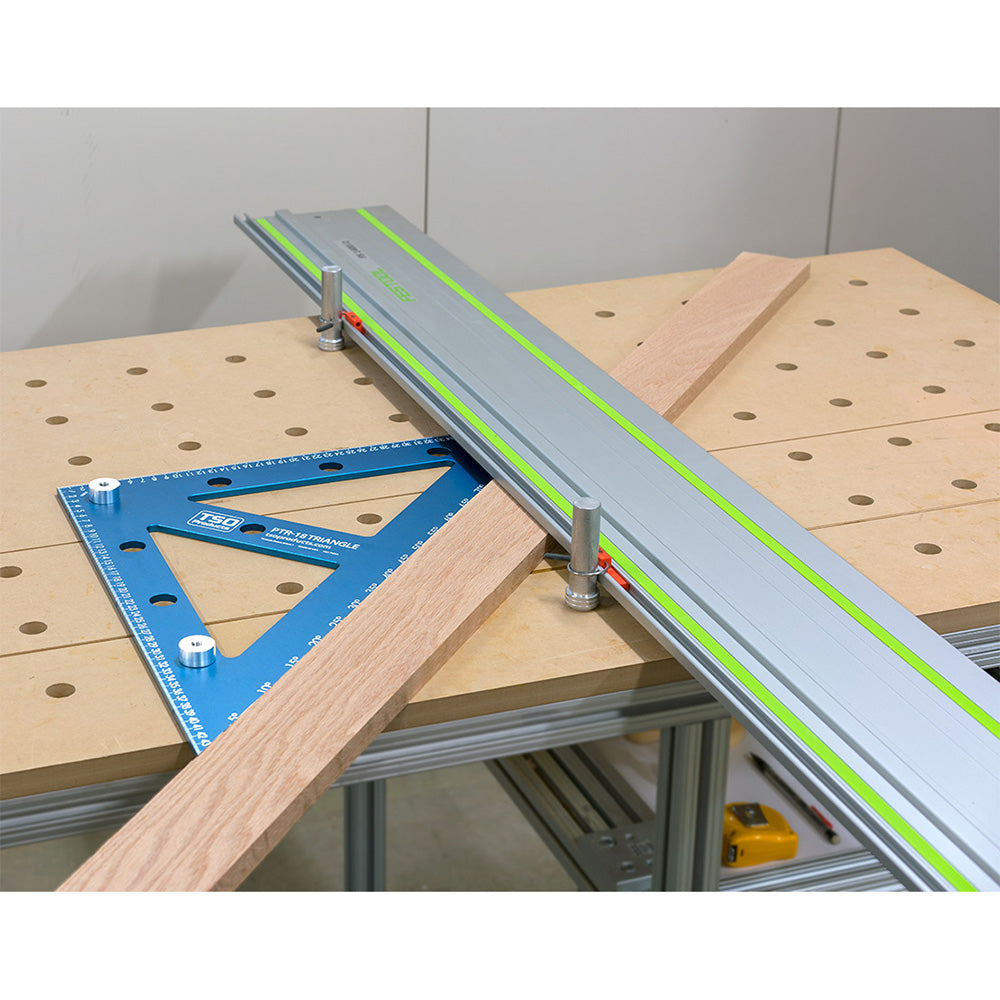

*Dog Rail Clips locking to FESTOOL Guide Rails
