TSO Products Power-Loc™ Bench Connector Dogs

SKU: 61-455

Simply The Best All-In-One Solution For Connecting 20mm Worktops

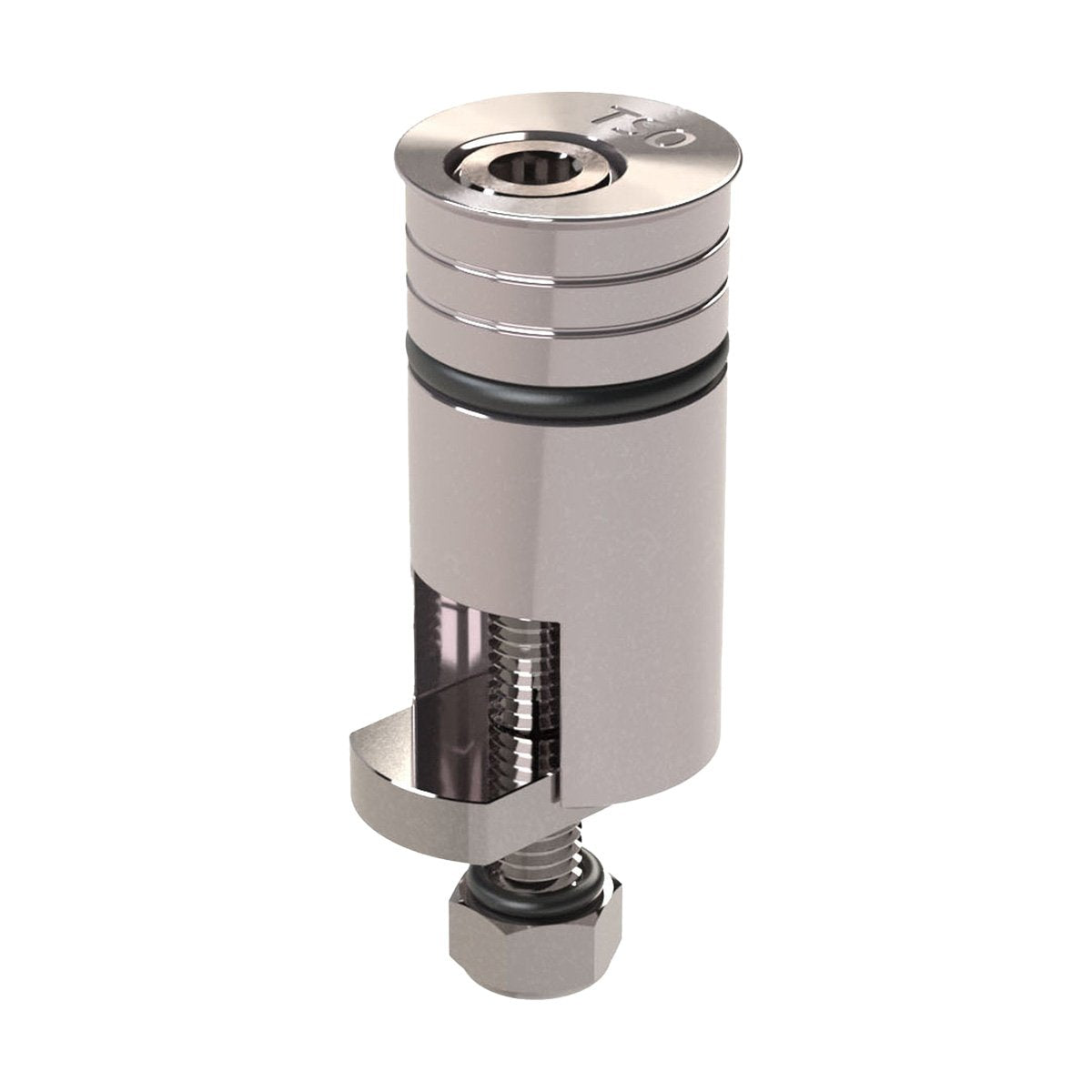

The latest addition to our growing line of Bench Connectors, Power-Loc Dogs feature a patent-pending innovative cam action and swiveling locking lug that eliminates the need to use a clamping knob from beneath your workbench. Simply insert the Power-Loc Dog through the top of a chamfered 20mm dog hole, turn the socket head cap screw clockwise, and watch as the locking lug rotates outward and secures your worktops together. Power-Loc Dogs feature a total stock thickness capacity range from 30mm (1-3/16") to 40mm (1-9/16").

Picking The Right Bench Connector

While simple clamps can be used to layer and secure 20mm work surfaces, we're partial to Bench Connector Dogs for two main reasons: they provide precision registration and alignment of your work surfaces, and they apply strong clamping pressure without taking up valuable space on your worktop. Power-Loc Dogs, similar to our Smart Connect Dogs, are designed with a chamfered lip to sit flush or slightly below your work surface.

The advantage of Power-Loc Dogs comes from their self-contained clamping method. Rather than requiring an M8x1.25 clamping knob to be attached and secured from underneath the table, Power-Loc Dogs are secured from the top of the table by way of a 5mm hex key or 5mm hex driver. This above-table clamping action may be preferred if the underside of your table is obscured, or if you don't wish to purchase or store additional clamping knobs.

Avoid over-torquing the Power-Loc Dog; a "snug fit" of the locking lug against the bottom work surface is all that is required.

To flush mount Power-Loc Dogs, you will need to chamfer the 20mm holes on your work surface. We recommend using a trim router with a quality 45-degree chamfer bit, as this allows you to perfectly adjust the depth of the chamfer to match these bench dogs. We do not recommend using the fixed-cut-depth of the UJK Chamfer Tool which is not suitable for plywood.
