TSO Low Profile Bench Stops

These clamps are a great way to fix your workpiece and with 20x96 millimeter hole patterned worktops, you have plenty of clamping options. While the traditional F-style clamp works great for many workholding tasks, many routine woodworking operations such as planing, scraping or sanding often require unobstructed access to the top of your work surface. That’s where these low profile bench stops come in handy.

Designed for precision and versatility, Low Profile Bench Stops provide secure workholding without getting in your way. Use the Ultra Low Profile Stops for material as thin as 5mm, and the Low Profile Stops for pieces 12mm (about ½") and thicker. The set includes both thickness options, with two right-angle and two straight stops of each type, plus eight Smart Connect Bench Dogs for fast, tool-free installation—four matched to each stop profile.

All components are CNC-machined in the USA from brushed 6061-T6 aluminum and sit low enough to pass under most hand tools and sanders. Everything arrives neatly organized in a precision-cut Kaizen foam insert, ready for your TSO Systainer³ M 112.

Features:

• Comes with eight stops in total, in two thicknesses: low profile (for workpieces as thin as 5mm) and ultra-low profile (for workpieces 12mm and thicker)
• Includes eight custom 20mm Smart Connect Dogs for fixturing into your table
• Acts as a solid backing surface against your work, while providing unobstructed access to the top surface of your workpiece
• Can be mounted into the table straight or at 45 degree angle

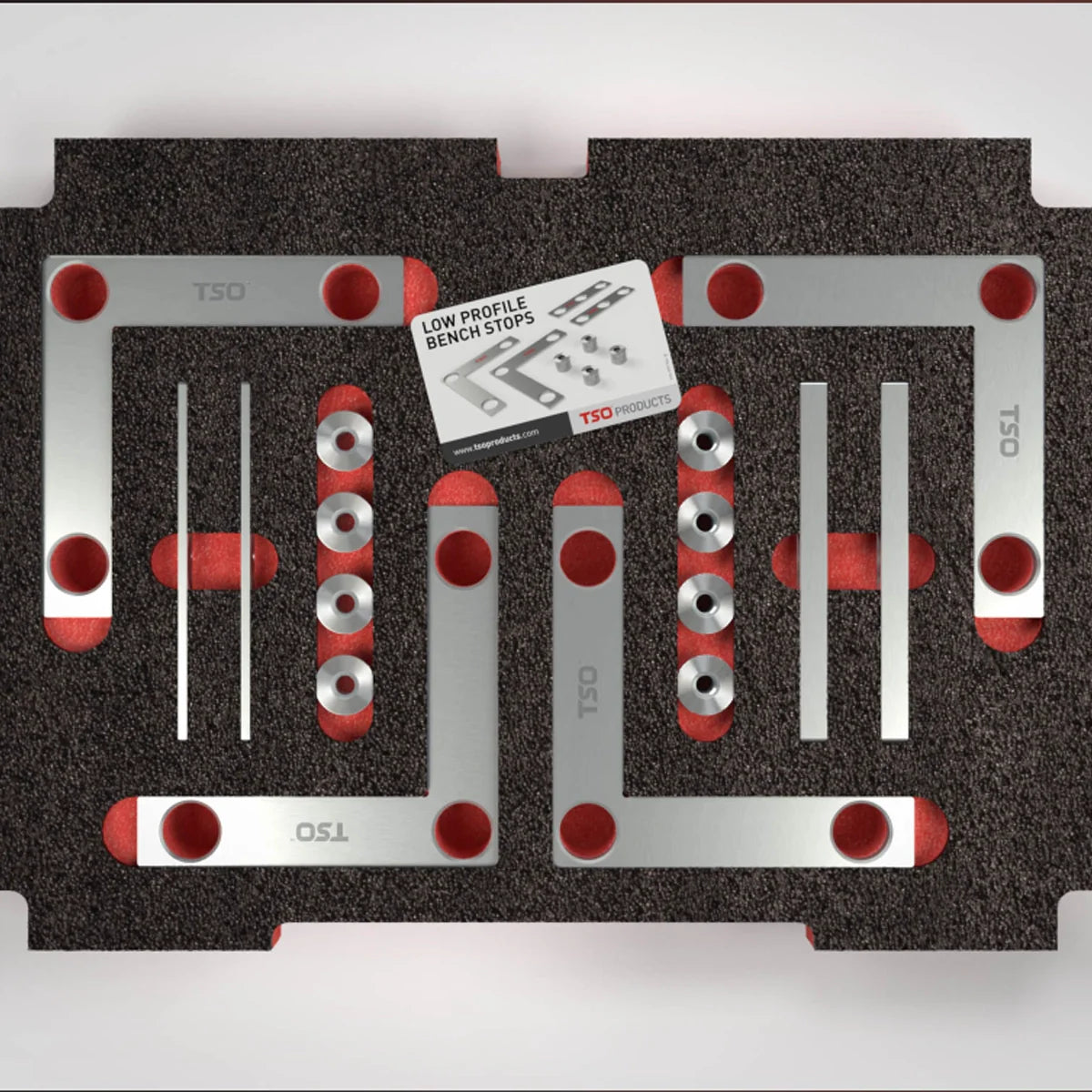

Includes:
2 qty. Low Profile Bench Stops, Right Angle
2 qty. Ultra Low Profile Bench Stops, Right Angle
2 qty. Low Profile Bench Stops, Straight
2 qty. Ultra Low Profile Bench Stops, Straight
4 qty. Smart Connect Bench Dogs, 28mm Body Length
4 qty. Smart Connect Bench Dogs, 17mm Body Length
Kaizen Foam Systainer Insert

Specifications:
Dimensions, Standard Low Profile Stops:
Right Angle Stop: 127mm (5.0") L x 127mm (5.0") W x 9.5mm (0.375") H
Straight Stop: 127mm (5.0") L x 25mm (0.98") W x 9.5mm (0.375") H
Dimensions, Ultra Low Profile Stops:
Right Angle Stop: 127mm (5.0") L x 127mm (5.0") W x 3.2mm (0.125") H
Straight Stop: 127mm (5.0") L x 25mm (0.98") W x 3.2mm (0.125") H
Material: Aluminum, 6061-T6
Finish: Orbital brushed
