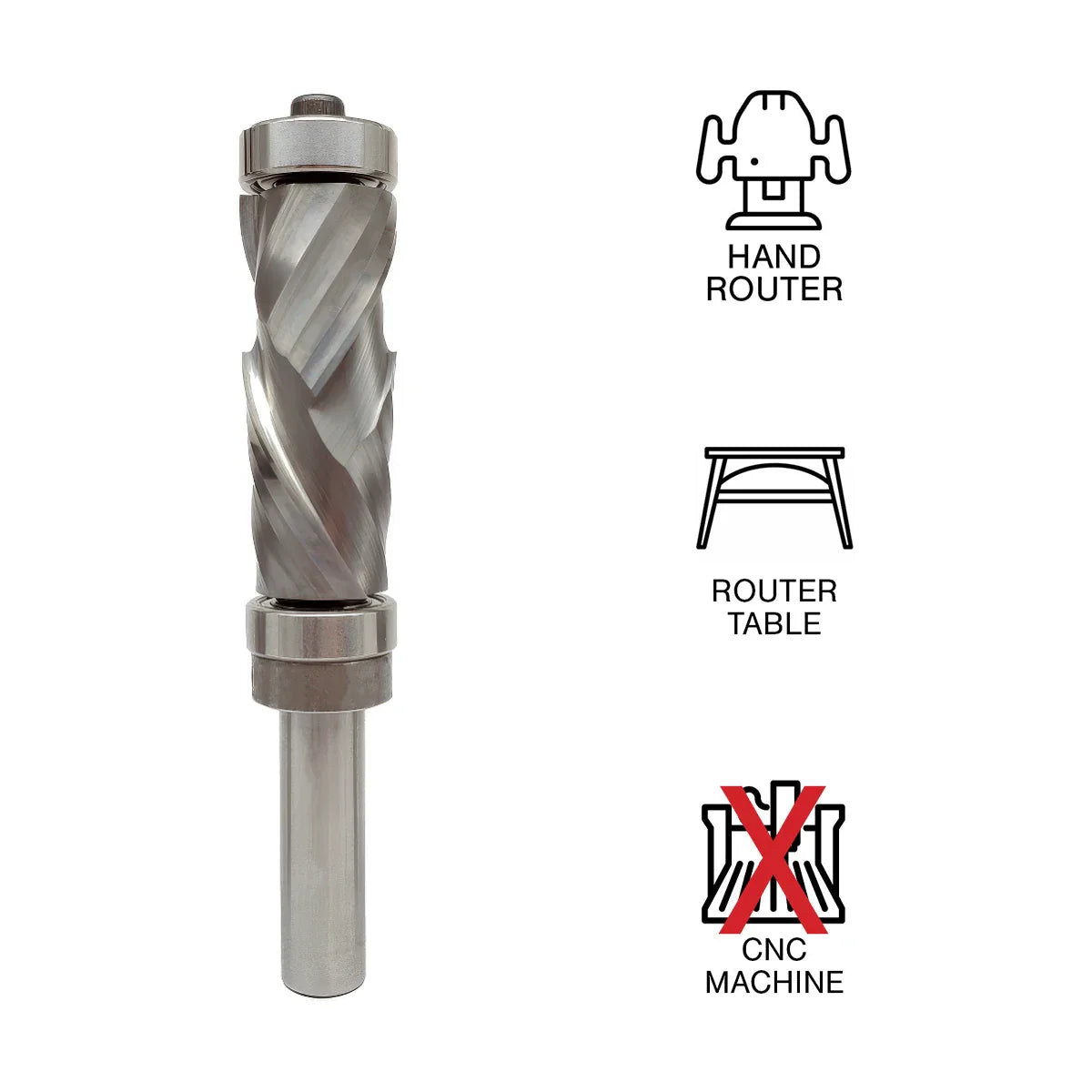

The Ultimate Flush Trim Bits for material up to 2-1/8" thick. The "Ultra-Long ULTIMATE" Flush Trim Bit has a compression design to provide the best performance and quality found on our Classic Ultimate Bits on thicker stock. These bits leave a crisp, clean edge on both the top and bottom edge of the work piece, even in difficult wood grains. Having a top and bottom bearing gives you the opportunity of working with either a top or bottom template. For best performance, use the shortest cut length needed for the application.
-
Tool Specs: Solid carbide, top/bottom bearing, 2+2 compression spiral with 7/8" cutting diameter, 1/2" shank, 2-1/8" cutting length, and 4-3/4" overall for use in routers with a 1/2" collet.
-
Construction: These heavy-duty solid carbide bits are made from premium micro-grain carbide and induction brazed onto a 1/2" steel shank for enhanced strength and performance.
- Cutting Head: The 7/8" diameter provides a broader sweep of the cutting edge than smaller bits, allowing for shearing of wood fibers and perfectly smooth cuts even in difficult wood grain.
-
Bearings: Available in flush trim and double bearing options in 1-3/8", 1-5/8", and 2-1/8" cutting lengths for versatile and precise routing applications.
-
Compression Spiral: Designed with up cut and down cut edges, this tools performs like two separate bits, providing the many benefits of both styles in one tool.
-
Use: For use in hand routers and router tables. Choose a cutting length that closely matches the material thickness for best performance.
Recommended RPM: 12,000-14,000 (max 16,000)
For Cutting
- Natural Woods
- Composite Woods
9213
