Laguna Tools

X|Flux: 10HP

Name: X|Flux: 10HP
Brand: Laguna Tools
SKU: MDCXF102203
Price: 21899.00 CAD
Availability: OutOfStock

SKU: SKU:MDCXF102203

Overview: The X|Flux dust collector is your solution for high filtration efficiency in large shops and enclosed areas. Features: Phase: 3 Motor HP: 10 HP Amps: 28 Amps Voltage: 220V...
Full description below

$21,899.00

Sale Sold out New

Special Order Item

Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca

Quantity

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

View full details

Overview:
Specifications

Overview:

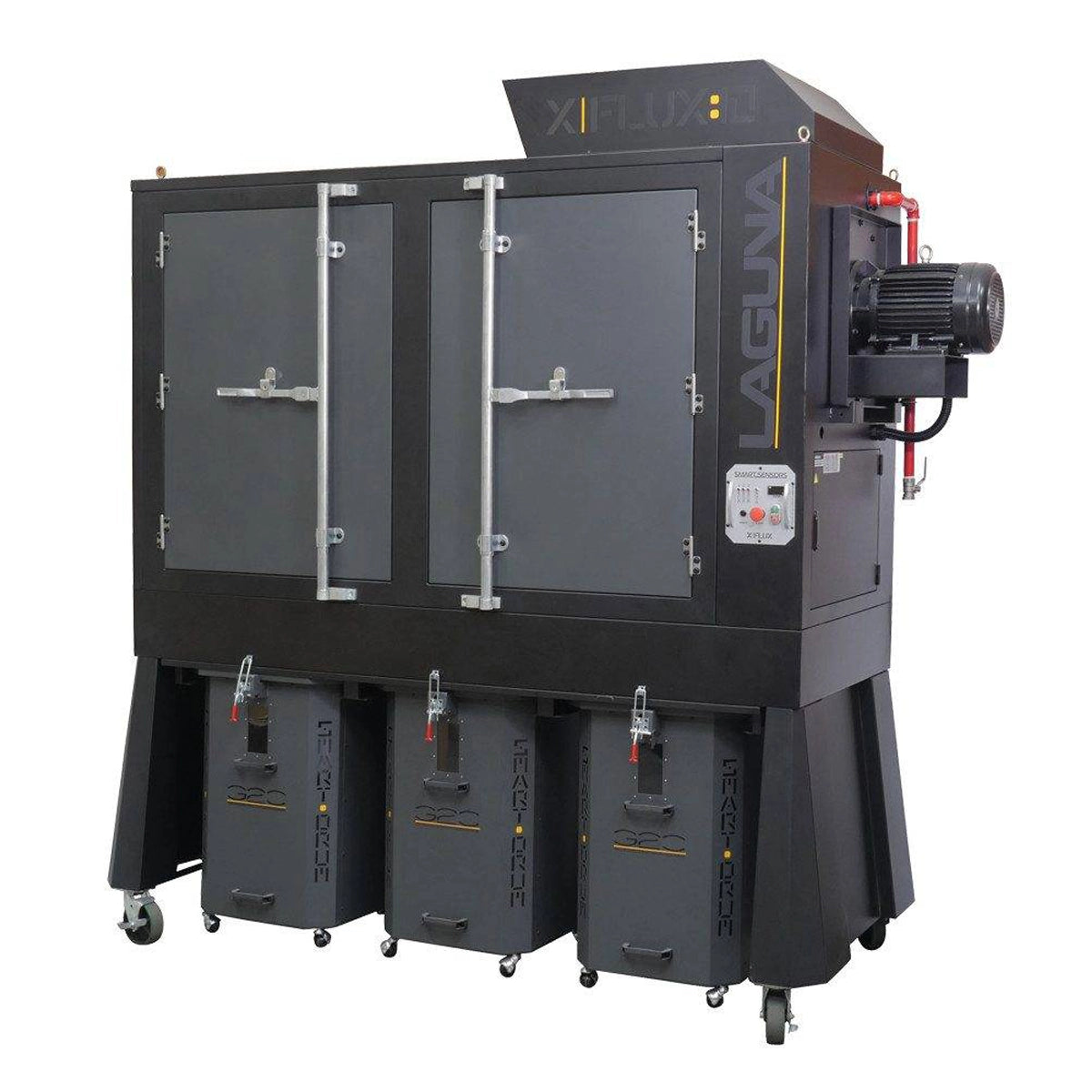

The X|Flux dust collector is your solution for high filtration efficiency in large shops and enclosed areas.

Features:

Specifications

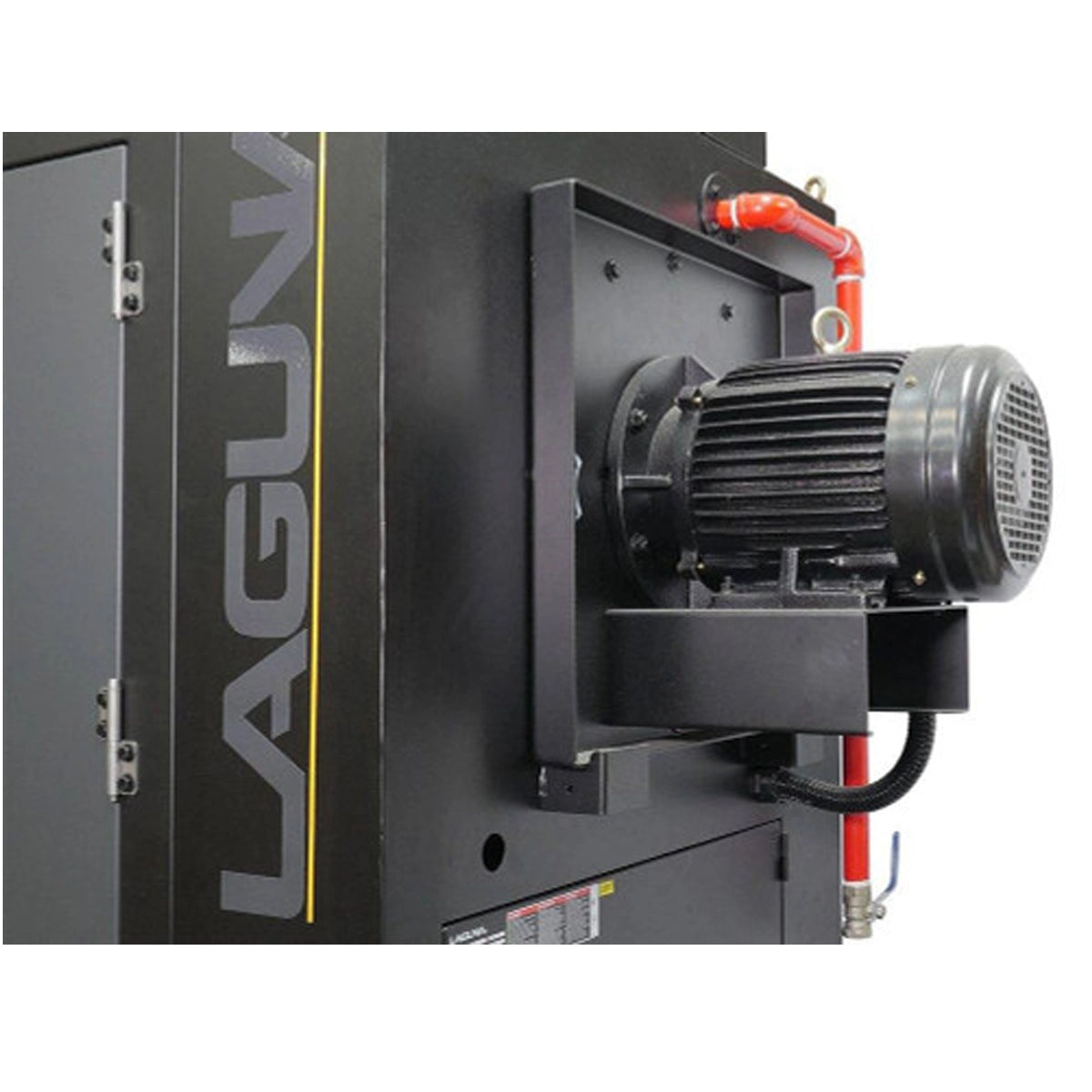

Motor:	10HP, 220V, 60Hz, 28A 3-Phase
R.P.M.	3450
Hand held remote control	High Frequency

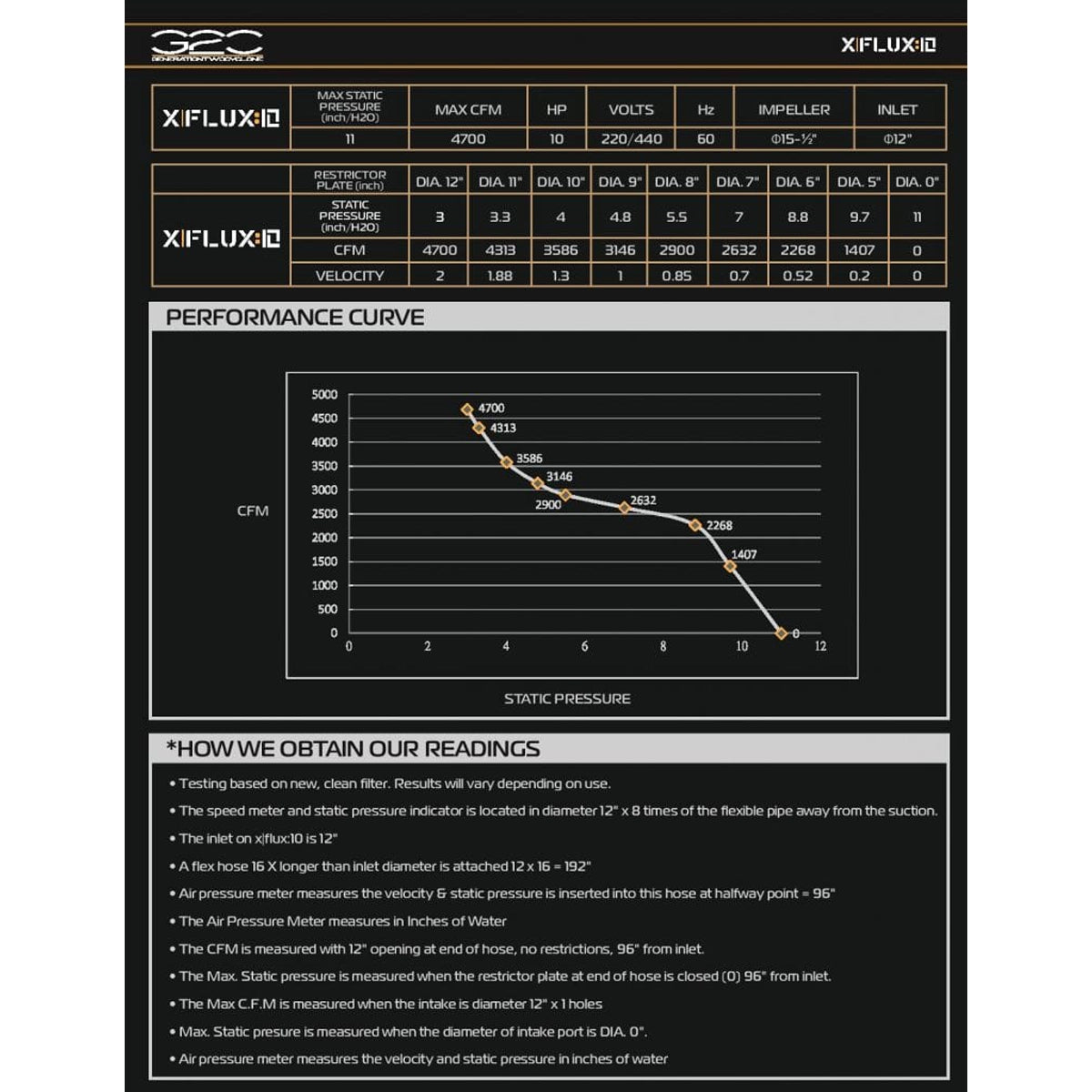

Air Volume	8070 CFM
Max Static Pressure (inches of water)	11"
Impeller Fan Type/Size/Material	Radial Fin/15 1/2"/Steel
Inlet Diameters	12"
Drum Capacity	54 Gal x 3

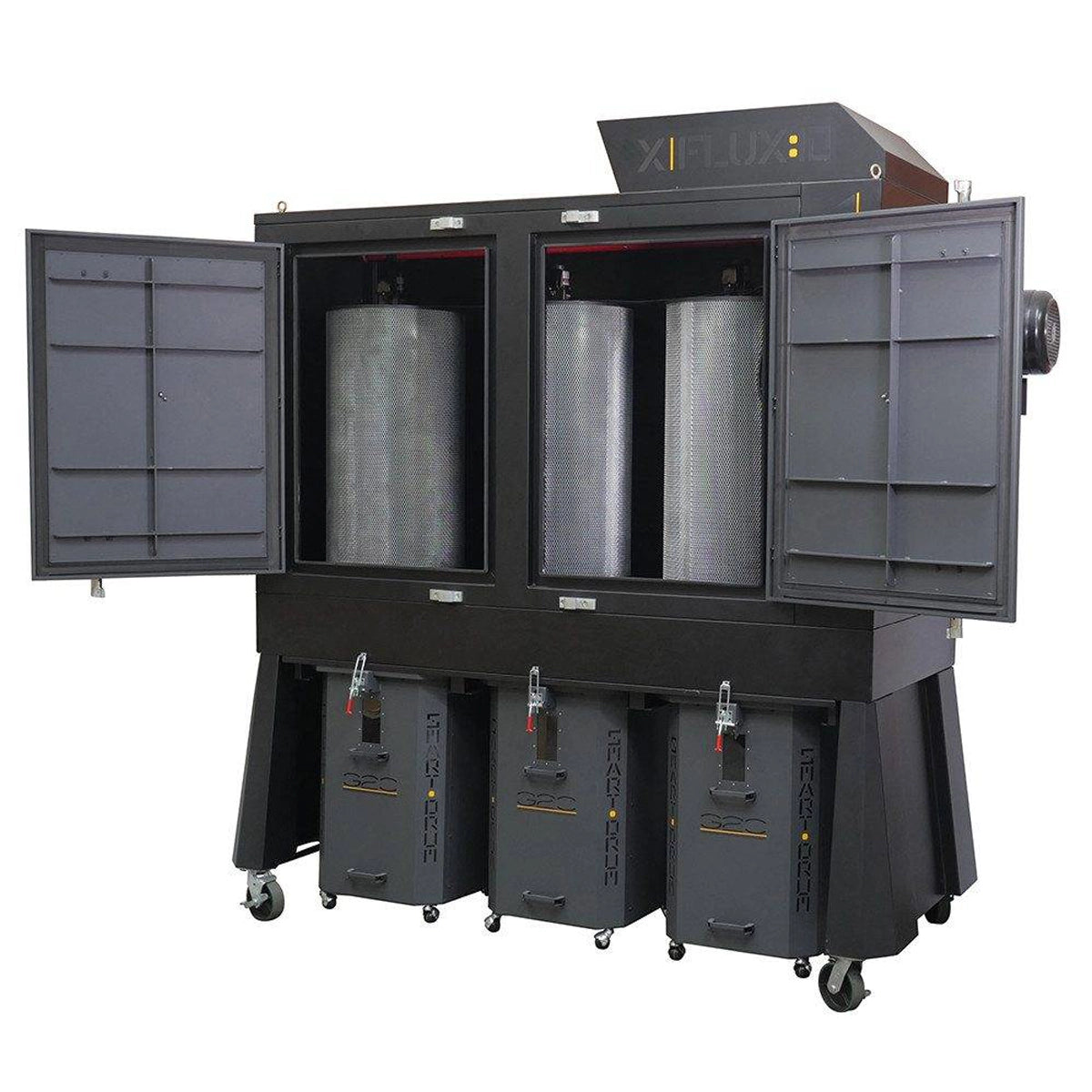

Filter Type	White 1 Micron
Canister cleaning	Timed Auto Clean 2 x 10 Seconds Per Work Hour
Decibel Reading	80dB(A)(@9.8′)
Machine Weight	750 kgs/ 1653 lbs
Shipping Weight	830 kgs/ 1829 lbs

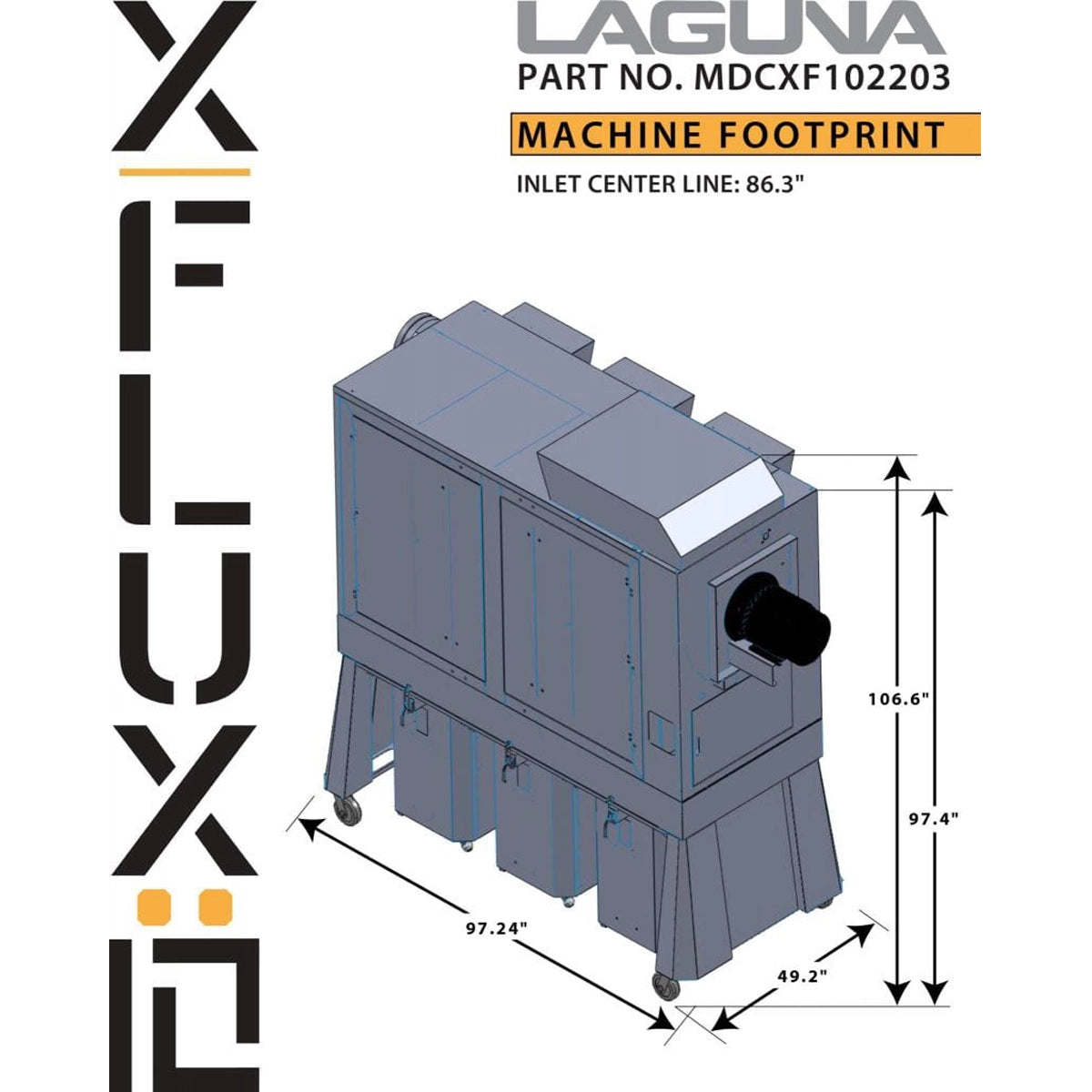

Assembled Dimensions (L x W x H)	104″ x 49″ x 106″
